5.2.9 Protective Contactor Combination K6 (SSK)

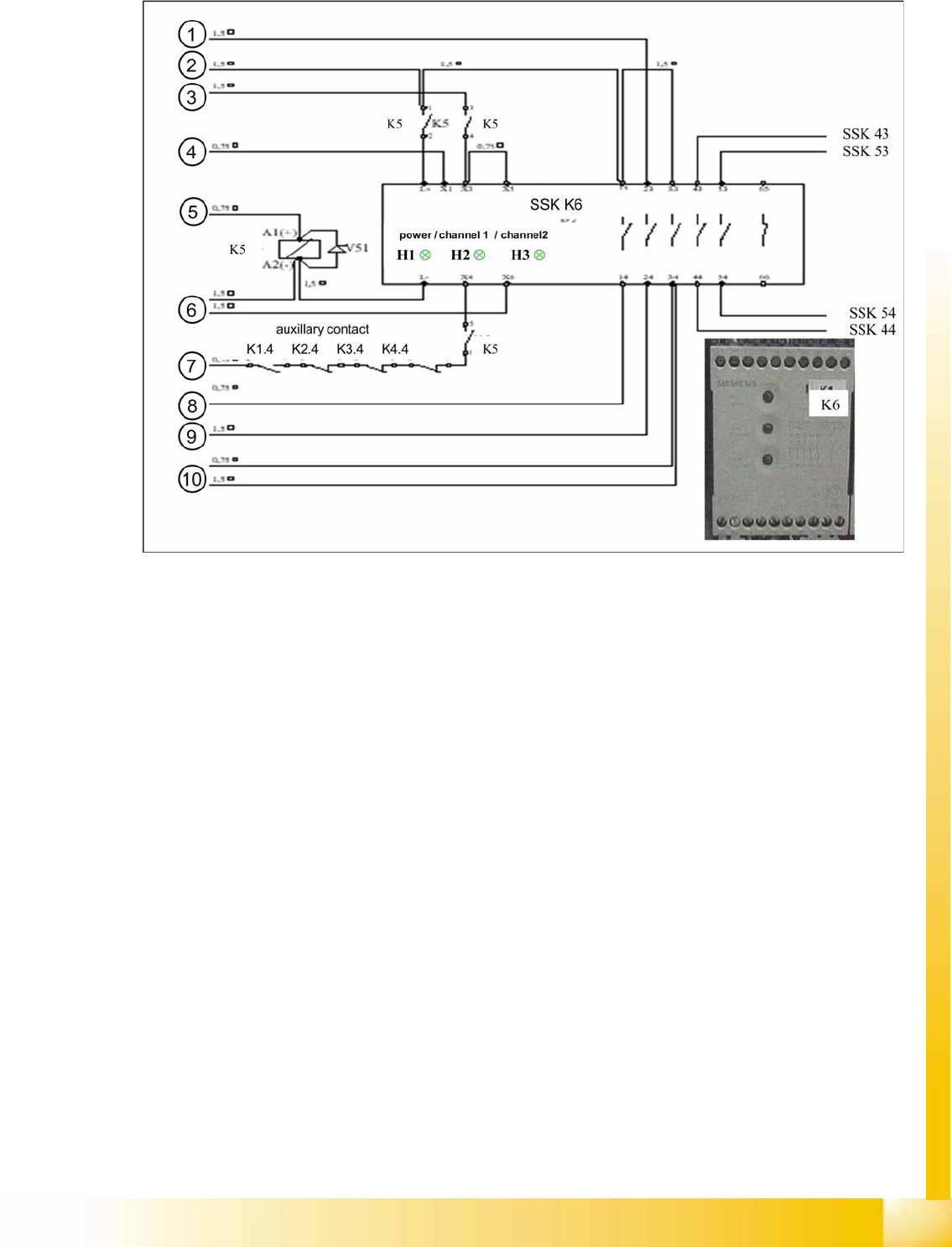

Legend:
1. Power for transport 34 VDC from T2
2. Power 24 VDC input from power supply DC/DC converter.
3. 24 VDC input from emergency STOP circuit
4. Message
READY
to CAN I/O module (SSK is OK.)
5. Software release (24 VDC when start button pressed and SW release signal is given).
6. GND for SSK (X6), from message
Safety loop OK
7. Start button pressed (24 VDC form start button).
8. M_X/Y: 24 VDC from SSK (power for K3 and K4).
9. Power for transport 34 VDC from SSK
10. M_tape cutter: 24 VDC for contactor K2 and power for tape cutter (24 VDC)
5.2.9.1 About SSK K6
Contactor K6 is an industry standard safety combination contactor. Internally it consists of 3 relays which
are configured in a complex fashion to give maximum protection in a fail safe mode. Unfortunately, for
ease of understanding, these internal relays are labeled K1', K2' & K3'. The status of the contactor is
indicated by LEDs labeled as H1, H2 and H3.
When the contactor is in an energized state internal relays K2' and K3' are energized, relay K1' is de-
energized. This status closes the contacts 13 and 14, 23 and 24, 33 and 34.
When this status is achieved, K6 is "ON" and the 3 LEDs H1, H2 and H3 all shine.
Energy and Compressed Air Supply
Power supply Protective Contactor Combination K6 (SSK)
Student Guide (FSE) SIPLACE X Series and X4I
Energy and Compressed Air Supply Edition 01/2009 EN
192
5.2.9.2 How is SSK K6 Energized?
If the covers and the emergency STOP circuit are closed and K5 is deactivated, 24 V will be supplied to
terminals X1, X3 and X4, as soon as the GND is present at contact 6 (X6) - a state triggered by the
message
Safety loop OK
- and the start button has been pressed. This voltage allows K1 to be
energized and when its contacts close, K2 and K3 will energize. As soon as these contacts energize, K1
is de-energized. However K2 and K3 remain energized as their contacts have a self latching facility.
5.2.9.3 Pressing the ON Button
Assuming the ON button is pressed: 24 V is activated and will split into 2 paths.
1. : 24V is activated at the CAN I/O module 1. The signal from this module activates the CAN bus to
notify the machine controller that the ON button has been pressed. This deactivates the message
Press Start Key
.
2. : 24V is present at the power supply main distributor X16_2 and, from here, this signal (start
button) is sent to K1.4 (closed when main switch ON), K2.4 (break contact, NC), K3.4 (break contact,
NC), K4.4 (break contact, NC), K5 (make contact, NO), ending at pin 6 of the SSK. The 24 V is
activated when the following conditions are met:
Condition: When the machine controller gets the signal (1st path)
START BUTTON pressed
, it will set
an output via the CAN I/O module and supply A1 of contactor K5 with 24V (C_Software_On)
So when K5 is energized, the signal from 2nd path will flow to X4 of the SSK.
5.2.9.4 How Does the Protective Contactor Combination (SSK) Latch?
Condition: When K5 is energized, the following will happen:
L+ will get 24 V and will light up the first LED
Since L+ and X1 are internally connected, this 24 V signal will be fed back from X1 to the CAN I/O
module as a
SSK READY
.
The X4 on SSK will have 24 V temporary (only when ON is pressed), but it is enough to energize K1'
internal of the SSK. When K1’ is energized, K2' and K3' will also be energized internally of SSK -
only if X3 and X5 of SSK has 24 V with them.
How does X3 and X5 of SSK get the 24V?
If all covers are closed, the changeover tables are docked and the STOP button is not pressed, there
will be 24V present at K5 pin 3 and 4 via the emergency STOP circuit and from there at X3 and X5
of the SSK.
24V voltage on the X14 and X34 of the SSK (protective contactor combination)
When K2' and K3' are latched inside the SSK, pin 34 of SSK will have 24 V. Main task of them is to
power the tape cutter and to energize K2. (switching through of U, V, W of X/Y axes)
When K2’ and K3’ are latched inside the SSK, pin 14 of SSK will have 24 V. Main task of it is to
energize K3 and K4 (with a slight delay).
Energy and Compressed Air Supply
Various Signals Power supply
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Energy and Compressed Air Supply
193
5.2.10 Various Signals
5.2.10.1 Software Release (Software Enabled)
The software release signal is given by the CAN I/O card when the machine controller software is fully
booted. This means that not only must the machine controller software be booted but communication
must be established to the Vision system, axis boards, CAN BUS, station computer and line computer
(unless it is operating in stand-alone mode). When the start button is pressed, the CAN I/O module
issues the 24V output signal and 24V is present K5, contact A1.
If the emergency STOP circuit is interrupted, the software release will not be issued.

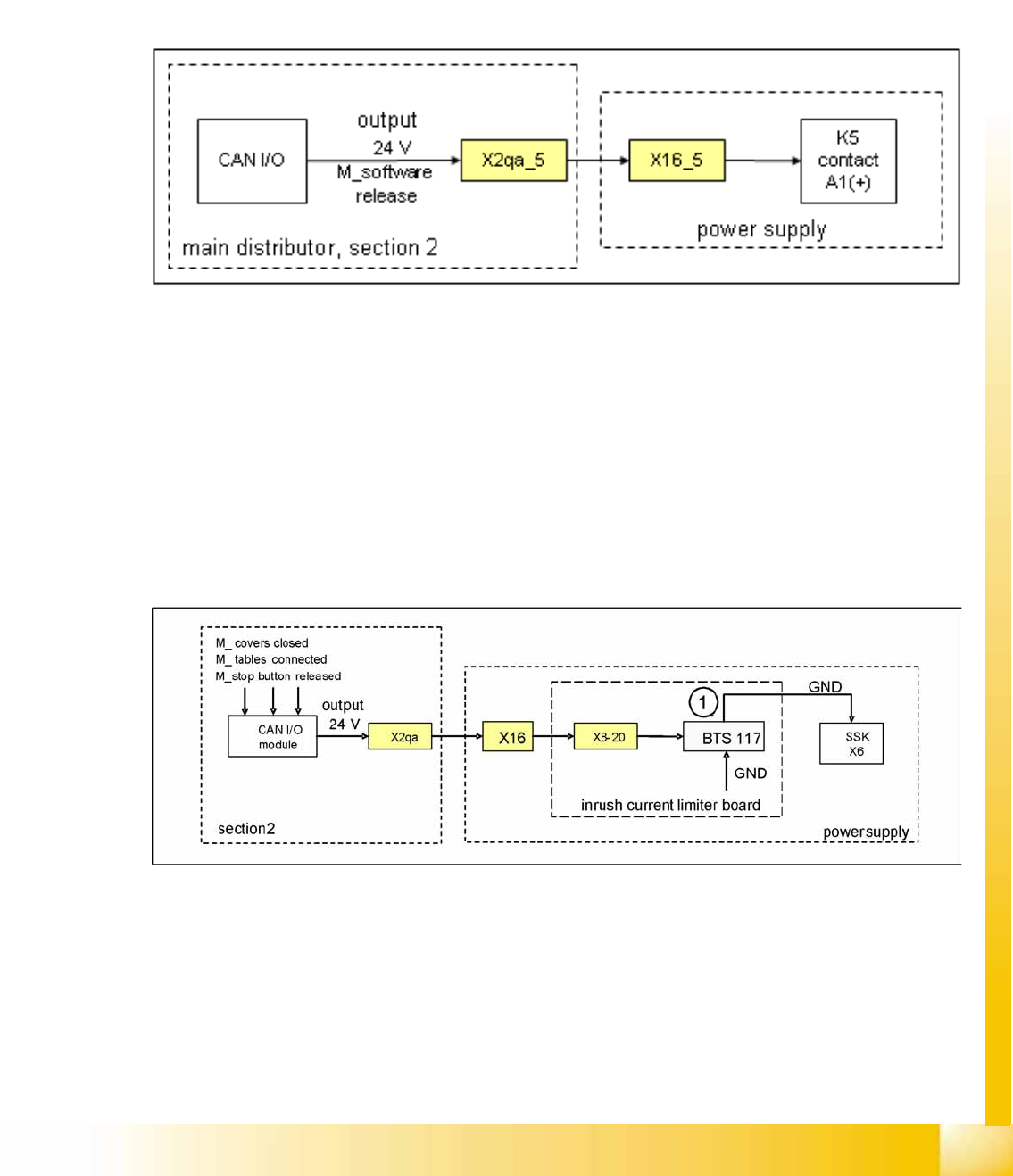

5-19: Software release signal
5.2.10.2 OK Signal Safety Loop
The message
Safety loop OK
will be emitted by the CAN I/O module, if the following conditions have
been fulfilled:
All covers closed
All component tables connected
All emergency STOP buttons released
Emergency STOP circuit closed
The 24 V output from the CAN I/O module is present at the main voltage supply (inrush current limitation
board) and GND is switched through to contact 6.
5-20: Signal safety loop
Legend:
1. BTS 117: voltage switch for GND
This signal is transmitted to the power supply X8-20 and connects GND to SSK, contact X6.
