C&P20A

Overview Maintenance

Student Guide (FSE) SIPLACE X Series and X4I

C&P20A Edition 01/2009 EN

250

7.2.4 Maintenance

7.2.5 Compressed Air Supply to the C&P20A

ATTENTION:

X Please refer to and observe the instructions in the service guide for all maintenance and

service work on the C&P20A heads.

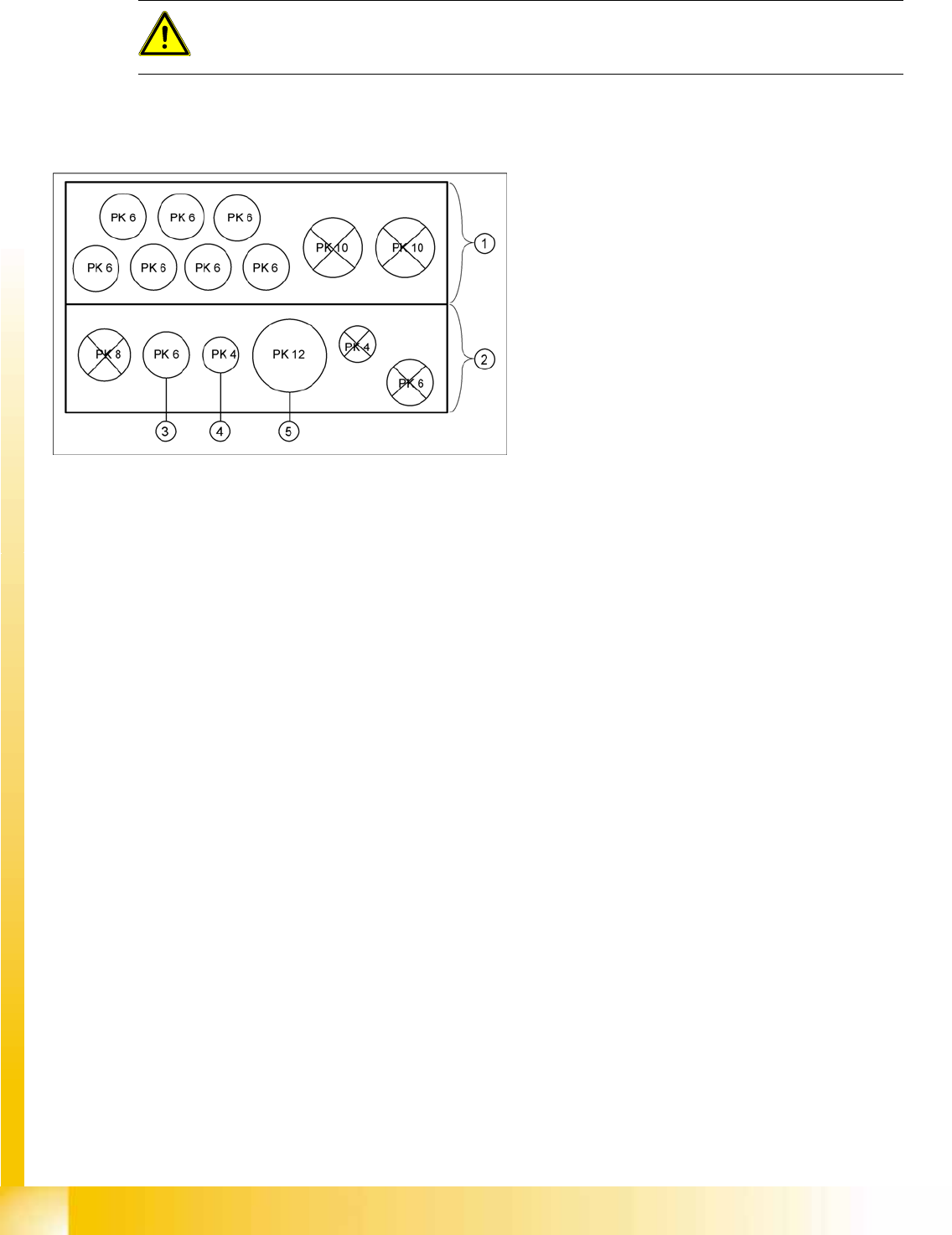

7-5: C&P20A compressed air distributor

Legend

1. Rear view of the pneumatic distributor

Input:

- 7 fold pneumatic hose (PK 6)

- 2 fold pneumatic hose

- Optional vacuum pump (PK 10)

2. Front view of the pneumatic distributor

Output:

C&P20 head

3. Pressure Control Valve

4. Return cylinder

5. Hold circuit

C&P20A

Compressed Air Supply to the C&P20A Overview

Student Guide (FSE) SIPLACE X Series and X4I

Edition 01/2009 EN C&P20A

251

7.2.5.1 Overview of Air Blast Supply

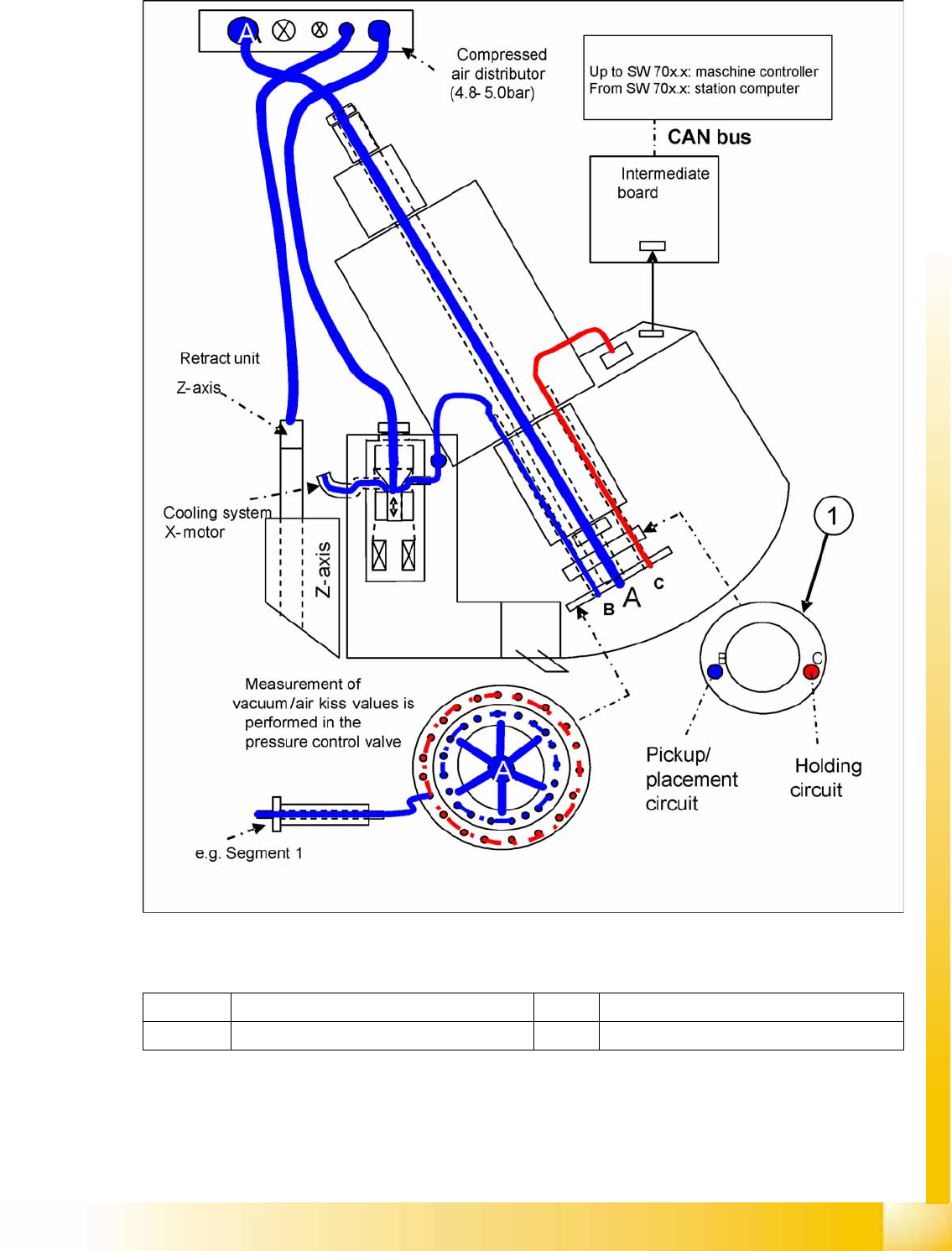

7-6: General overview of the air blast function

Legend

RED Vacuum 1 Smoothed distributor disc [03008286-0X]

BLUE Compressed air (air blast)

C&P20A

Overview Compressed Air Supply to the C&P20A

Student Guide (FSE) SIPLACE X Series and X4I

C&P20A Edition 01/2009 EN

252

7.2.5.2 Overview of Vacuum Supply

7-7: General overview of the vacuum function

Legend

RED Vacuum BLUE Compressed air (air blast)
