Operational Safety Warning Labels Warning Label W205 on the Tap e Cutter S tudent Guide (FSE) SI PL ACE X Series and X4I Operational Safety Edition 01/2009 EN 30 2.2.3.3 W arning Label W205 on the W aste Slide (X-Series)…
Operational Safety
Warning Label W205 on the Tape Cutter Warning Labels
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Operational Safety
29
2.2.3.2 Warning Label W205 on the Underside of the Component Trolley Docking Unit (HF-Series)

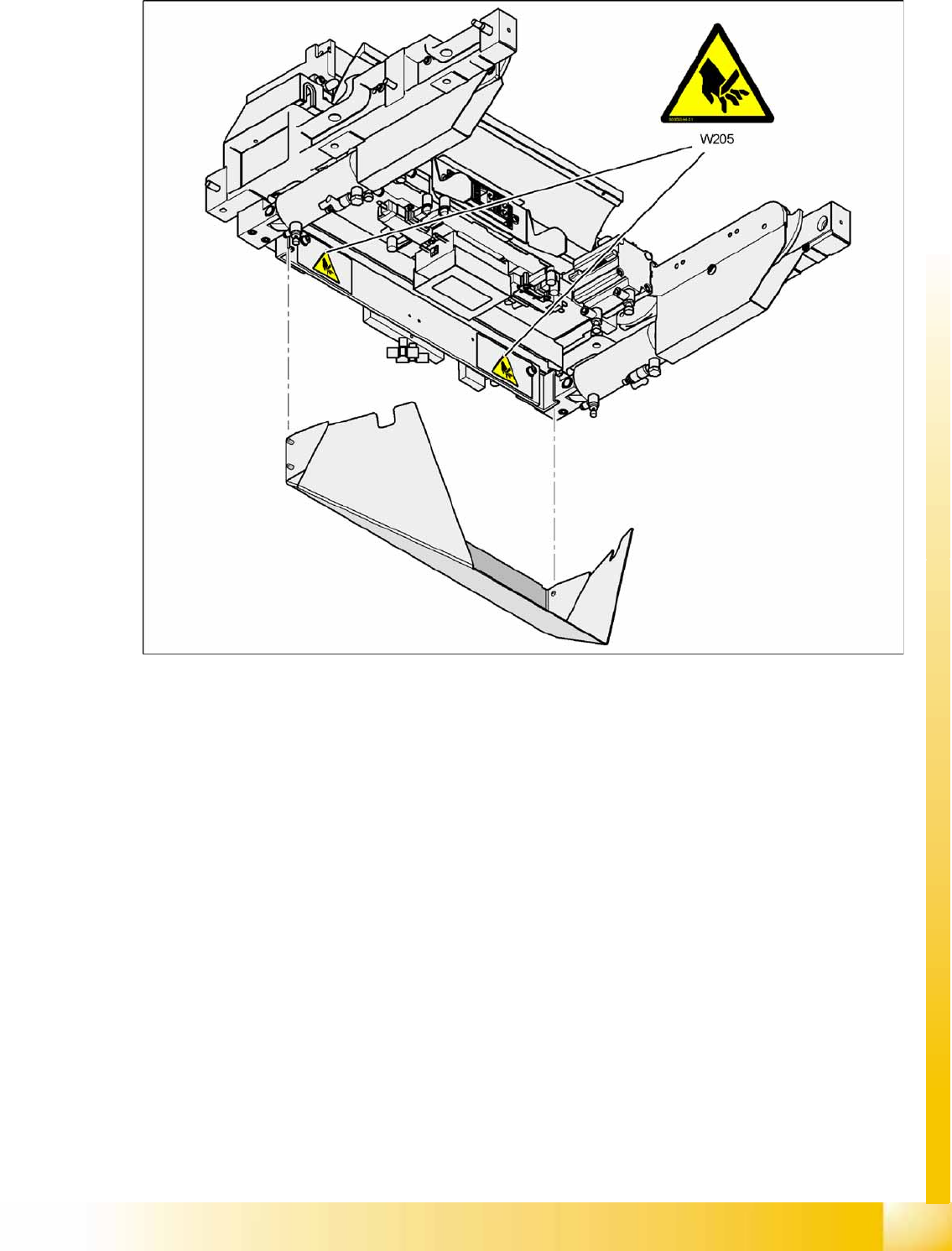

2-5: Warning label W205 on the bottom of the tape cutter
Operational Safety
Warning Labels Warning Label W205 on the Tape Cutter
Student Guide (FSE) SIPLACE X Series and X4I
Operational Safety Edition 01/2009 EN
30
2.2.3.3 Warning Label W205 on the Waste Slide (X-Series)
2-6: Warning label W205 on the waste slide
NOTE:
The position of the waste slide is shown in Section (2.2.3.4 Warning label W205 on the cross
bar below the tape cutter
J
31 ) .
Operational Safety
Warning Label W205 on the Tape Cutter Warning Labels
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Operational Safety
31
2.2.3.4 Warning label W205 on the cross bar below the tape cutter
2-7: Warning label W205 on the cross bar below the tape cutter
Legend
W205, article no. 03009344-01 on the cross bars (quantity per machine: 4)
1 Cross bar 3 Empty tape duct
2 Tape cutter 4 Waste slide
