8.2.7.4 Return unit
Retract Unit Functions
At zero current, the bearing friction of the Z axis is not sufficient to protect the axis from falling down. A
pneumatic return system has been installed to protect the Z axis should the gantry be moved when the
machine is switched off. This return unit keeps the Z axis in the safe, upper position during zero current.
8.2.7.5 Component sensor
Each CPP head is fitted with a component sensor in the pickup/place position, as a standard. This
component sensor monitors the presence and/or component height after pickup and before placement.
The sensor is fixed to the head with two screws and can be replaced as a complete unit during service
work.

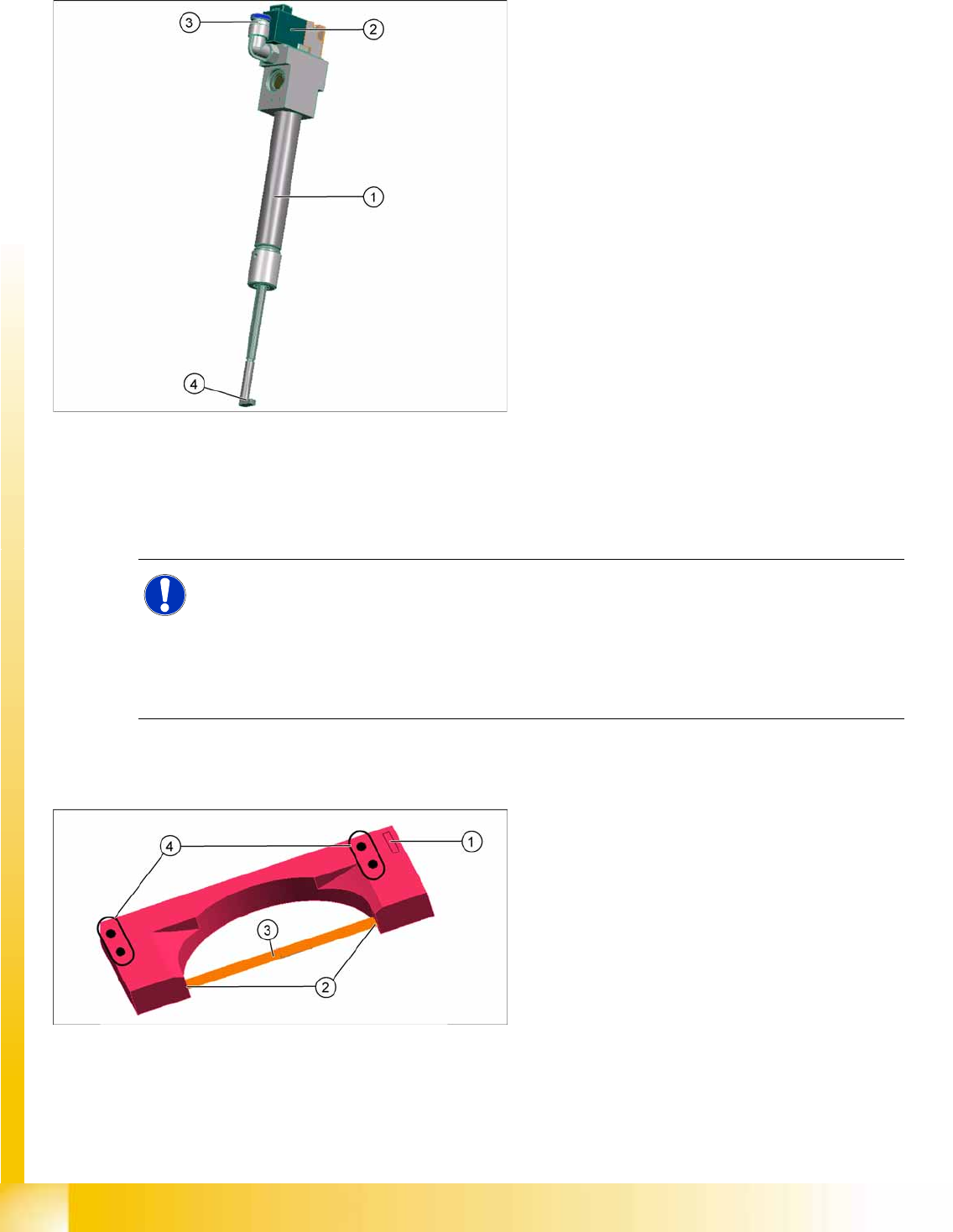

Legend
1. Pneumatic cylinder
2. Solenoid valve
3. Compressed air connection
4. Z axis driver
The return unit is fixed to the Z axis. This return
unit keeps the Z axis in the safe, upper position
during zero current. This ensures that the
placement head is not damaged when the
machine is switched off or in the event of a power
cut.
The return unit is not a spare part and can only be
replaced together with the complete front plate of
the head.
NOTE:
The Z axis control system is designed to ensure that, should the machine power supply fail (or
be switched off), there is always enough power temporarily stored by the Z motor servo unit and
axis controller board to move the Z axis to the upper position.
Power failure is recognized by the issuance of a "Power fail" signal. This "Power fail" signal
enables the relevant function (upwards movement of Z axis and activation of the return unit) on
the axis controller board.
Legend
1. Power/data supply connector
2. Transmitter and receiver unit
3. Laser beam
4. Fixture to head casing
(2x centering pins, 2x screws)
Collect, Pick and Place Head (CPP)
Overview of Parts Overview
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Collect, Pick and Place Head (CPP)
307
Component Sensor Functions
Pickup Process:
When the Z axis moves downwards, the nozzle interrupts the IR beam. At this exact moment, this Z axis
position is recorded and compared to the reference value, from the height reference run, or from this
segment after placement. This determines whether there is still a component on the nozzle or not. If the
Z axis position indicates that there is a component on the nozzle, the Z axis will be immediately stopped.
An error message will appear or the component will be rejected and added to the repair cycle as not
placed.
When the Z axis moves upwards again, the laser beam is released and the Z position recorded. Based
on the Z position during downwards movement, the system can now determine the presence and height
of a component.
Placement Process:
During the placement process, the system checks whether the component is at the nozzle (Z downwards
movement) or whether placement has been performed on the component (Z upwards movement). As a
precaution, these Z positions are compared to those from the pickup procedure.
This ensures maximum pickup and placement reliability.

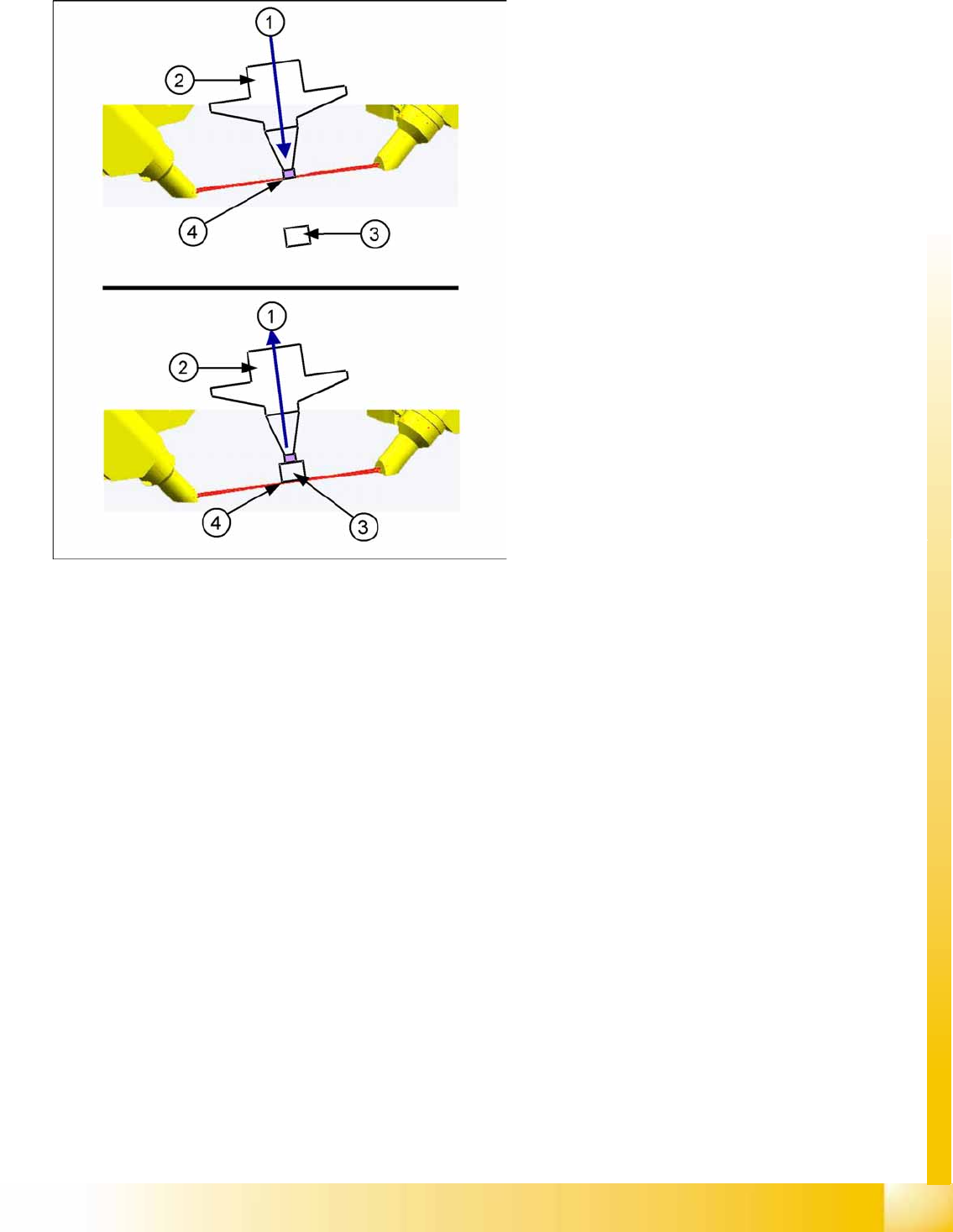

Legend
1. Downwards (top diagram) or upwards (bottom
diagram) movement
2. Nozzle
3. Component
4. Read out Z position, if the IR beam is
interrupted (top diagram) or has been released
again (bottom diagram).
The component sensor signal is directly linked to
the axis controller (measurement system) of the Z
axis. This enables you to read out the Z position
during upwards and downwards movement.
Collect, Pick and Place Head (CPP)
Overview Overview of Parts
Student Guide (FSE) SIPLACE X Series and X4I
Collect, Pick and Place Head (CPP) Edition 01/2009 EN
308
8.2.7.6 Hold circuit
8.2.7.7 Star
The star consists of the star carrier, on which the 12 DP drives are located, the control board (Single
Core Solution), the valve terminal and the E/D transformer.
The holding circuit is in the center of the star.
The complete unit is fixed to the rotor of the star motor.

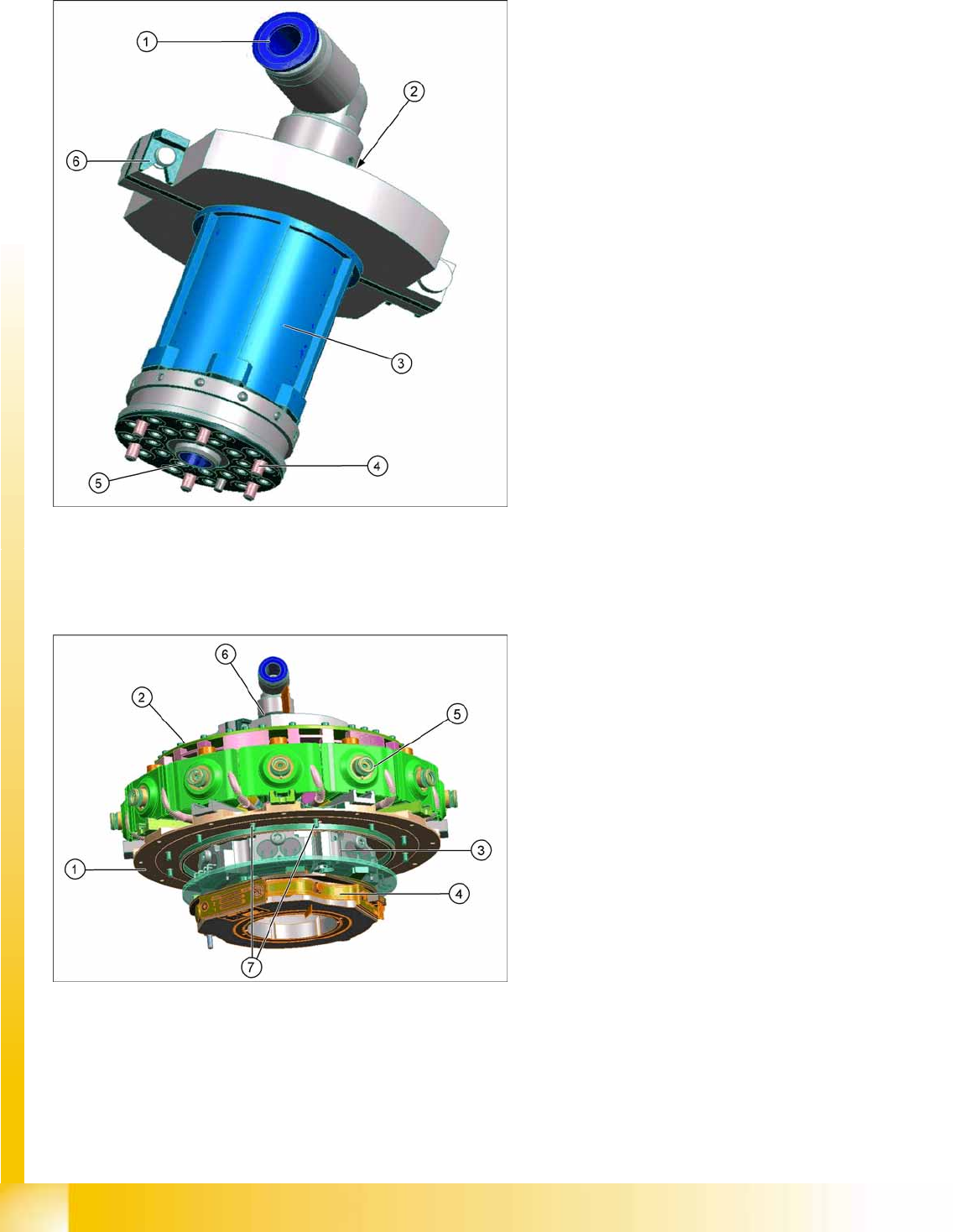

Legend
1. Compressed air inlet 4.5 bar
2. Two part silencer for exhaust air from the
venturi nozzles and fixture for the silencer (6)
3. Casing with venturi nozzles
4. Fixture of holding circuit to star carrier
5. Inner drillings: Venturi nozzle inlet
(compressed air)
Outer drillings: Vacuum to the segments.
The holding circuit (4) is fixed with six screws to
the star carrier. It consists of a venturi block with
12 small venturi nozzles (5), a silencer (2) and a
compressed air connection (1).
The compressed air inlet feeds the compressed air
(min. 4.5 bar) via the valves to the venturi nozzles.
Each venturi nozzle supplies one segment with
vacuum in the hold circuit.
If a segment is in the pickup/placement circuit, the
holding circuit vacuum is increased by the
pressure control valve (for pickup) or eliminated
via air blast (for placement).
Legend
1. Star carrier
2. Single Core Solution
3. Valve terminal
4. E/D transformer
5. DP drives
6. Holding circuit in the middle of the star
7. Fixture on rotor of star motor
