Operational Safety Warning Labels Warning and Information Labels on the Power Supply Unit S tudent Guide (FSE) SI PL ACE X Series and X4I Operational Safety Edition 01/2009 EN 34 2.2.6 W arning and Information Labels on …
Operational Safety
Warning label W206 and W1 on the power supply unit Warning Labels
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Operational Safety
33
2.2.5 Warning label W206 and W1 on the power supply unit

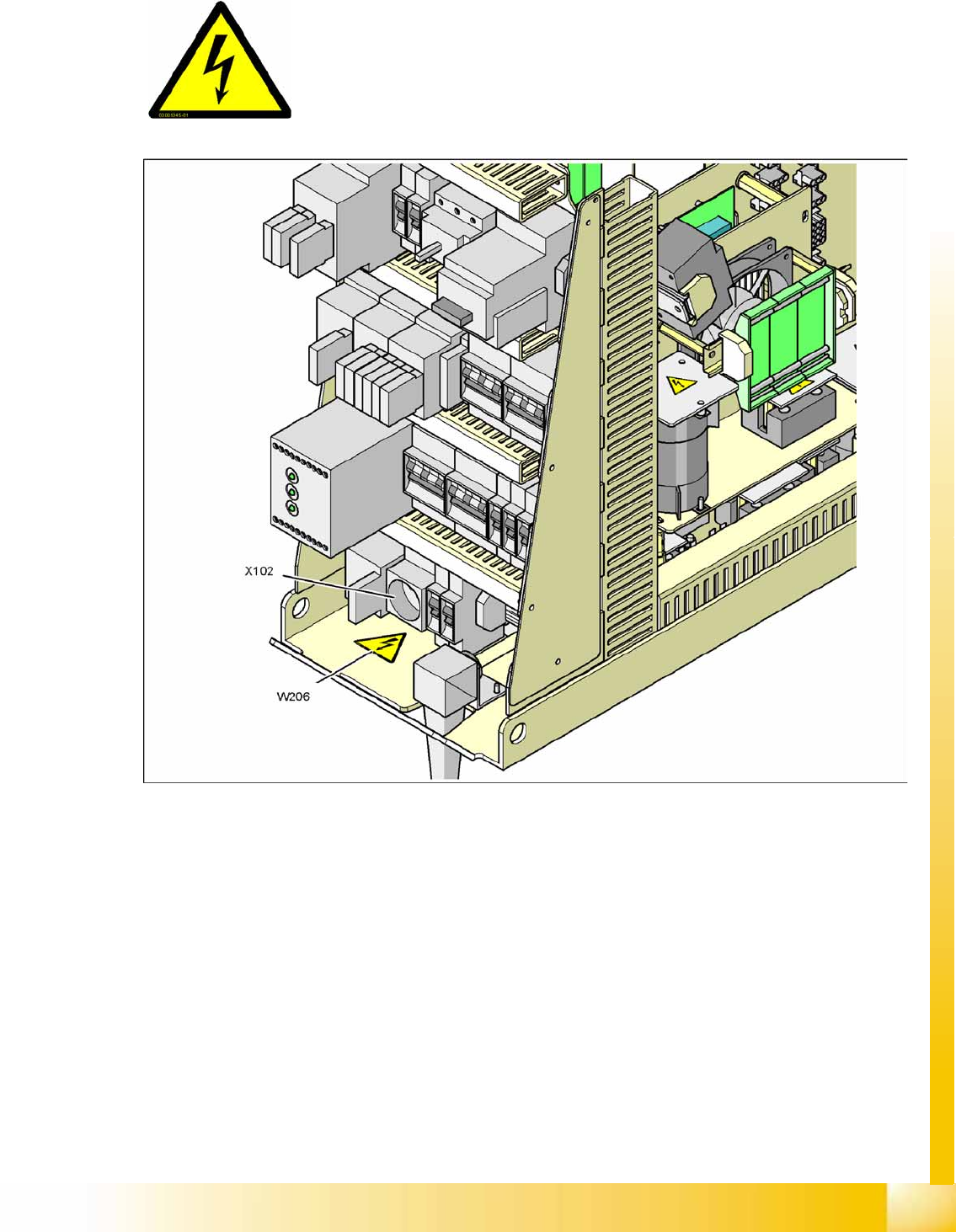

2-9: Warning label W206 and W1 on the power supply unit
W206, article no. 03009345-01
W, warning label on the line filter and on the covers of the rectifier and electrolytic capacitor
W1, warning label on the main switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Item no. 03009345-01 (quantity per machine: 2) and W1
Operational Safety
Warning Labels Warning and Information Labels on the Power Supply Unit
Student Guide (FSE) SIPLACE X Series and X4I
Operational Safety Edition 01/2009 EN
34
2.2.6 Warning and Information Labels on the Power Supply Unit

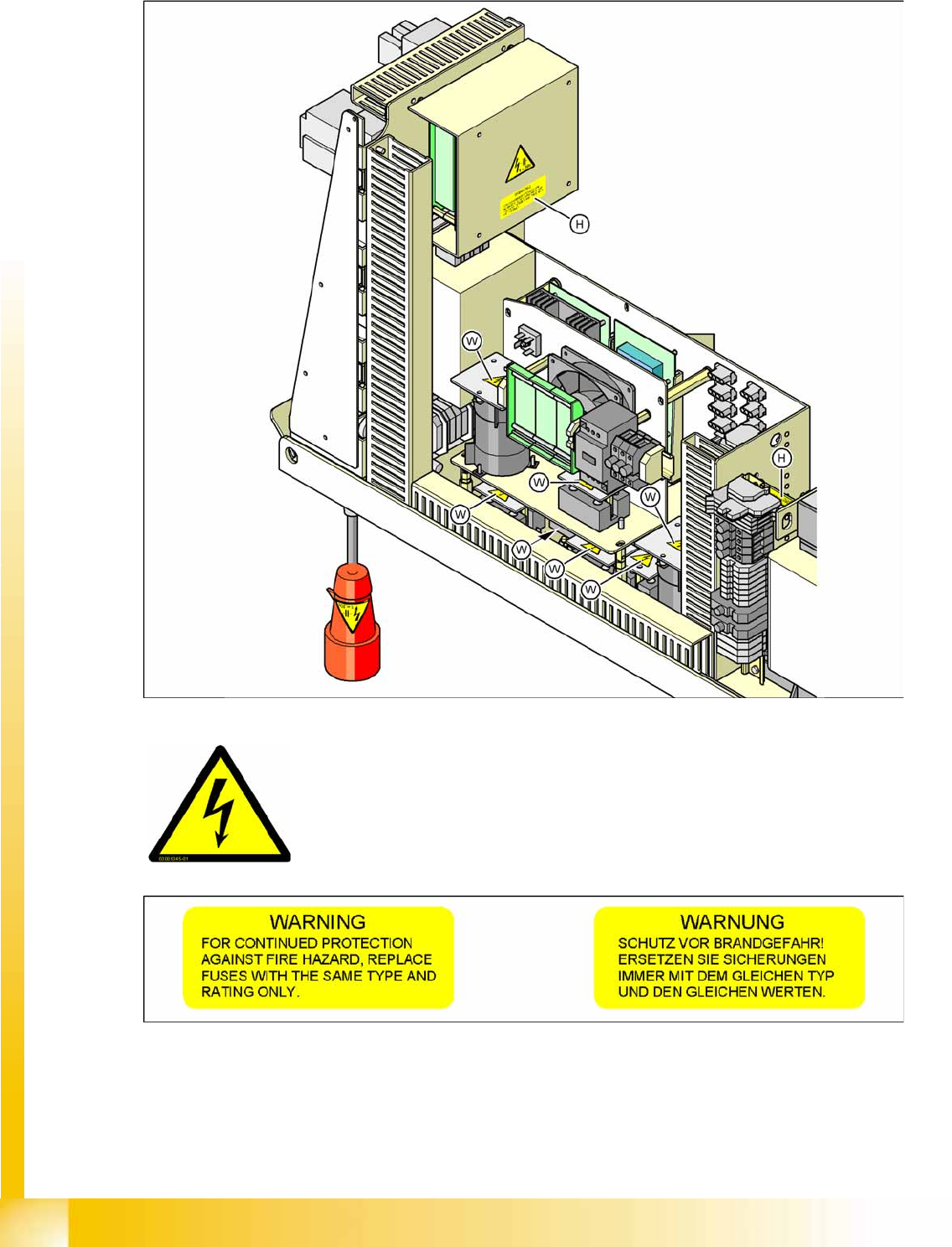

2-10: Warning labels on the power supply unit
2-11: Information label H (quantity per power supply: 2)
Warning label W
(quantity per power supply unit: 8)
Operational Safety
Warning Label W207 Warning Labels
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Operational Safety
35
2.2.7 Warning Label W207
2.2.7.1 Warning Label W207 on the Axis Unit
2-12: Warning label W207 on the Macrolon™ panel of the axis unit
W207, article no. [03009346-01]
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the capacitors
have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Item no. 03009346-01 (quantity per machine: 2 for the X2, 3 for the X3/X4)
