8.6.1 Nozzle Magazines
8.6.1.1 Structure of 20xx Nozzle Magazines
8.6.1.2 Structure of 28xx Nozzle Magazines
Legend
1. 20xx magazine (CPP)
2. 28xx magazine (CPP)
3. 10xx magazine (C&P20A)
4. Magazine query switch 1, 2 and 3
12 garages per magazine
Antirotation guard for nozzles
Special nozzles up to a max. length of
16.5 mm
Two fiducials per magazine
Legend
1. Five garages for nozzles with a length of up to
12.5 mm (garages 1, 5, 6, 8, 9)
2. Four garages for special nozzles with a length
of up to 16.5 mm (garages 2, 3, 4, 7)
3. Level surface – this is used by special nozzles
for orientation purposes, when they are
nonsymmetrical. The standard 28xx nozzles
are symmetrical.
Antirotation guard for nozzles
Two fiducials per magazine
Collect, Pick and Place Head (CPP)
Nozzle Changer (NC) Nozzle Stations
Student Guide (FSE) SIPLACE X Series and X4I
Collect, Pick and Place Head (CPP) Edition 01/2009 EN
342
8.6.2 Nozzle Stations
8.6.2.1 Universal Nozzle Station for X Series (X2, X3, X4)
Nozzle station
The C&P20A nozzle station has been extended to include nozzle types for the CPP head:
Reject station for C&P20A and CPP nozzles
Take off for 20xx nozzles
Take off for 28xx nozzles
Reject bin
Components and nozzles can be rejected into the following reject bin:
Reject channel for component size: Up to 6x6 mm
Reject bin in the nozzle station:
– All nozzle types (10xx, 20xx and 28xx nozzles)
– Component size: 6x6 to 27x27 mm
Reject bin together with stationary camera
– Component size: Larger than 27x27 mm
8.6.2.2 Nozzle Stations for X4I

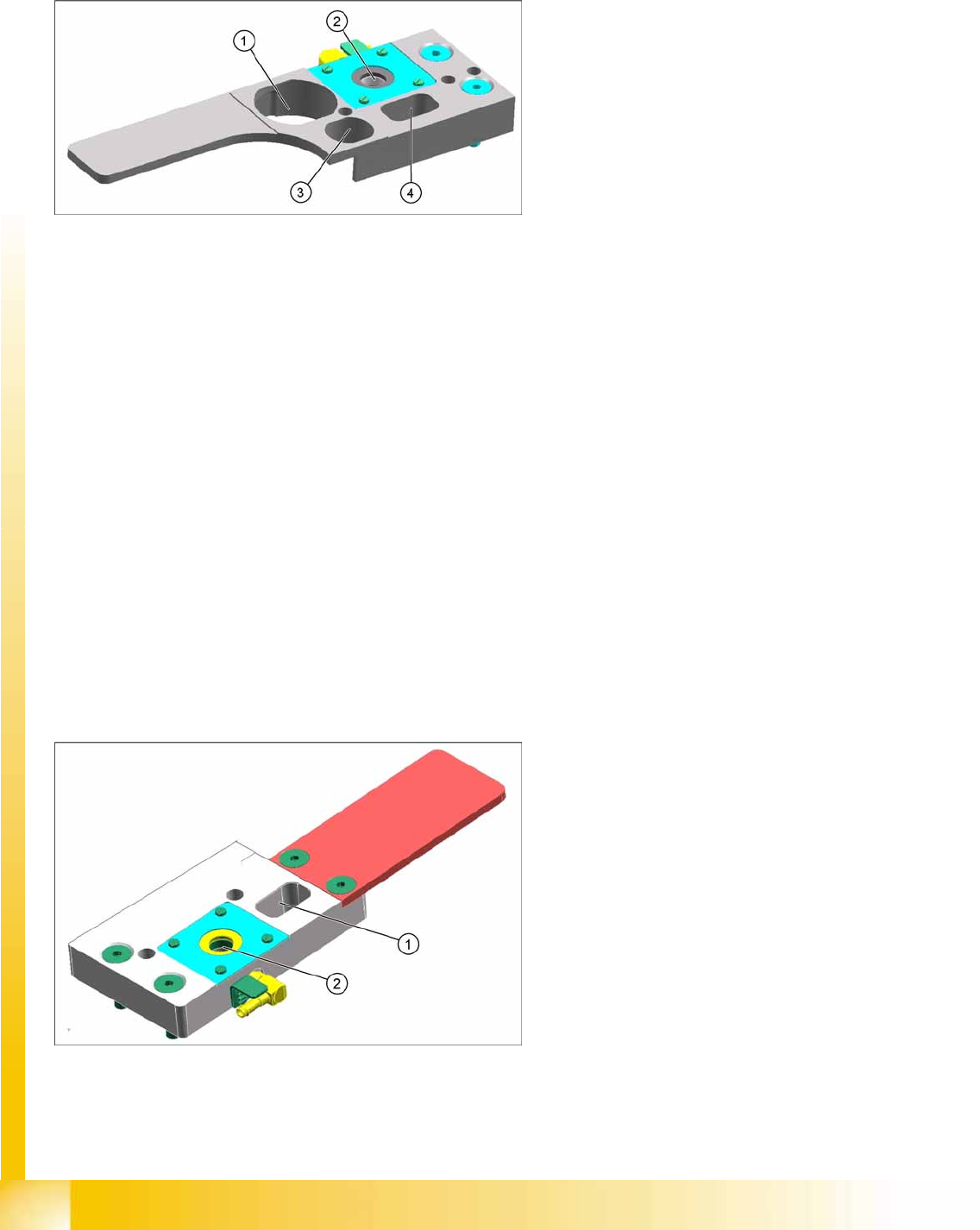

Nozzle Station X4I for C&P20A Head
Legend
1. Take off for 28xx nozzles
2. Reject station for C&P20A and CPP nozzles
3. Take off for 20xx nozzles
4. Take off for 10xx nozzles
Legend
1. Take off for 10xx nozzles
2. Reject station for C&P20A nozzles
Collect, Pick and Place Head (CPP)
Nozzle types Nozzle Changer (NC)
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Collect, Pick and Place Head (CPP)
343
Nozzle Station X4I for CPP Head
8.6.3 Nozzle types
The wide component spectrum available for the CPP head means that two different nozzle series are
needed: 20xx and 28xx.
Legend
1. Take off for 20xx nozzles
2. Take off for 28xx nozzles
3. Reject station for CPP nozzles
Nozzle type Component types Comments
2003 0402
2004 0603, 0805, 1206
2005 01005
2006 0201
2007 0402, 0603
2014 0603, 0805, 1206
2020 PLCC Height: Smaller than 0.75 mm
2021 PLCC Height: Smaller than 4.75 mm
2032 Mini meif, diodes
2033 1206, tantal
2034 Maxi melf, diodes
2035 Tantal C, SO
2036 Mini melf, diodes
2037 SO
2038 Al. Kond.
2039 Al. Kond.
2057 Calibration nozzle
2817 SOX Height: Larger than 0.75 mm, smaller than 4.5 mm
2820 PLCC
2821 PLCC Height: Larger than 4.25 mm, smaller than 8.25 mm
