Collect, Pick and Place Head (CPP)
Placing Components Room for Your Sketches and Notes
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Collect, Pick and Place Head (CPP)
347
8.8 Room for Your Sketches and Notes
Collect, Pick and Place Head (CPP)
Room for Your Sketches and Notes Placing Components
Student Guide (FSE) SIPLACE X Series and X4I
Collect, Pick and Place Head (CPP) Edition 01/2009 EN
348
Twin Head
Technical Data Twin Head Overview
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Twin Head
349
9 Twin Head
9.1 Overview
9.1.1 Technical Data Twin Head

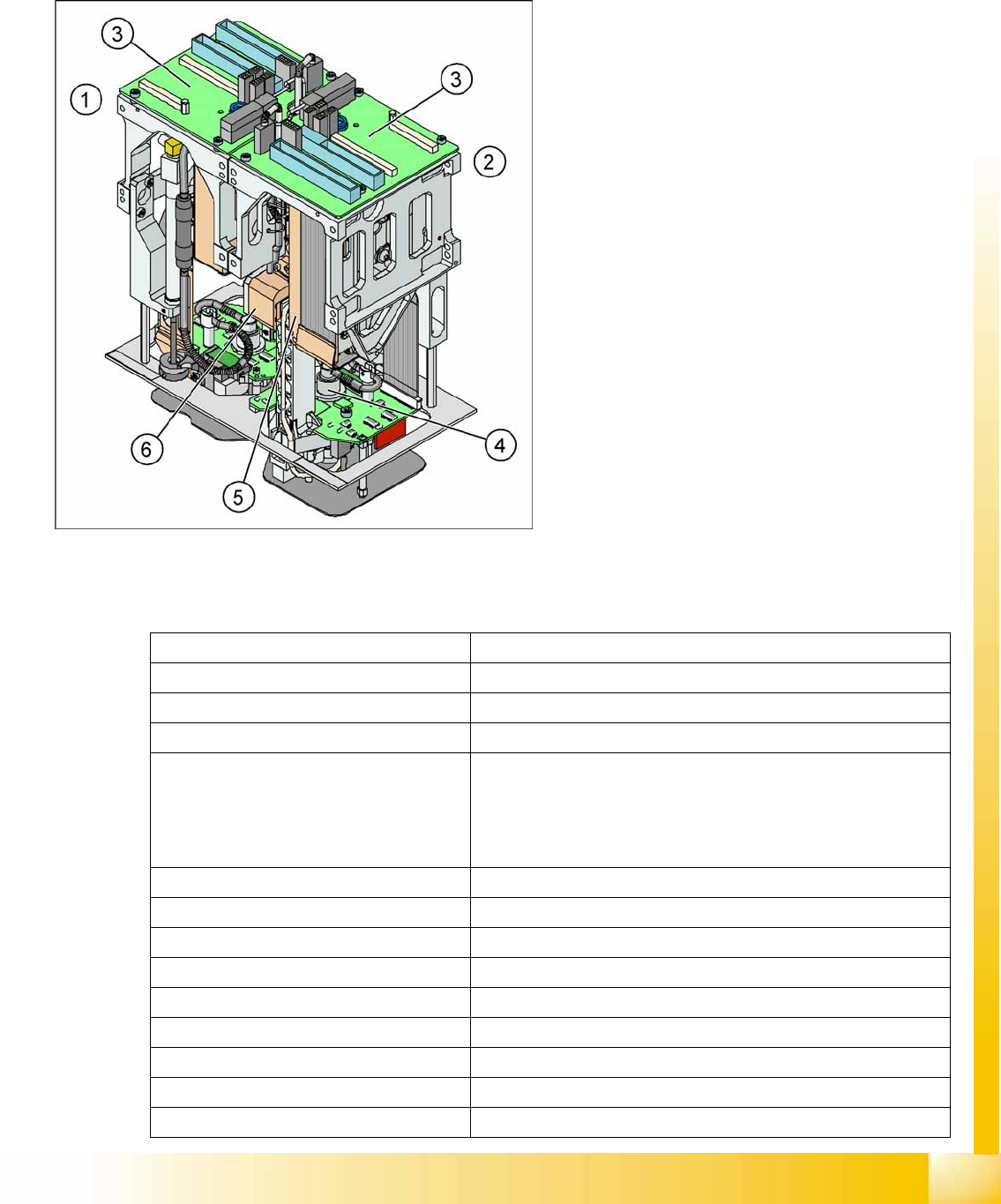

Legend
1. Module 1
2. Module 2, rotate by 180 ° compared to module
1.
3. Main board on modul 1 and modul 2
4. D Axis
5. Linear motorZ Axis
6. Z axis incremental measurement system
The Twin head consists of two identical modules
which work according to the Pick&Place principle.
The second P&P head is rotated 180 degrees.
For the Twin-head, new nozzles (Type 5xx) were
developed. However, the nozzles of the
Pick&Place head type 4xx and the nozzles of the
Collect&Place heads type 8xx and 9xx we can use
with an adapter.
Placement accuracy (X/Y) 35µm by 4 sigma with IC camera
Placement accuracy (X/Y) 30µm by 4 sigma with FC camera
Placement accuracy (Angle) 0,07° by 4sigma
Placement speed 3500 cph
Maximum component size: 50 up to 40 mm single measurement on both segments
69 up to 10 mm (multiple measurement on both segments)
125 up to 10 mm ( multiple measurement on one segment)
200 up to 125 mm (multiple measurement with restrictions on one
segment )
Max. component height 25 mm
Placement force 1 - 15 N
D-Axis / Resolution direct drive / 0,001 degree
Z Axis / Resolution Linear motor / 0,5 µm
Travel range Z axis app. 60 mm
Nozzle types 5xx (4xx, 8xx, 9xx with adapter)
Distance between the segments approx. 71,00 mm
Max. weight of component 100 g
Option high force Twin head placement force max. 30 N (only X series)
