Component Handling
Optional Extension on the Changeover Tables Changeover Table
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Component Handling
411
10.1.5 Optional Extension on the Changeover Tables
10.1.5.1 Additional Reel Holder of the X Table
The X table has 40 feeder locations. However, the tape reel container can only accommodate 30 tape
reels. An additional tape reel holder is therefore provided for the X table, as an option.

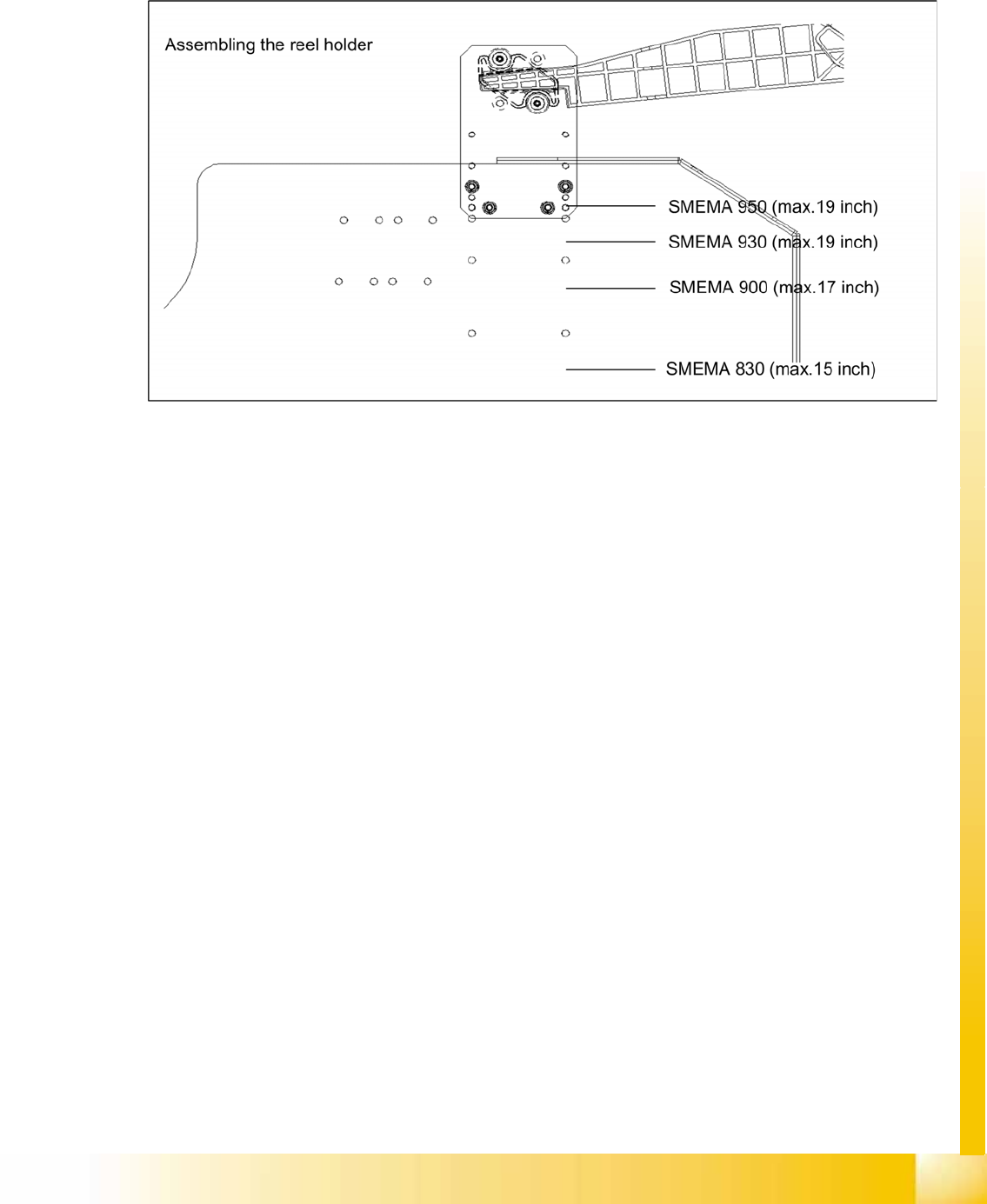

10-9: Additional reel holder X table
Component Handling
X Feeder General
Student Guide (FSE) SIPLACE X Series and X4I
Component Handling Edition 01/2009 EN
412
10.2 X Feeder
10.2.1 General
10-10: X feeder - basic view
Performance :
Increased demand for speed at C&P20A head (Communication, dynamics 40ms for 4mm), Feeder
should not limit placement (communication, transport)
Precision :
Designed for smallest components currently on the market
Reliability:
Reliable drive system, "Closed loop" drive regulation, new mechanical interface, new electrical interface,
brushless DC motors, optimized gear
Flexibility :
Different pitches adjustable, "Hot swapping" possible, upgrade per firmware download possible with
station software, adaptable for "problematic tapes", free step width, variable speed profiles
Usability :
Single track feeder, Tape loading, Interface to operator, Integrated Splice recognition (optional), Able to
handle sticky tapes (optional PSA kit (pressure sensitive adhesive)), no connectors and cables, operator
panel
Intelligence :
Unique feeder- ID, Management data (cycles, power up hours, errors,...), Object data are stored in set-
up control data base
Robustness :
No "on mechanical end stops" --> controlled movement of the transport
Component Handling
X Feeder Parts (Front View) X Feeder
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Component Handling
413
10.2.2 X Feeder Parts (Front View)
10-11: X feeder parts (front view)
Legend
10.2.2.1 X Splice Sensor Note
1 Locking roll (the locking hook of the changeover
table locks the feeder and locking roll in the end
position.)
7 Opening of the tape channel
2 Power- and Data interface 8 Drive motor for the cover foil unit
3 Centering pin "front" 9 Cover foil rocker
4 Lever to lift the Pickup window to insert and
remove the tape
10 Foil removal unit
5 Pick up window 11 Centering pin "back"
6 Drive motors for tape transport 12 Adjustment of the cover foil tension
NOTE:
X splice sensors are mounted as an option, directly behind the pickup position of the X feeder
and communicate via the feeder CAN Bus --> machine CAN Bus with the station software.
