Component Handling
X Feeder Contactless Energy and Data Interface
Student Guide (FSE) SIPLACE X Series and X4I
Component Handling Edition 01/2009 EN
416

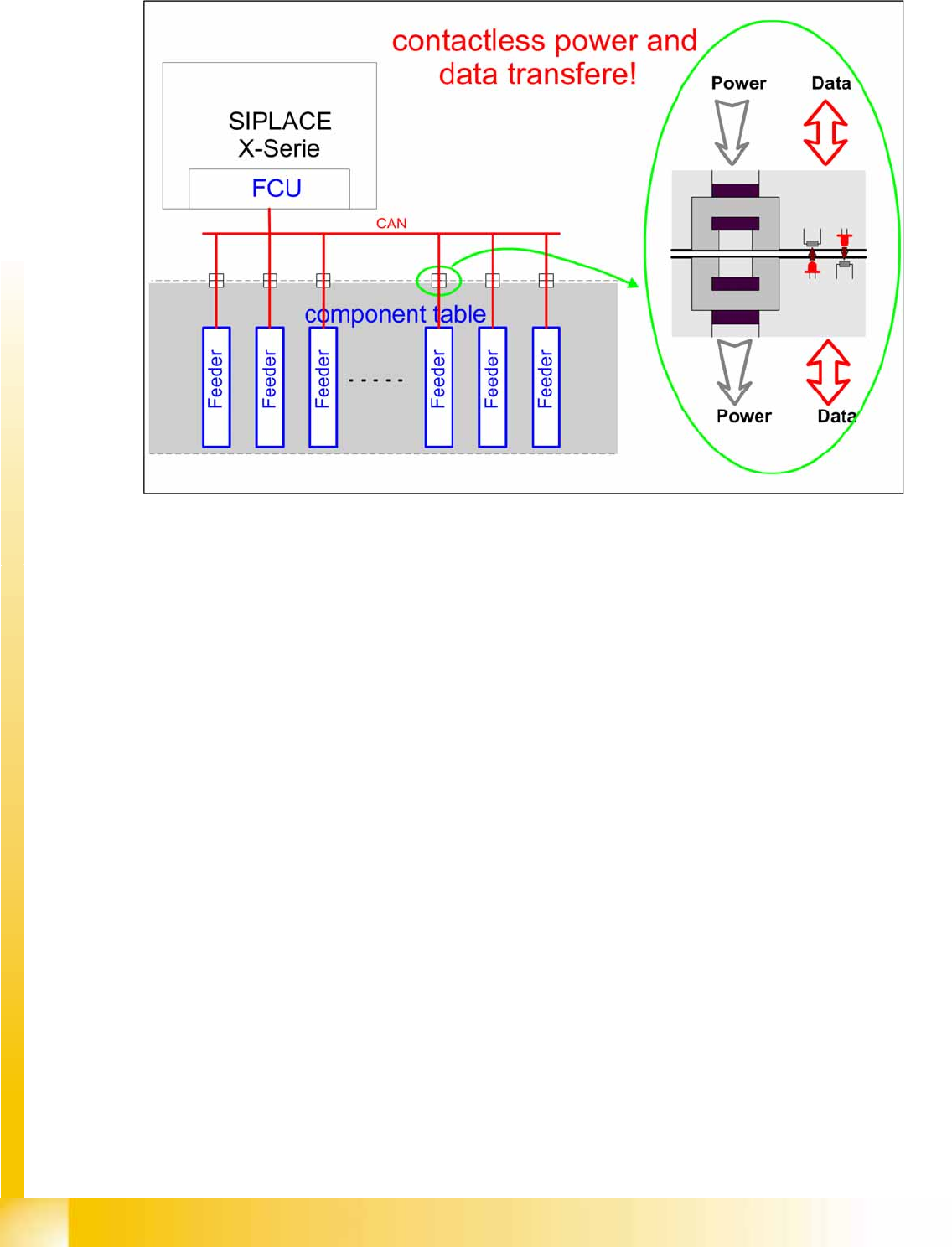

10.2.6 Contactless Energy and Data Interface
10-14: Contactless energy and data transfer
The energy is transferred via induction
The data is transferred via infrared and fiber optic technology
10.2.7 Operation
10.2.7.1 Adjustable Step Sizes on the X Feeder
8 mm X tape feeder module:
1, 2, 4, 8 mm
12 mm X tape feeder module:
4, 8, 12, 16 mm
16 mm X tape feeder module:
4, 8, 12, 16, 20 mm
24 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32 mm
32 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40 mm
44 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52 mm
56 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64 mm
72 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80 mm
88 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96 mm
Component Handling
Operation X Feeder
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Component Handling
417

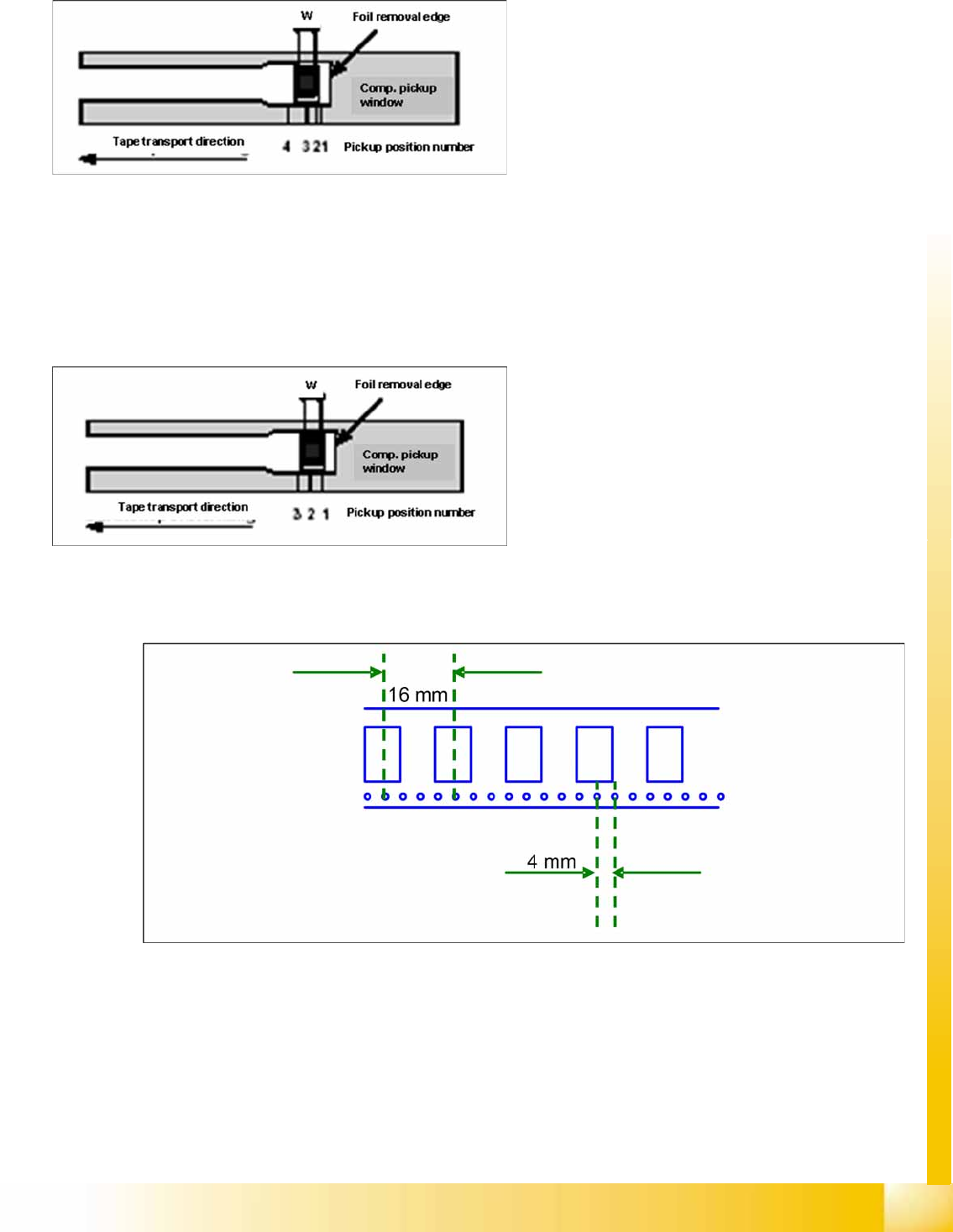

10.2.7.2 4 Pick Up Positions 8mm X Feeder
10.2.7.3 3 Pick Up Positions 12mm X Feeder
10.2.7.4 1 Pick Up Position for Other X Feeders
10-17: Pick up position for other X feeders
10-15: Pick up positions 8mm X feeder
Comp. in 2 mm step in the reel are picked from
Pos. 1. (e.g.0201, 0402)
Component in 4 mm step and positioned
across (short component width W) in the reel
are picked from Pos. 2. (e.g. 0603, 0805,
Micro-,Mini-Melf)
Comp. in 4 mm step and along (long s.
SOT23) in the reel are picked from Pos. 3.
(e.g. 1206, SOT23)
Special-comp. in 8 mm step in the reel are
picked from Pos. 4.
10-16: Pick up positions 12mm X feeder
Comp. with comp.width W up to 3mm (in feed
direction) are picked from Pos. 1.
Comp. with comp.width W from 3 mm up to
7mm (in feed direction) are picked from Pos. 2.
Comp. with comp.width W from 7mm up to
11.5 mm (in feed direction) are picked from
Pos. 3
Component Handling
X Feeder Operation
Student Guide (FSE) SIPLACE X Series and X4I
Component Handling Edition 01/2009 EN
418

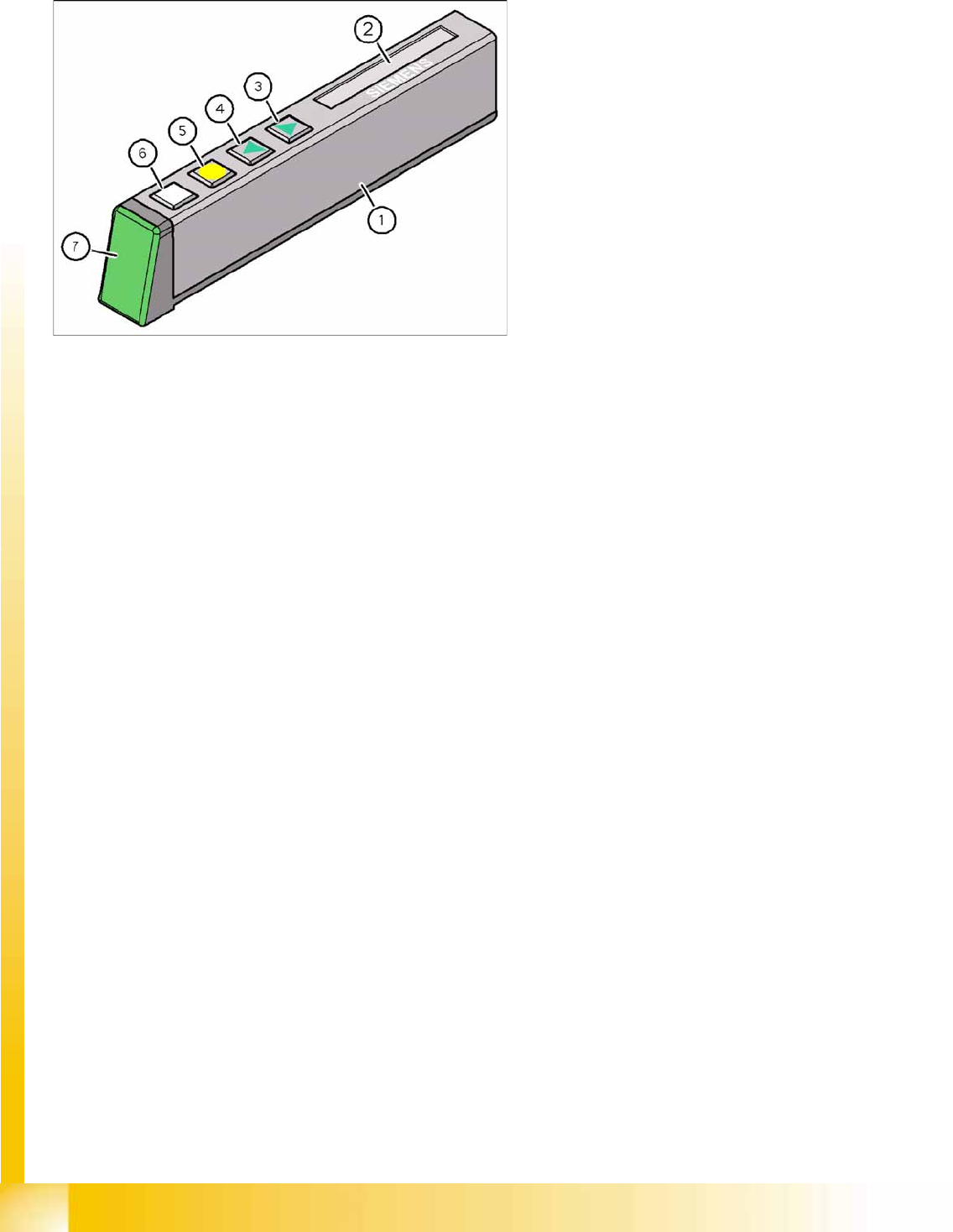

10.2.7.5 X Feeder Operator Panel
10-18: X Feeder Operator Panel
Legend
1. X feeder operator panel
2. LCD- Display (In the basic view shows the
display the track number and the step)
3. Button "Forward"
4. Button "Backward"
5. Button "FOIL"
6. Button "SET"
7. Status LED:
– Green: Ready for operation
– Orange: Warning
–Red: Error
– Off: Feeder not used in current setup
