10.2.7.2 4 Pick Up Positions 8mm X Feeder
10.2.7.3 3 Pick Up Positions 12mm X Feeder
10.2.7.4 1 Pick Up Position for Other X Feeders
10-17: Pick up position for other X feeders
10-15: Pick up positions 8mm X feeder
Comp. in 2 mm step in the reel are picked from
Pos. 1. (e.g.0201, 0402)
Component in 4 mm step and positioned
across (short component width W) in the reel
are picked from Pos. 2. (e.g. 0603, 0805,
Micro-,Mini-Melf)
Comp. in 4 mm step and along (long s.
SOT23) in the reel are picked from Pos. 3.
(e.g. 1206, SOT23)
Special-comp. in 8 mm step in the reel are
picked from Pos. 4.
10-16: Pick up positions 12mm X feeder
Comp. with comp.width W up to 3mm (in feed
direction) are picked from Pos. 1.
Comp. with comp.width W from 3 mm up to
7mm (in feed direction) are picked from Pos. 2.
Comp. with comp.width W from 7mm up to
11.5 mm (in feed direction) are picked from
Pos. 3
Component Handling
X Feeder Operation
Student Guide (FSE) SIPLACE X Series and X4I
Component Handling Edition 01/2009 EN
418
10.2.7.5 X Feeder Operator Panel
10-18: X Feeder Operator Panel
Legend
1. X feeder operator panel
2. LCD- Display (In the basic view shows the
display the track number and the step)
3. Button "Forward"
4. Button "Backward"
5. Button "FOIL"
6. Button "SET"
7. Status LED:
– Green: Ready for operation
– Orange: Warning
–Red: Error
– Off: Feeder not used in current setup
Component Handling
Operation X Feeder
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Component Handling
419
10.2.7.6 Settings and Functions in the X Feeder Main Menu

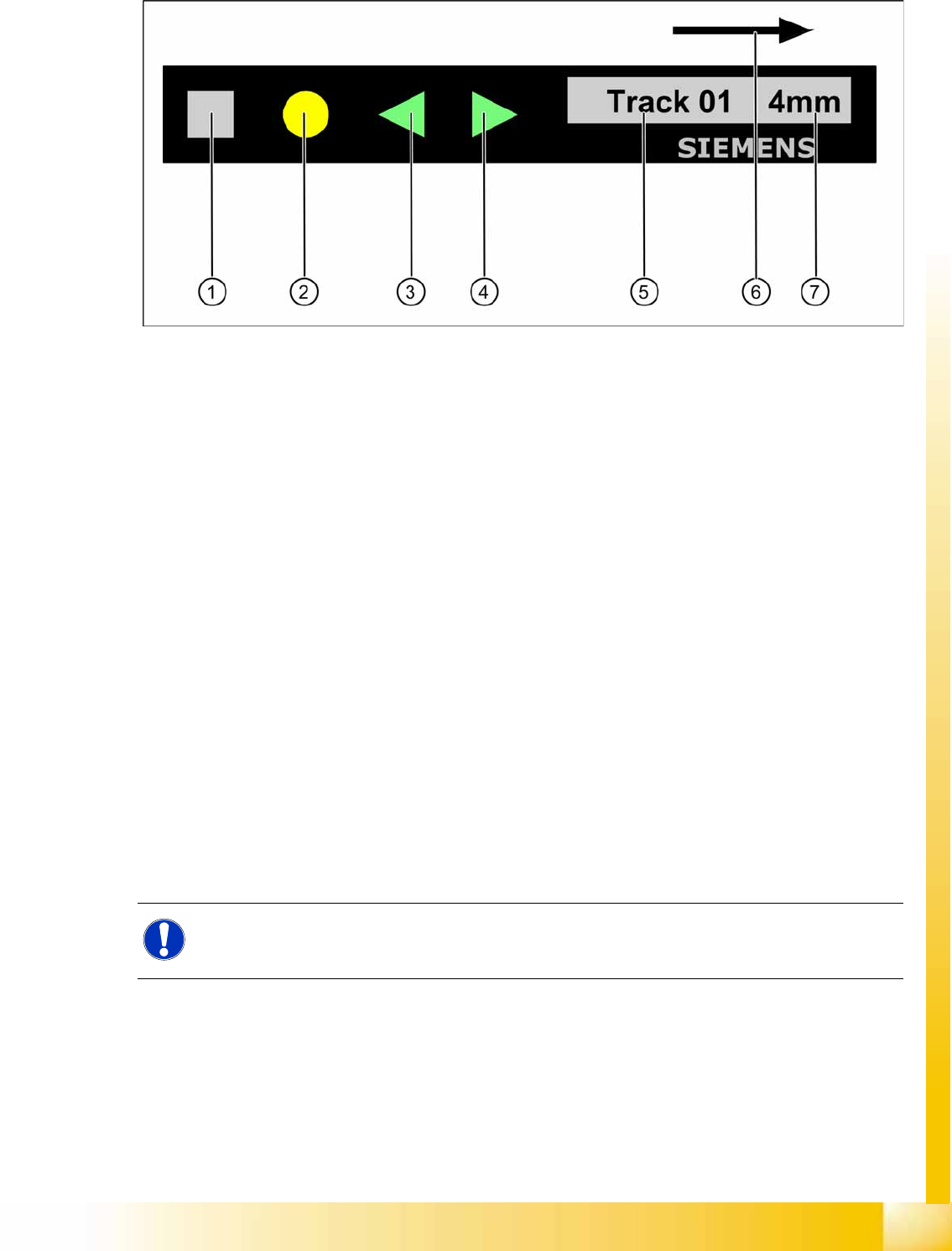

10-19: Control panel for X feeder
Legend
1. "SET" button:
– Press briefly to switch over to the next menu in the main view.
– Prolonged pressing sends a request to call up component verification.
2. "Foil" button:
– Pressing this button starts the drive motor for the cover foil, which runs until the foil has been
stretched tight and
– the motor toggle switch turns off or until the timer has counted 30 seconds.
3. "Backwards" button:
(Both functions should only be performed without the cover sheet fitted).
– Press briefly and the tape is move backwards by the set cycle step.
– Prolonged pressing moves the tape back.
4. "Forwards" button:
– Press briefly to move the tape by the set cycle step.
– Press for longer to move the tape forwards. Make sure the cover foil is not clamped in.
5. Display showing track on location
6. Transport direction
7. Cycle step
NOTE:
If correctly managed in SIPLACE Pro, the cycle for X feeders can be automatically set when a
recipe is downloaded.
