11.1.9 "Combined PCB" Option
Combined PCB enables you to transport two different boards (top, bottom) into the placement area at
the same time and to place them at the same time. This reduces the transportation times. To make this
option possible, you require an upstream shuttle which collects the boards and a downstream shuttle
which then distributes the boards onto the conveyor lanes.
11.1.10 I-Placement Option
In this option for dual conveyors, the two outer conveyor sides are defined as fixed sides. The two inner
conveyor sides remain flexible and can be adjusted to suit the board widths. This creates shorter travel
ranges between pickup and placement in the SIPLACE X4I machine. In addition, both gantries can pick
up and place independently of one another in the same placement area. Each gantry processes one
board on one lane, independently of the other gantry in this placement area.
11.1.11 Firmware Control Tasks (Embedded Software)
Transporting, clamping, temporarily storing the PCBs, positioning the PCB using a laser light barrier,
mechanical stopper for long PCBs as an option
Single functions for controlling the conveyor
Adjusting the conveyor width
Addressing the inputs/outputs
Downloading the firmware via SITEST
Setting the conveyor parameters (conveyor speed)
Synchronous transport mode
11.1.12 Conveyor Control TSP 301
The conveyor control TSP 301 supports the following options:
Left conveyor side fixed (default: right conveyor side fixed)
"Long PCB" option
PCB Alignment pin
Ceramic substrate centering
Vacuum tooling
PCB barcode
SMEMA interface, SIEMENS (option)
Combined PCB
I-Placement
Modular Conveyor
Structure Function Description
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Modular Conveyor
441
11.1.13 Structure
11.1.13.1 Structure of the single conveyor

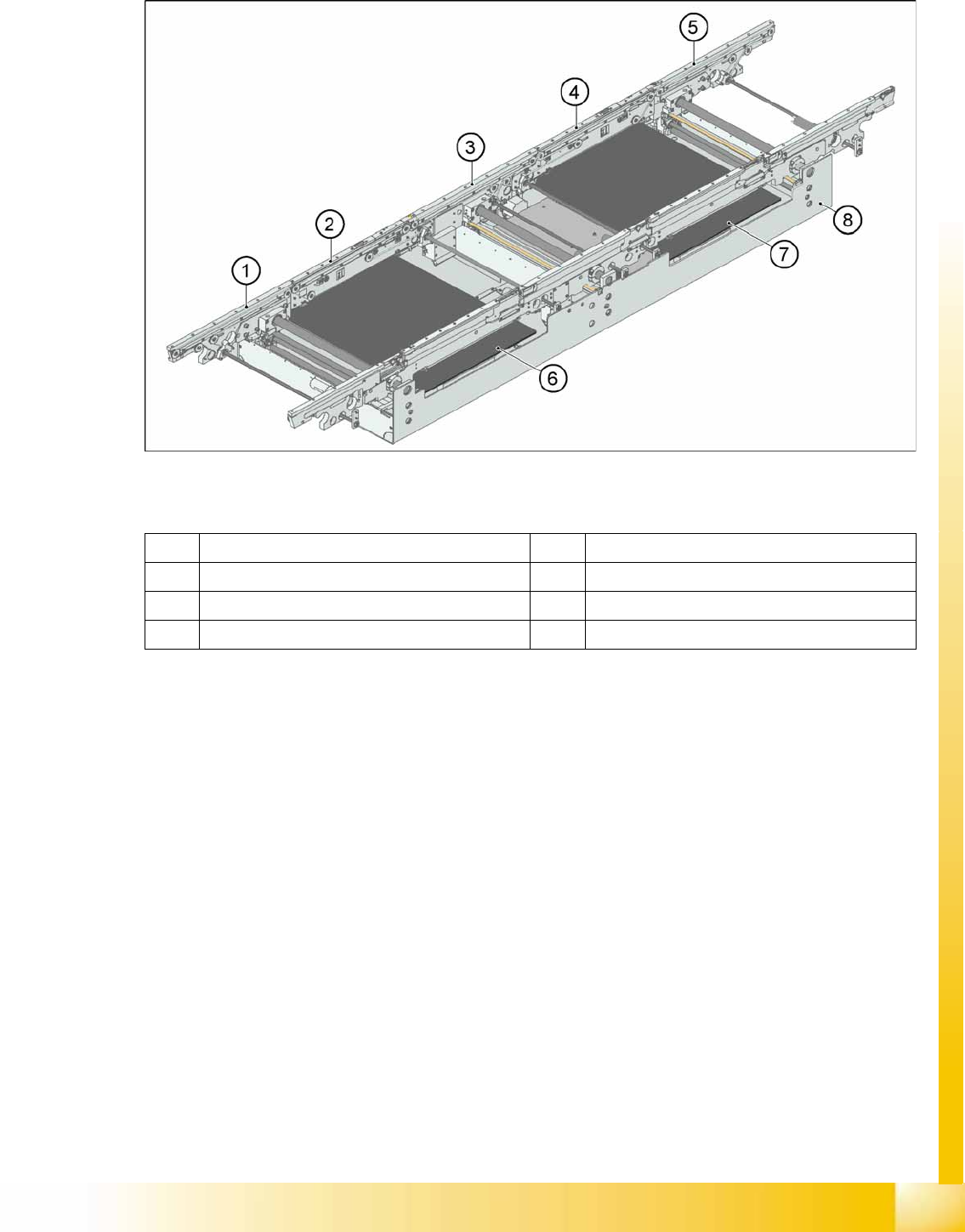

11-1: PCB transport - single conveyor
Legend
In SIPLACE X and D3/D4 machines, the single conveyor system consists of an input conveyor, two
placement areas, the intermediate conveyor and the output conveyor. The conveyor has an automatic
width adjustment unit and a lifting table for clamping the PCB.
1 Input belt 5 Output belt
2 Placement area 1 6 Lifting table placement area 1
3 Intermediate belt 7 Lifting table placement area 2
4 Placement area 2 8 Assembly tub
Modular Conveyor
Function Description Structure
Student Guide (FSE) SIPLACE X Series and X4I
Modular Conveyor Edition 01/2009 EN
442
11.1.13.2 Structure of the Dual Conveyor
11-2: PCB transport - dual conveyor
Legend
The dual conveyor has two conveyor tracks. Depending on the placement mode, line concept and board
size, either the left, right or two outer conveyor sides can be selected as fixed sides.
1 Input belt 6 Lifting table placement area 2
2 Placement area 1 7 Output belt
3 Lifting table placement area 1 8 Assembly tub
4 Intermediate belt T1 Conveyor track 1
5 Placement area 2 T2 Conveyor track 2
