Modular Conveyor
Conveyor Modes Function Description
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Modular Conveyor
445

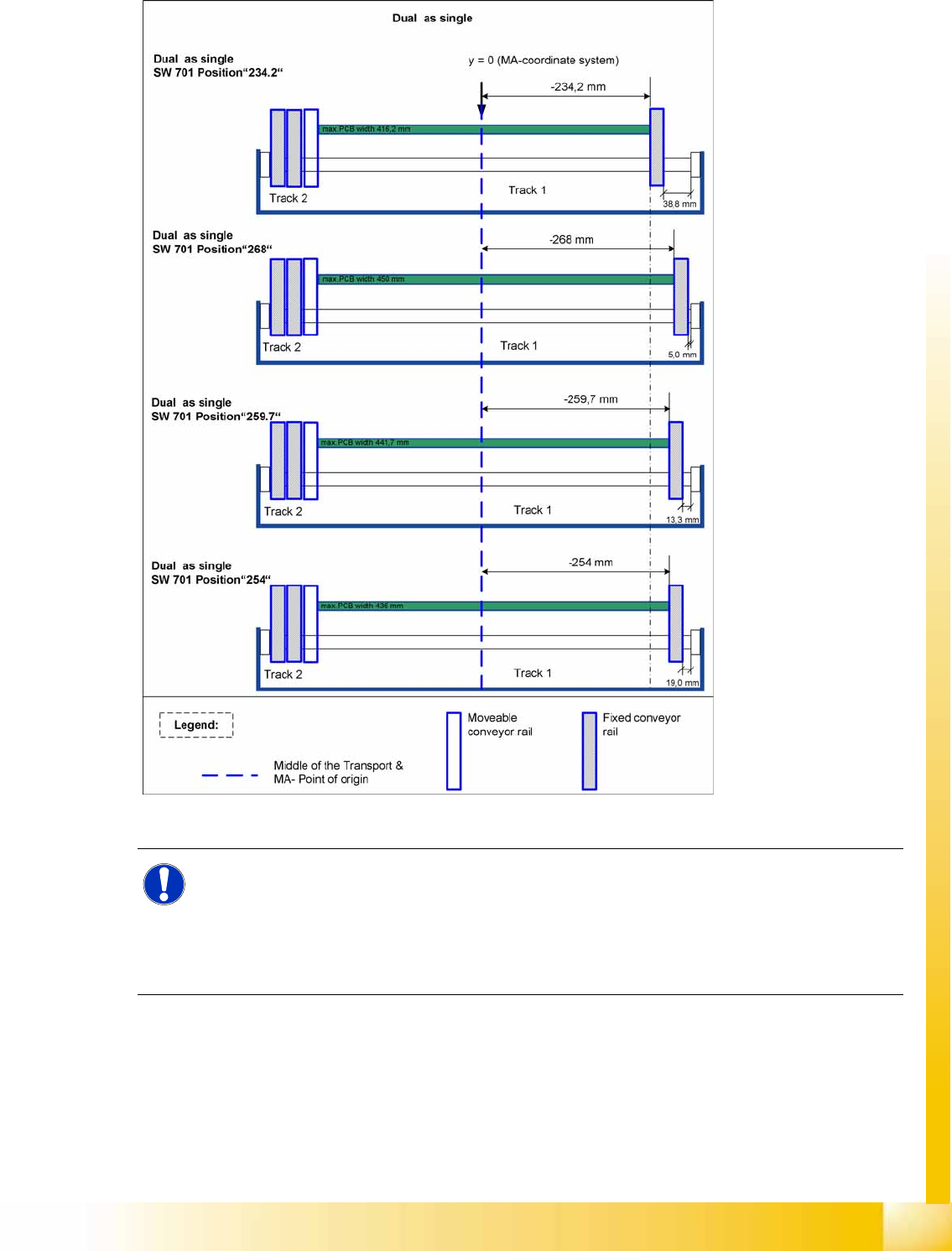

11.1.14.2 Overview of Dual Conveyor as Single Conveyor
11-4: Dual conveyor as single conveyor
See also:
J
11.3.2 Setting the Fixed Conveyor Side (from SW701) [
J
452]
NOTE:
A dual conveyor as single conveyor is possible for conveyor lanes 1 or 2
Conveyor lane 1 is used with the button on the right or outer side.
Conveyor lane 2 is used with the button on the left.
The term
Position 'xxx.x'
in the diagram refers to the buttons in the station software, for setting
the fixed conveyor side.
Modular Conveyor
Function Description Conveyor Modes
Student Guide (FSE) SIPLACE X Series and X4I
Modular Conveyor Edition 01/2009 EN
446

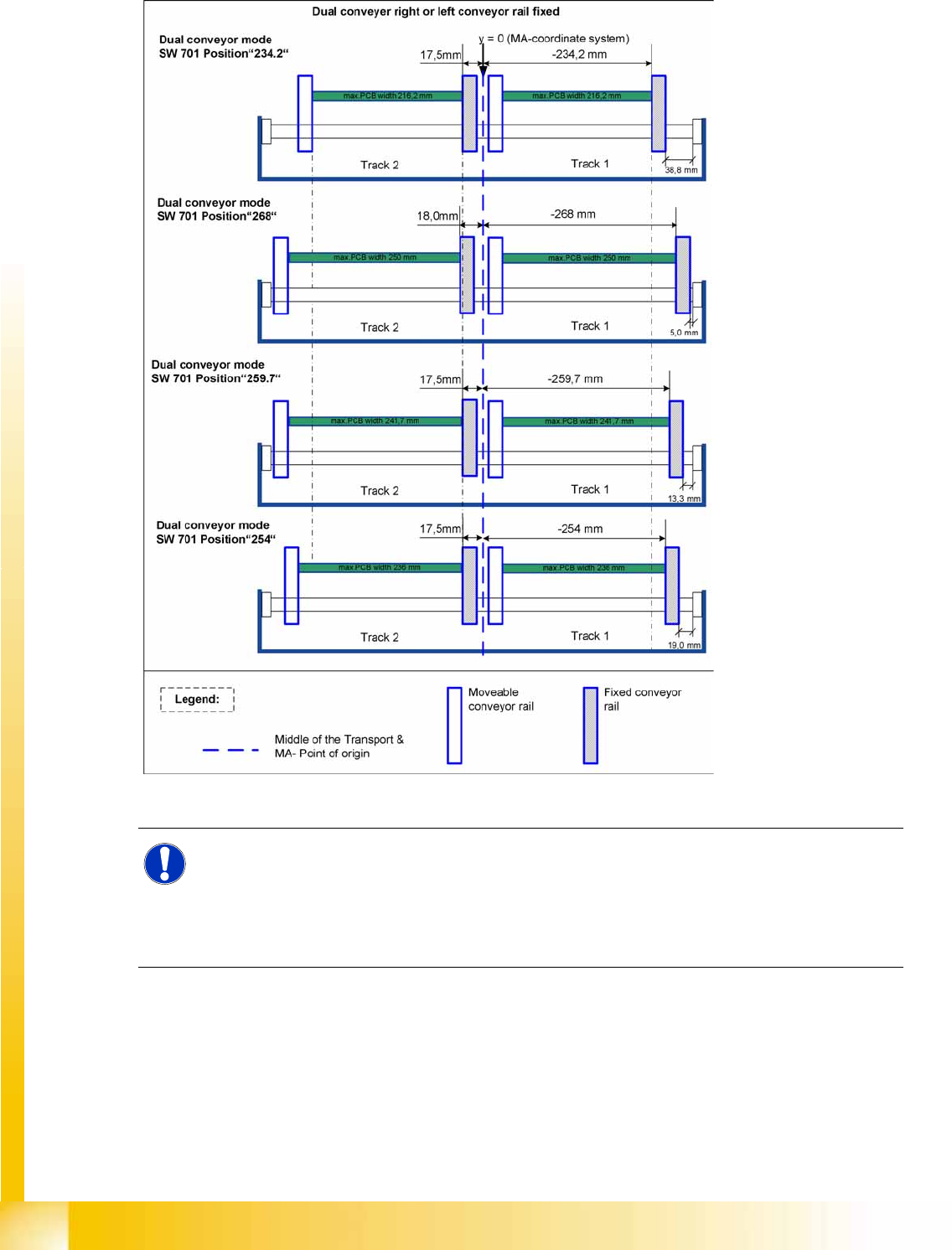

11.1.14.3 Overview of Dual Conveyor with Right or Left Side Fixed
11-5: Dual conveyor with right or left side fixed
See also:
J
11.3.2 Setting the Fixed Conveyor Side (from SW701) [
J
452]
NOTE:
During service work, the distance between the fixed side and the shaft fixtures is set to 38.8 with
the gauge, in standard mode. The other dimensions are calculated automatically by the
software.
The term
Position 'xxx.x'
in the diagram refers to the buttons in the station software, for setting
the fixed conveyor side.
Modular Conveyor
Conveyor Modes Function Description
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Modular Conveyor
447
11.1.14.4 Overview of Dual Conveyor I-Placement
11-6: Dual conveyor i-placement
See also:
J
11.3.2 Setting the Fixed Conveyor Side (from SW701) [
J
452]
NOTE:
During service work, the distance between the fixed side and the shaft fixtures is set to 38.8 with
the gauge, in standard mode. The other dimensions are calculated automatically by the
software.
The term
Position 'xxx.x'
in the diagram refers to the buttons in the station software, for setting
the fixed conveyor side.
