Calibration Calibration of Entire Machine Calibration Position – Conveyor, Nozzle Chang er, Nozzle Changer Station S tudent Guide (FSE) SI PL ACE X Series and X4I Calibration Edition 01/2009 EN 480 12.2.4 Calibration Pos…
Calibration
Calibration Position – Machine Zero Points Calibration Positions in the Machine
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Calibration
479
12.2.2 Calibration Position – Machine Zero Points
The machine zero point is a fiducial on the calibration tool holder.
Each gantry has its own machine zero point. This means, that each location has a fiducial of this kind.
These machine zero points refer to the "virtual machine zero point".
12.2.3 Calibration Position – Tables
Legend
1. Machine zero point gantry 1
X
nom
= -368.7 mm
Y
nom
= -298.0 mm
2. Machine zero point gantry 2
X
nom
= 368.7 mm
Y
nom
= -298.0 mm
3. Machine zero point gantry 3
X
nom
= 368.7 mm
Y
nom
= 298.0 mm
4. Machine zero point gantry 4
X
nom
= -368.7 mm
Y
nom
= 298.0 mm
5. Coordinate zero point
All 4 machine zero points have the same distance
to the coordinate system origin.
Legend
1. Table fiducial 1
2. Table fiducial 2
3. Table fiducial 3
The table fiducials (1) and (2) are the standard
table fiducials for the X table. The table fiducial (3)
is on the dummy feeder of the locations with
mirrored gantries.
Calibration
Calibration of Entire Machine Calibration Position – Conveyor, Nozzle Changer, Nozzle Changer Station
Student Guide (FSE) SIPLACE X Series and X4I
Calibration Edition 01/2009 EN
480
12.2.4 Calibration Position – Conveyor, Nozzle Changer, Nozzle Changer Station
12.3 Calibration of Entire Machine
Tools
Calibration component
version SST 23 C&P20A [03034148-01]
version III non transparent HF/X – for CPP and Twin Head [03010565-01]
Nozzle type
for C&P20A: 1235
for Twin Head: 517, 528
for CPP: 2057
Board for calibrating the PCB conveyor width
Mapping plate (optional)

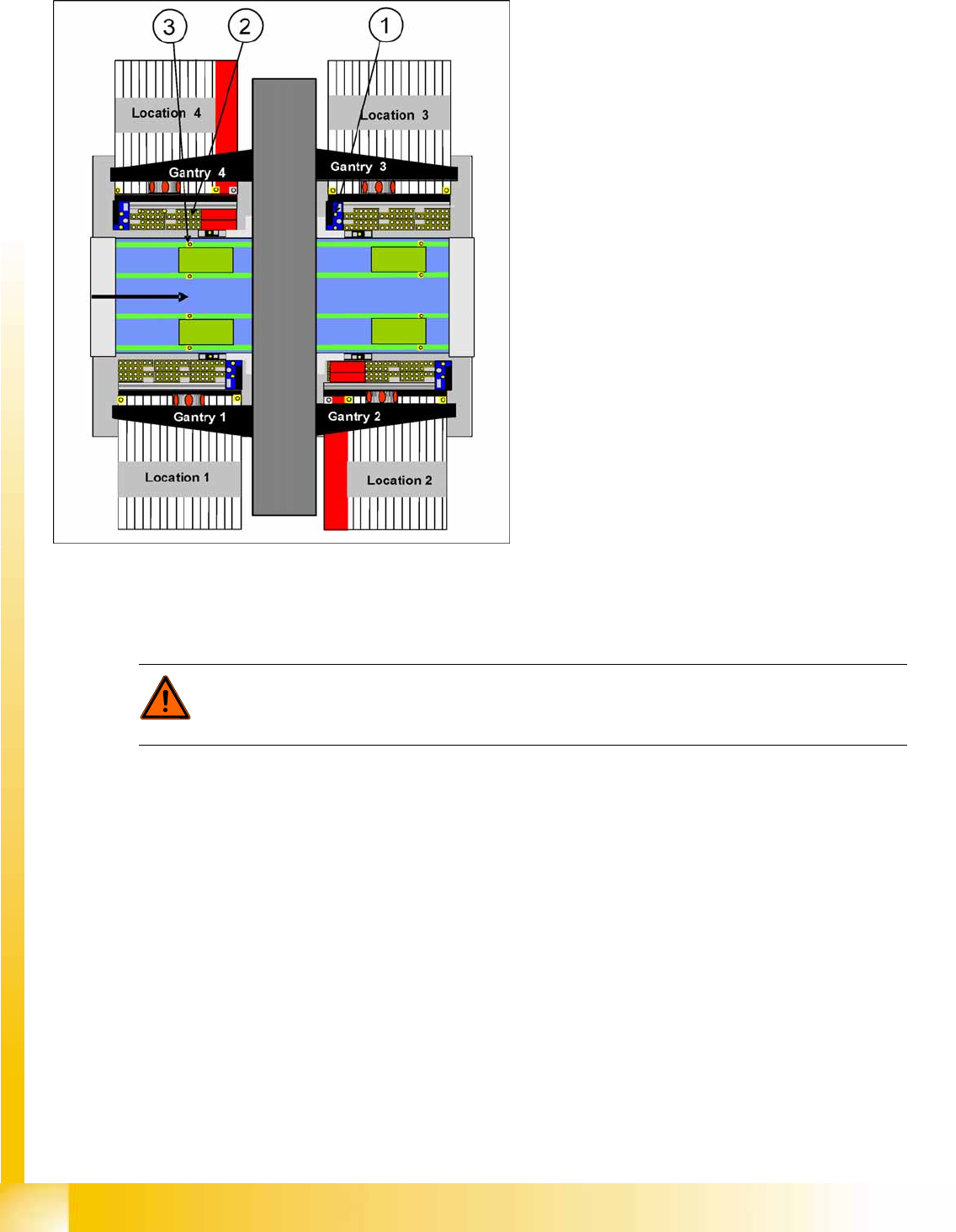

Legend
1. Two fiducials for each nozzle station
2. Two fiducials for each nozzle magazine
3. Each conveyor side has a fiducial which can
be used to determine the PCB reference
corner, based on the conveyor configuration.
DANGER: Risk of damage!
The gantry may move during some of the following procedures.
X Make sure that there are no objects in the travel range.
Calibration
Calibration in General / C&P and CPP Calibration of Entire Machine
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Calibration
481
Requirements for calibration
X Switch the machine on.
X Switch the user level to at least
Service (customer)
.
X Perform an overall reference run.
X Use the nozzle changer to help you configure the heads to be calibrated with the calibration nozzles.
X Place the calibration tools into the calibration tool pockets.
12.3.1 Calibration in General / C&P and CPP

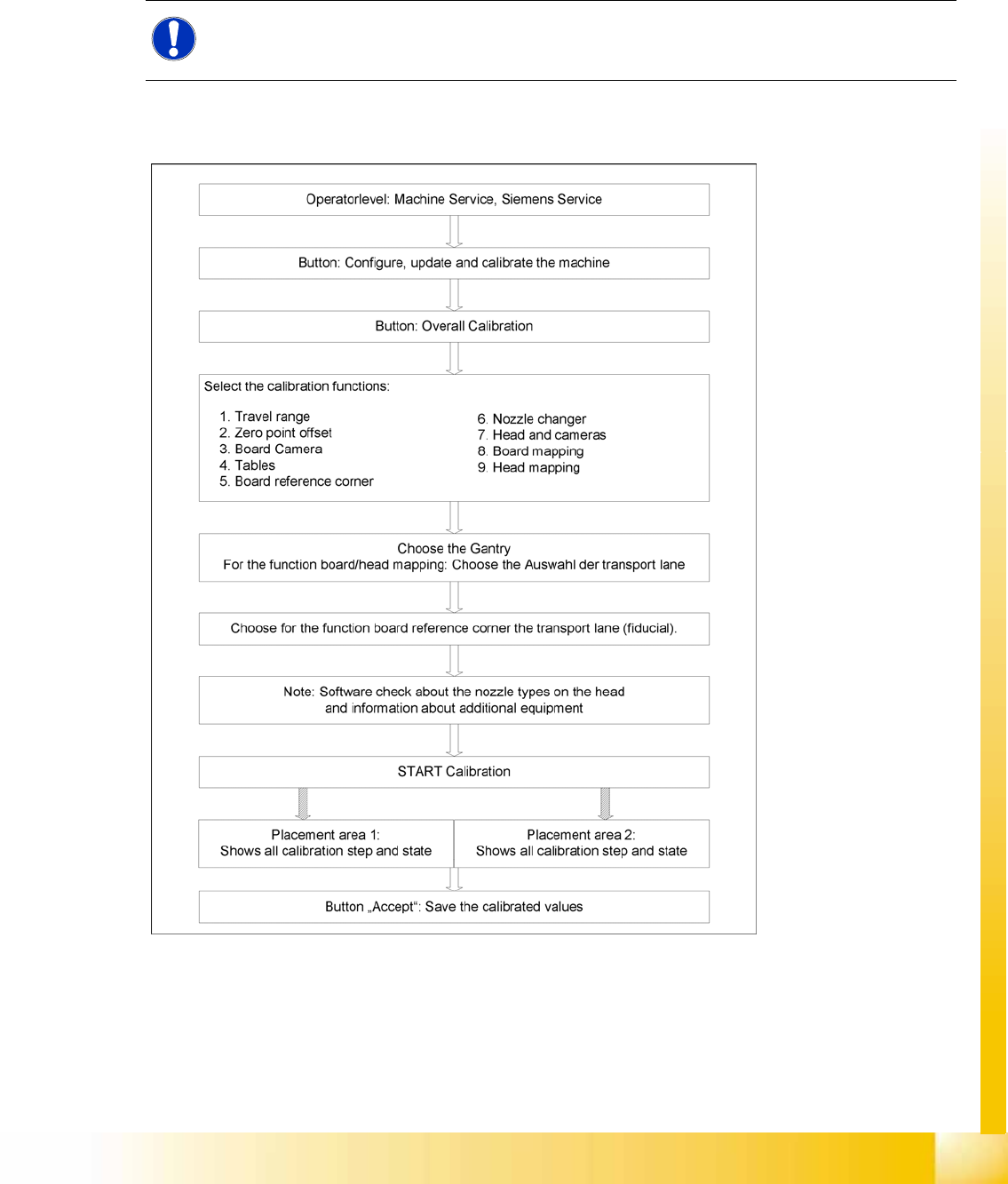

12-2: General sequence to calibrate the machine
NOTE:
Before you place the calibration tool, make sure that it is clean. Also, be sure that you insert it
into the "calibration pocket" with its print of the fiducial structure on the bottom.
