Calibration
Teaching Machine Positions - Table Teaching Machine Positions
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Calibration
495

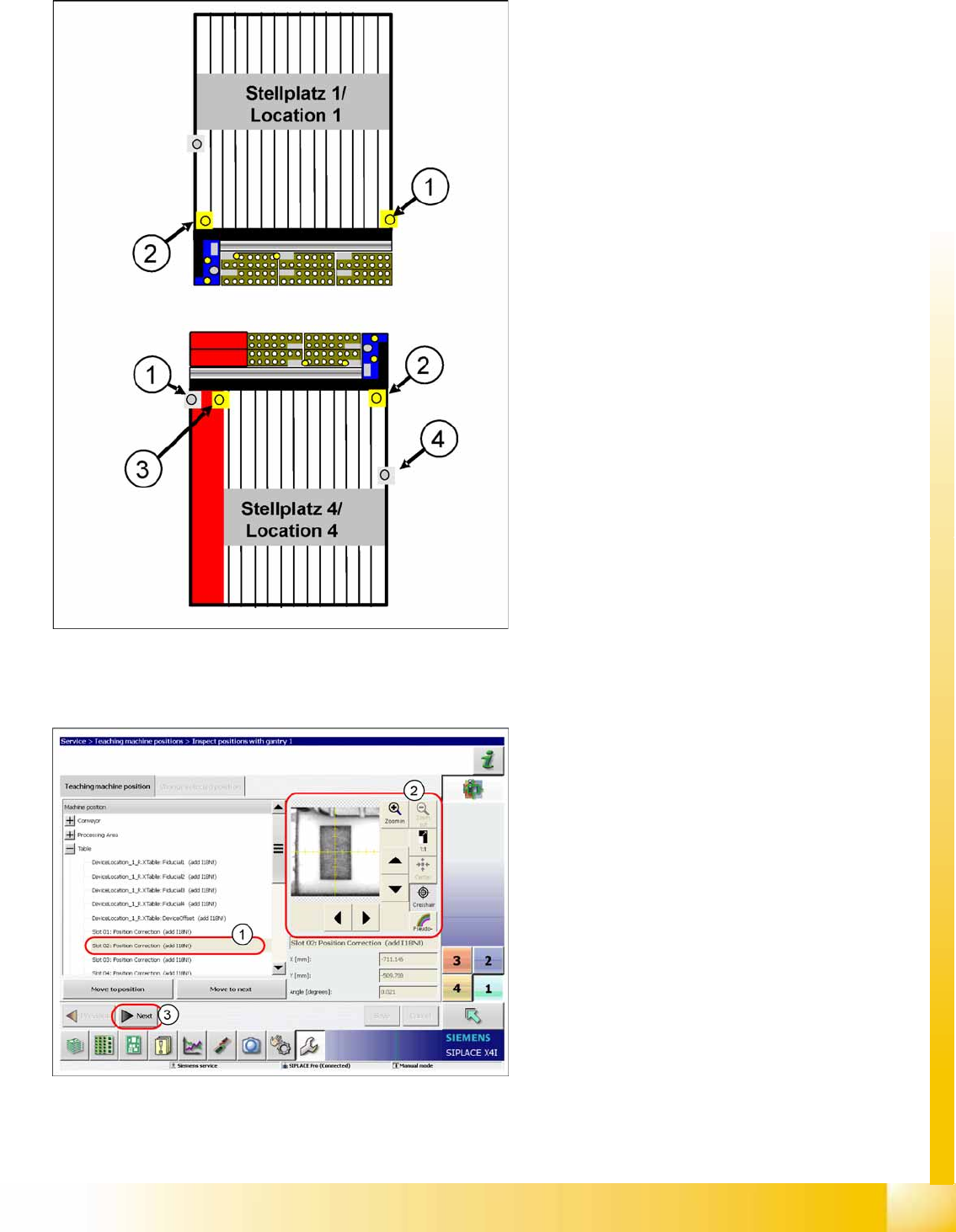

12.5.2 Teaching Machine Positions - Table
12.5.2.1 Teaching Machine Positions - Feeder
The table (fiducial) which corresponds to the
gantry chosen (location) can now be taught.
Naming convention
1. DeviceLocation_1_L.XTable: Fiducial 1 (only
used at locations 1 and 3)
2. DeviceLocation_1_L.XTable: Fiducial 2
3. DeviceLocation_1_L.XTable: Fiducial 3 (only
used at locations 2 and 4)
4. DeviceLocation_1_L.XTable: Fiducial 4 (is not
used)
In addition to the tables (fiducials), all pickup
positions for the configured feeders can be
checked and taught.
X For example, select
Slot 02: Position
Correction
(1)
X The pickup position will be approached (2).
X Teach with the
Next
(3).
Calibration
Teaching Machine Positions Teaching Machine Positions - Conveyor
Student Guide (FSE) SIPLACE X Series and X4I
Calibration Edition 01/2009 EN
496

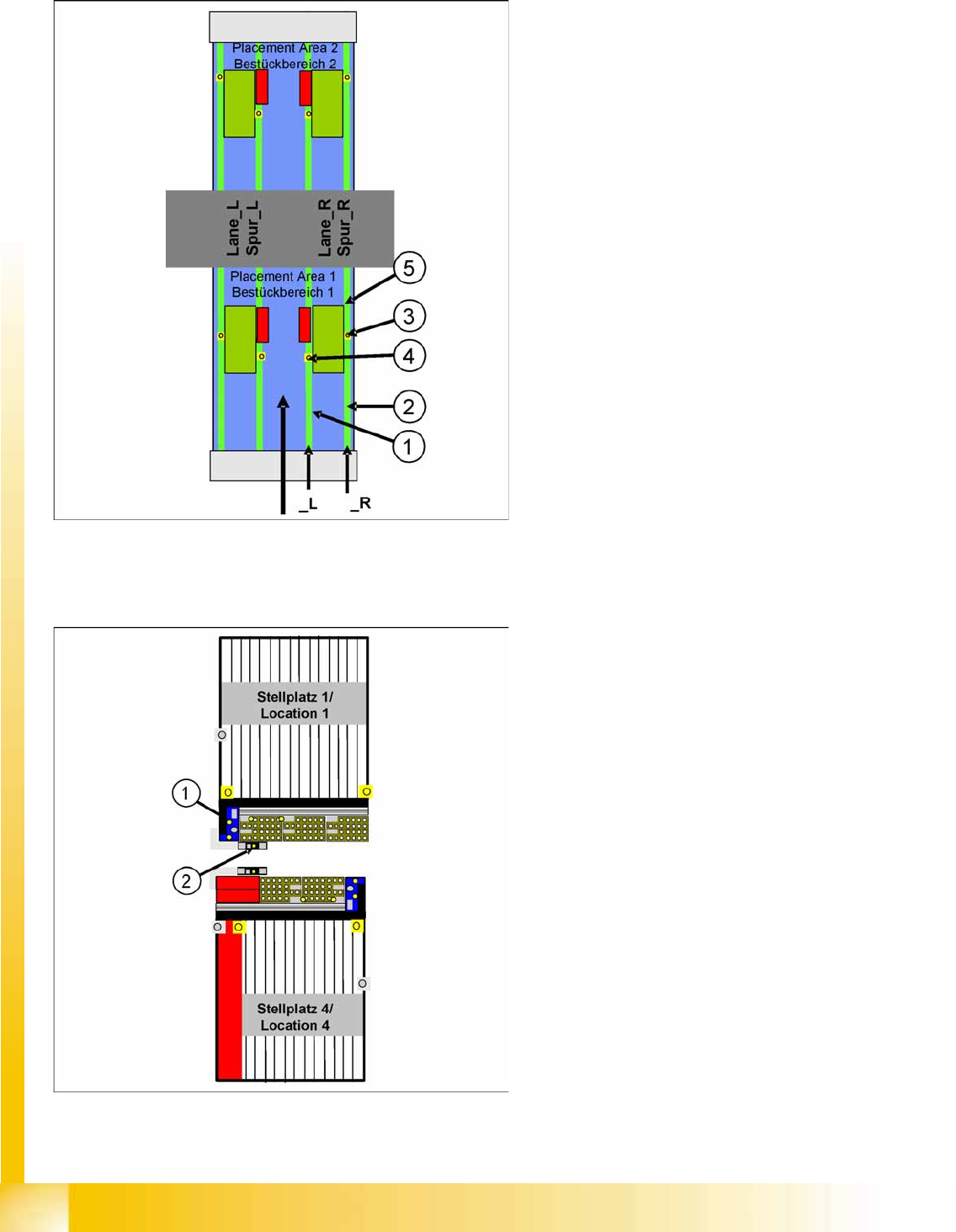

12.5.3 Teaching Machine Positions - Conveyor
12.5.4 Teaching Machine Positions – NC, Gantry
Naming conventions, example of gantry 1
1. Lane_R: NozzleRef_1_L
Position of height reference run for fixed
conveyor side left
2. Lane_R: NozzleRef_1_R
Position of height reference run for fixed
conveyor side right
3. Lane_R: PA1 standard fiducial
Fiducial for calibration of PCB reference
corner
4. Lane_R: PA1 combined PCB fiducial
Fiducial for calibration of the PCB reference
corner, if the hardware option "Combined
PCB" is installed
5. Lane_R: ReferenceCorner1
Teach the real PCB reference corner
Naming conventions, example of gantry 1
1. NozzleChangerCtrl_1_R: Offset correction
You can only teach the outer fiducial of the
nozzle station in each case. An offset is stored
in the software, for the second fiducial.
2. Gantry_1R: Zero Offset
Fiducial for the machine zero point
Current position – from this position, the gantry
can be taught in any position.
Calibration
Teaching Machine Positions - Placement Area Teaching Machine Positions
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Calibration
497

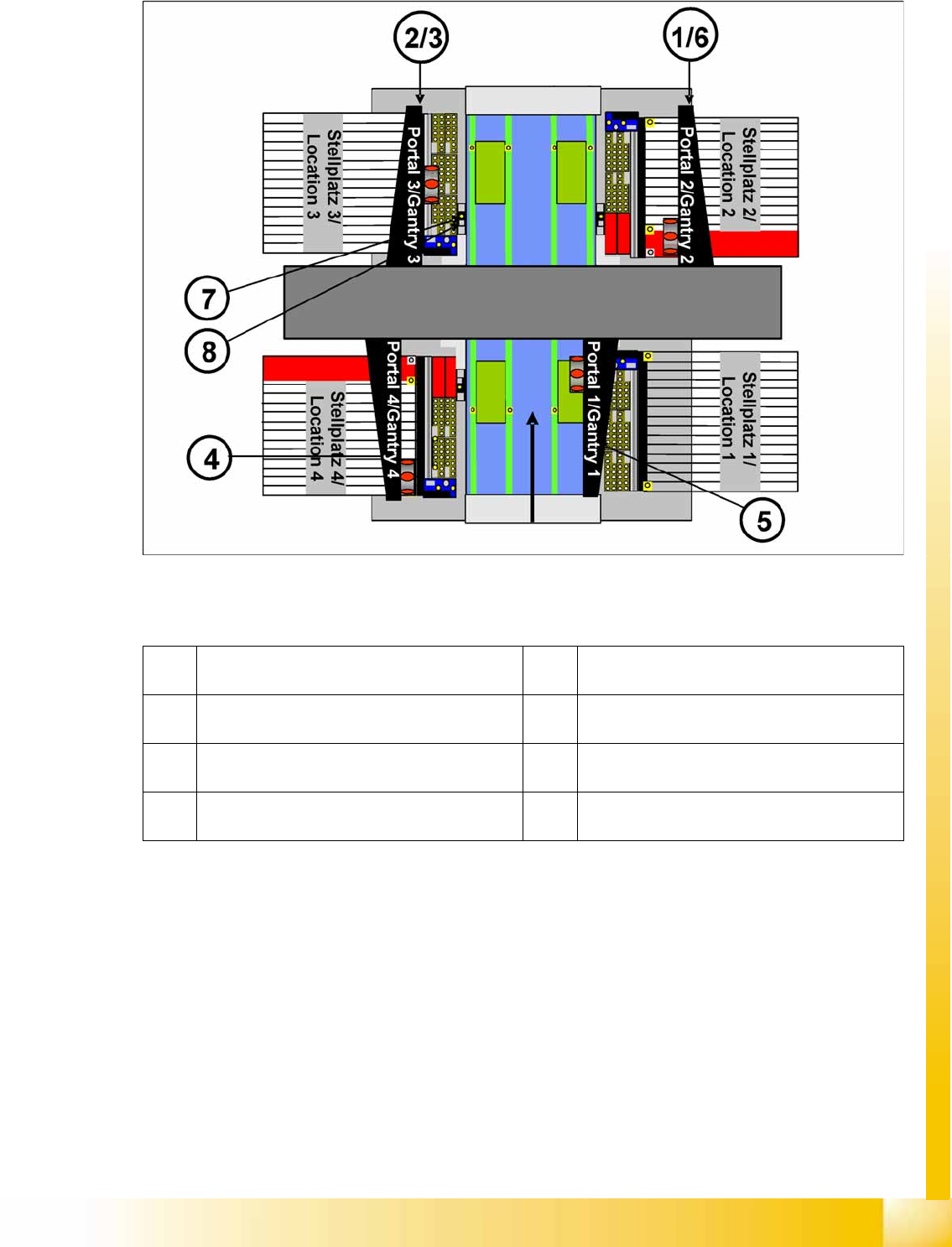

12.5.5 Teaching Machine Positions - Placement Area
This is where you can check and change the various machine positions.
Naming conventions, example of PA 1 gantry 1 :
(1) ProcessingArea_1: ParkPosition_R (park
position)
(2) ProcessingArea_1: RejectBox_R (component
reject position)
(3) Processing Area_1: RejectPosition_R
(component reject position)
(4) ProcessingArea_1: ServicePosition_R (service
position)
(5) ProcessingArea_1: SetupPosition_R (setup
change position)
(6) ProcessingArea_1: WaitPosition_R (waiting
position)
(7) ProcessingArea_1: ZeroOffsetFid (fiducial for
machine zero point)
(8) ProcessingArea_1: CalibrationPart5_Location
(calibration tool position for C&P20A head)
