Overview
SIPLACE X Series Configurations
Student Guide (FSE) SIPLACE X Series and X4I
Overview Edition 01/2009 EN
52
3.1.2 Configurations

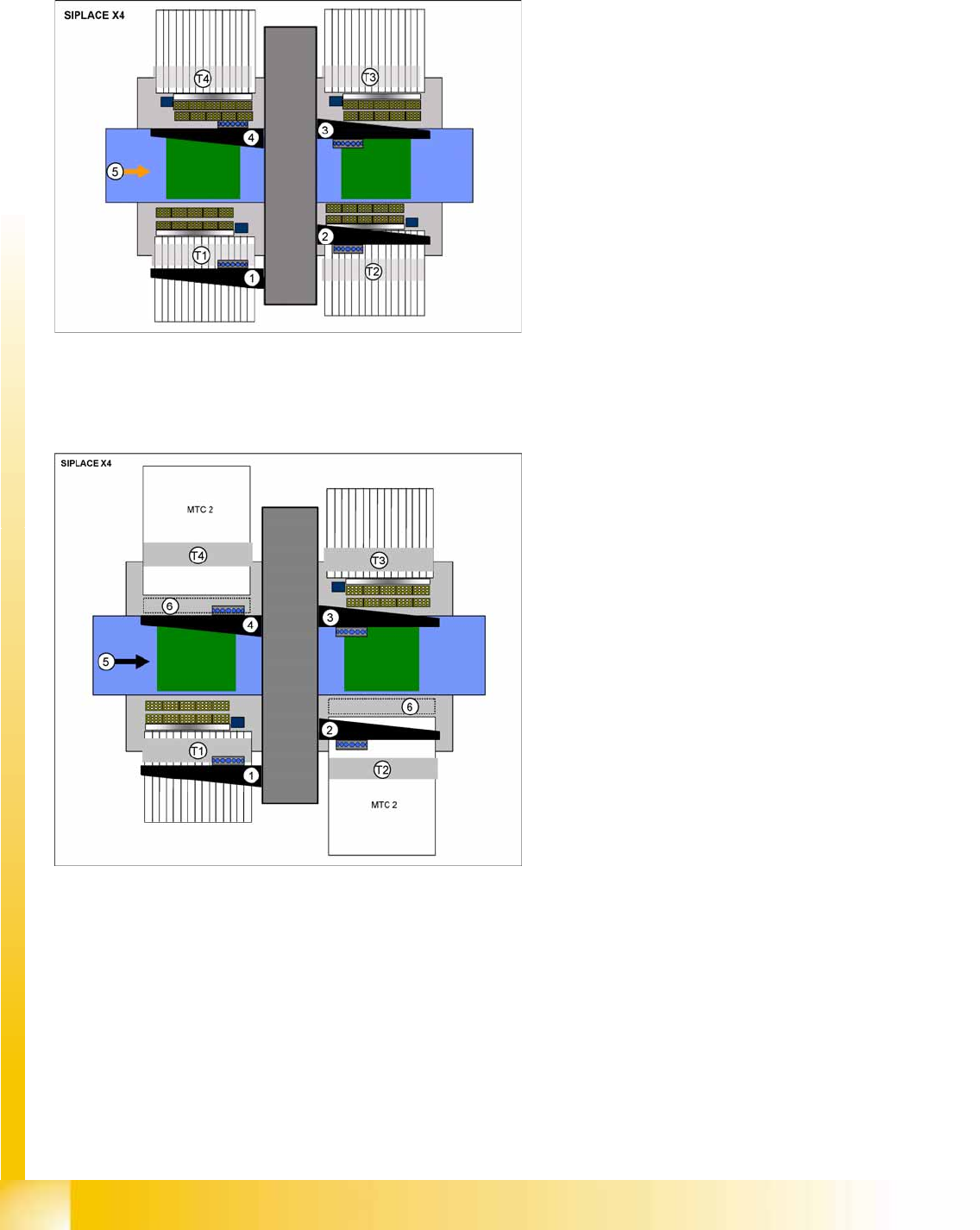

3.1.2.1 SIPLACE X4 Configuration
3.1.2.2 SIPLACE X4 with MTC2 - Configuration
3-3: SIPLACE X4 configuration options
Legend
Dimensions (L x W) 2.38 x 2.75 m
1-4: Gantry 1 - 4 with CPP, C&P20A or Twin
Head
T1 - T4: Locations 1 - 4, 40 tracks for 8 mm X
feeder
5: Direction of transport , PCB conveyor with 5
areas
Restriction: When configuring the head, always
take into account the maximum component height
for the placement head concerned.
3-4: SIPLACE X4 configuration options
Legend
Dimensions (L x W) 2.38 x 3.70 m
1-4: Gantry 1 - 4 with CPP, C&P20A or Twin
Head
T1 - T4: Locations 1 - 4
40 tracks for 8 mm X feeder,
Locations 2 and 4 for changeover table or
MTC2
5: Direction of transport , PCB conveyor with 5
areas
6: Room for stationary cameras
Restriction: When configuring the head, always
take into account the maximum component height
for the placement head concerned.
Overview
Configurations SIPLACE X Series
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Overview
53
3.1.2.3 SIPLACE X3 with 1 MTC2 - Configuration
3.1.2.4 SIPLACE X3 with 2 MTC2 - Configuration Options
3-5: SIPLACE X3 configuration options
Legend
Dimensions (L x W) 2.38 x 2.75 m
1, 3, 4: Gantry 1, 3, 4
Gantry 1 and 4 with CPP, C&P20A or Twin
Head
Gantry 3 with CPP or Twin Head
T1 - T4: Locaton 1 - 4
Location 1, 3, 4: 40 tracks for 8 mm X feeder
Location 2: Changeover table or MTC2
5: Direction of transport , PCB conveyor with 5
areas
3-6: SIPLACE X3 configuration options
Legend
Dimensions (L x W) 2.38 x 2.75 m
1, 3, 4: Gantry 1, 3, 4
Gantry 1 and 4 with CPP or Twin Head
Gantry 3 with CPP or Twin Head
T1 - T4: Locaton 1 - 4
Location 1, 3, 4: 40 tracks for 8 mm X feeder
Location 2: Changeover table or MTC2
5: Direction of transport , PCB conveyor with 5
areas
Overview
SIPLACE X Series Configurations
Student Guide (FSE) SIPLACE X Series and X4I
Overview Edition 01/2009 EN
54
3.1.2.5 SIPLACE X2 Configuration
3.1.2.6 SIPLACE X4I - Configuration
The machine is designed and configured for the best possible placement performance. The standard
configuration therefore has 4 gantries, each with one C&P20A placement head. Travel range
optimization has been achieved by rotating gantries 2 and 4. This also enables both gantries to work
independently of one another in the same placement area: I-placement mode.
The following options can be used to further reduce the cycle time in the placement line:
The combined PCB function
A third conveyor lane with shuttle, to replace the productivity lift
A conveyor with 4 lanes (quad lane)
3-7: SIPLACE X2 configuration options
Legend
1, 3: Gantry 1, 3
Gantry 1 with CPP, C&P20A or Twin Head
Gantry 3 with CPP, C&P20A or Twin Head
T1 - T4: Locaton 1 - 4
Location 1, 3: 40 tracks for 8 mm X feeder
Location 2, 4: Changeover table or MTC2
5: Direction of transport , PCB conveyor with 5
areas
Placement area 2 is always equipped with one
placement head which can place higher
components than placement area 1.
Legend
1. Prohibited areas
Due to the rotated gantries 2 and 4, the
marked areas can not be reached. This
applies with both C&P20A and CPP head
configurations.
