Head Modularity Slots in the Axis unit Axis Unit A364 S tudent Guide (FSE) SI PL ACE X Series and X4I Head Modularity Edition 01/2 009 EN 536 13.9.1.3 Axis Unit A364 with T win Head-T win Head Legend 1 Servo amplifier fo…
Head Modularity
Axis Unit A364 Slots in the Axis unit
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Head Modularity
535

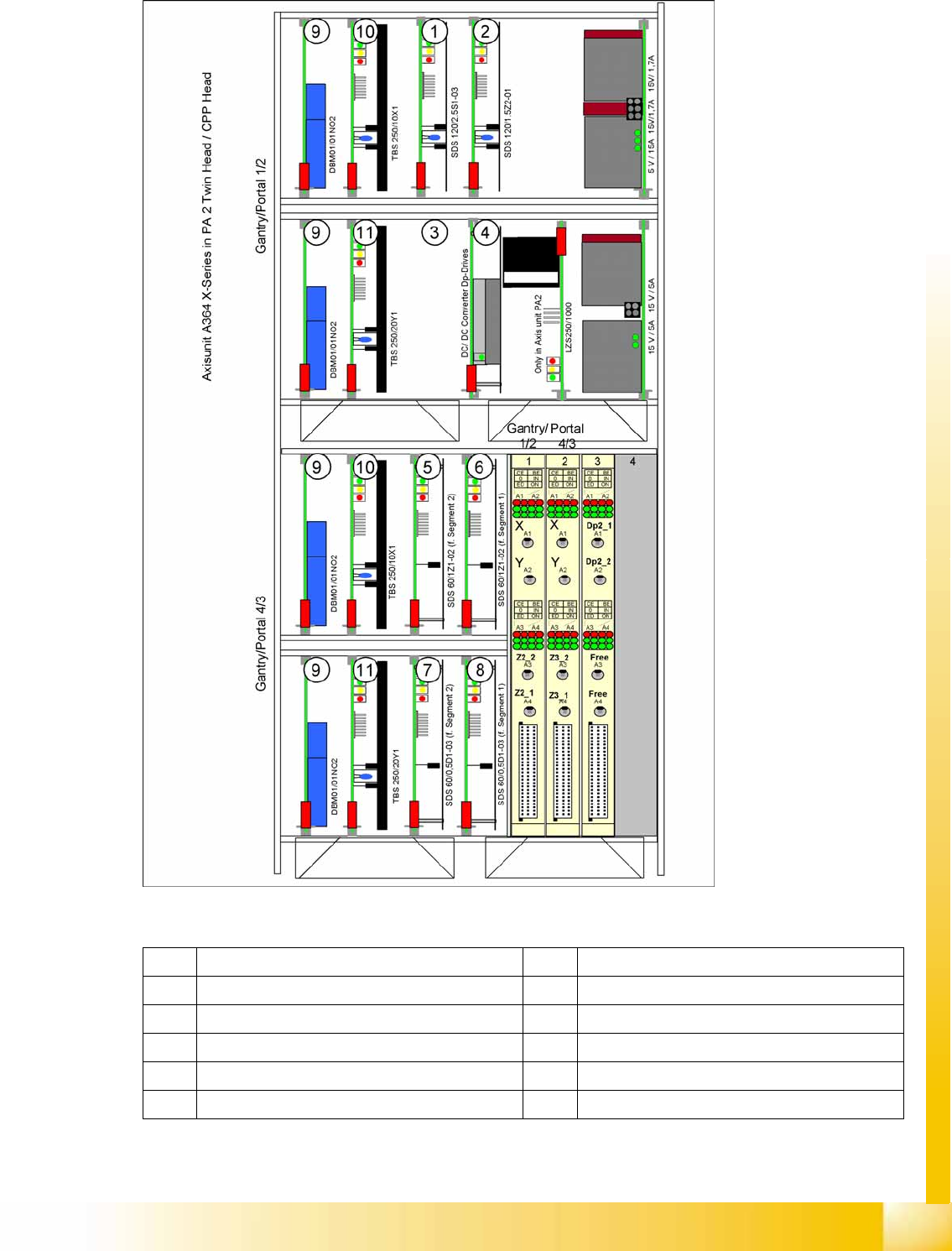

13.9.1.2 Axis Unit A364 with CPP-Twin Head
Legend
1 Servo amplifier star axis 7 Servo amplifier for D-axis Segment 2
2 Servo amplifier Z axis 8 Servo amplifier for D-axisSegment 1
3 Free space 9 Brake board for each X axis and Y axis
4 24V-DC/DC converter 10 Servo amplifier X axes
5 Servo amplifier for Z axis Segment 2 11 Servo amplifier Y axes
6 Servo amplifier for Z axis Segment 1
Head Modularity
Slots in the Axis unit Axis Unit A364
Student Guide (FSE) SIPLACE X Series and X4I
Head Modularity Edition 01/2009 EN
536

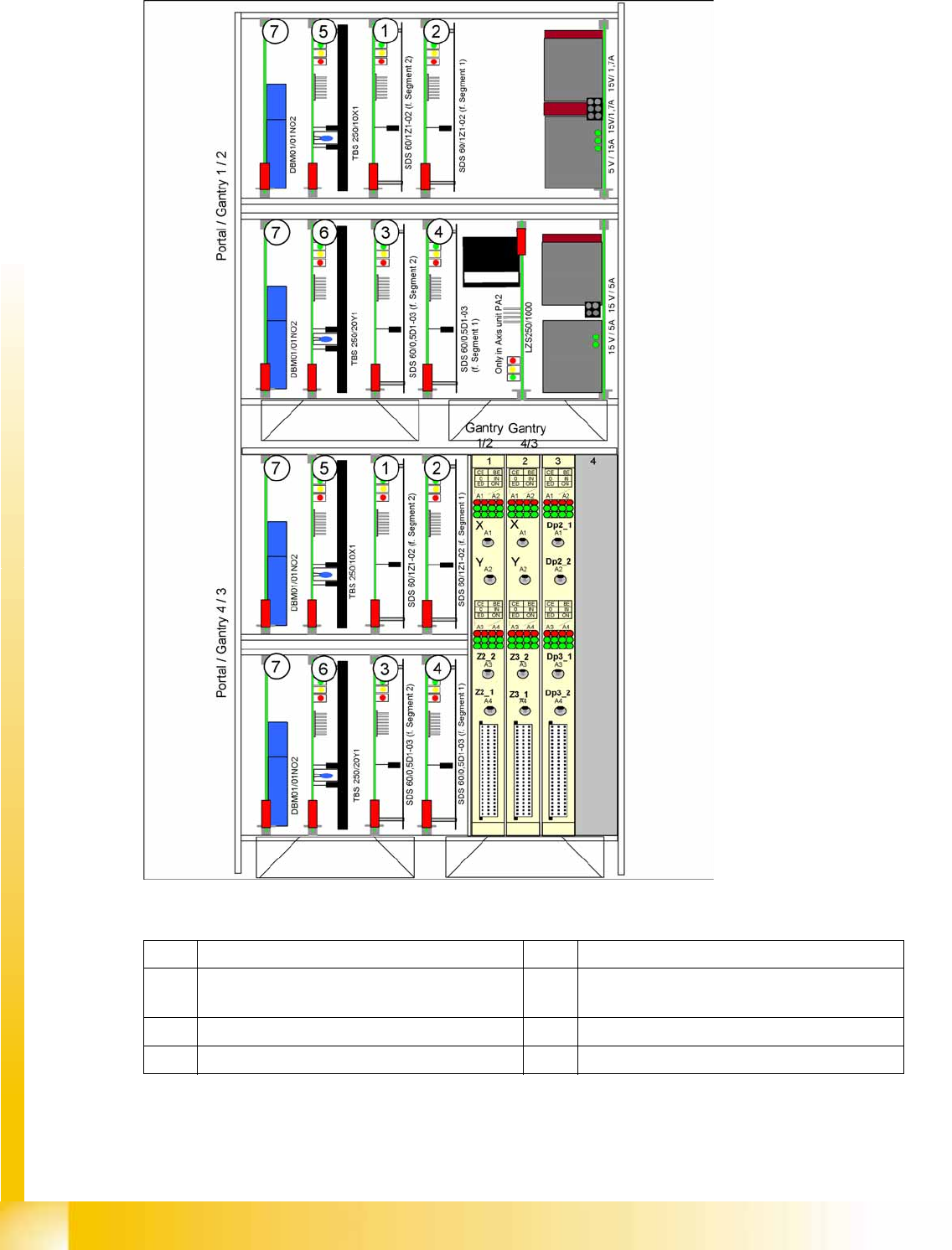

13.9.1.3 Axis Unit A364 with Twin Head-Twin Head
Legend
1 Servo amplifier for Z axis Segment 2 5 Servo amplifier for X axes
2 Servo amplifier for Z axis Segment 1 6 Servo board for Y axis, placement area 2,
gantry 3
3 Servo amplifier for D-axis Segment 2 7 Brake board for each X axis and Y axis
4 Servo amplifier for D-axisSegment 1
Head Modularity
Axis Unit A364 Slots in the Axis unit
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Head Modularity
537

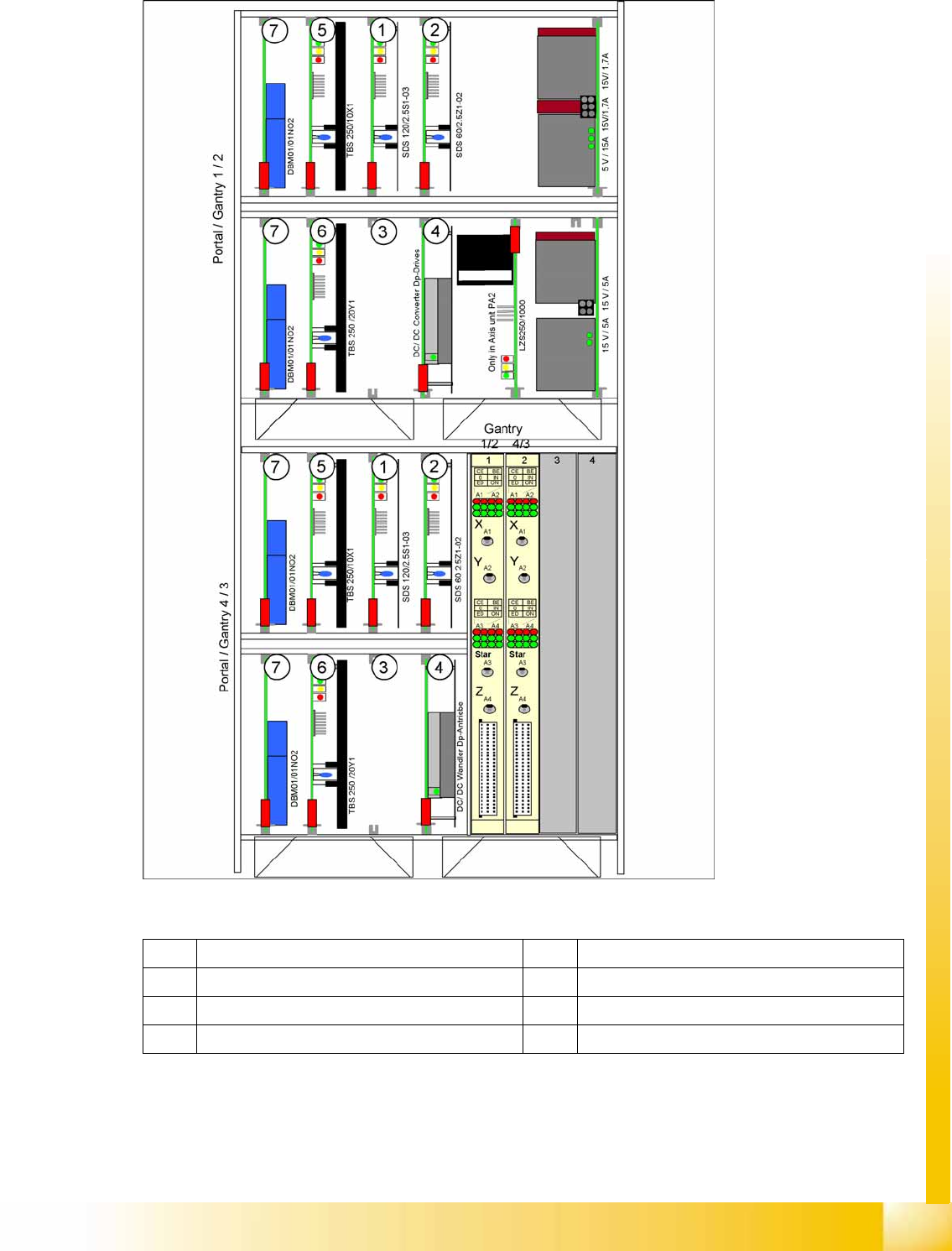

13.9.1.4 Axis Unit A364 with C&P20A-C&P20A
Legend
1 Servo amplifier star axis 5 Servo amplifier X axes
2 Servo amplifier Z axis 6 Servo amplifier Y axes
3 Free space 7 Brake board for each X axis and Y axis
4 24V DC/DC converter DP drives
