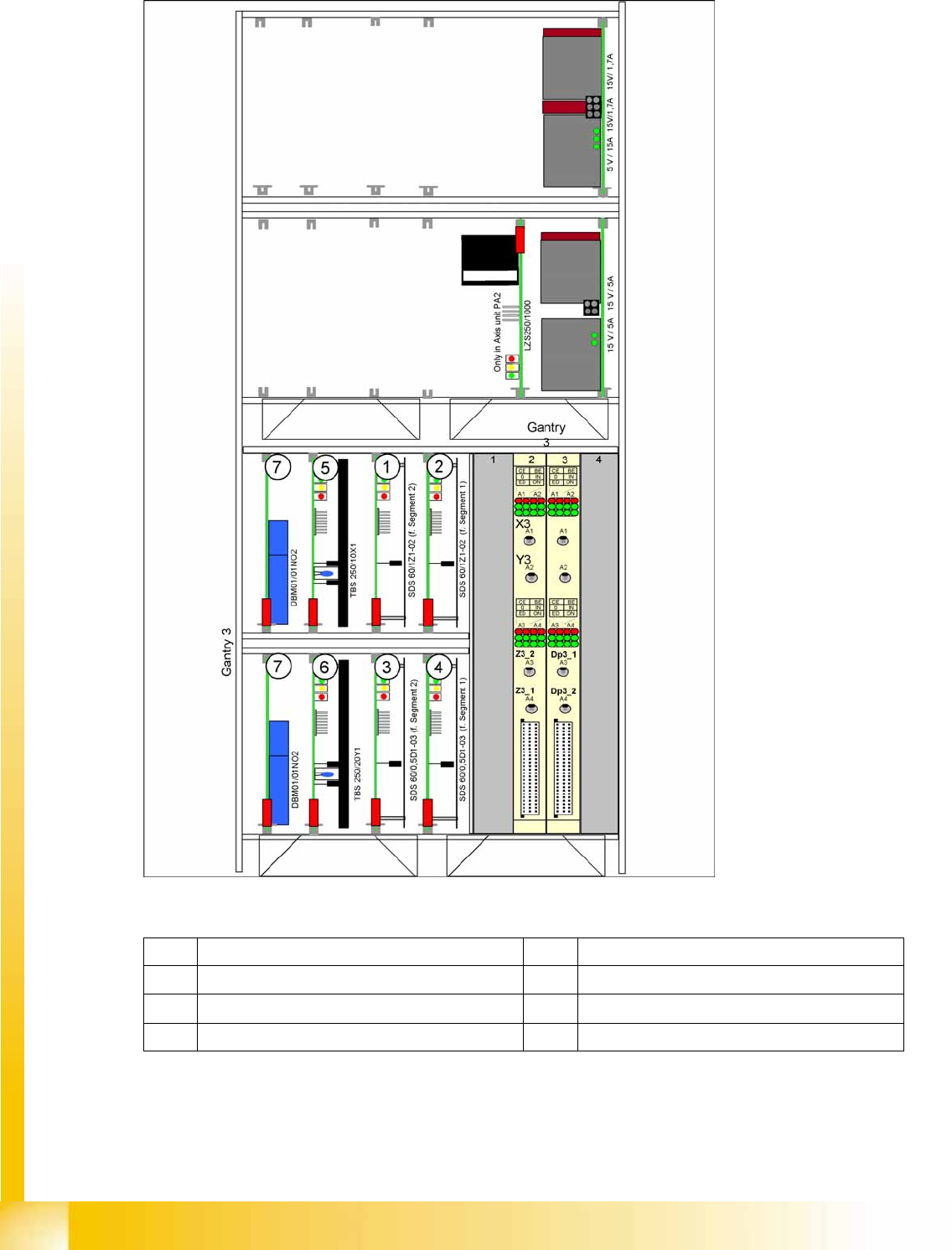

13.9.1.5 Axis Unit A364 with Twin Head
Legend
1 Servo amplifier for Z axis Segment 2 5 Servo amplifier for X axes
2 Servo amplifier for Z axis Segment 1 6 Servo amplifier for Y axes
3 Servo amplifier for D-axis Segment 2 7 Brake board for each X axis and Y axis
4 Servo amplifier for D-axisSegment 1
Head Modularity
Axis Unit A364 Hotlink Board Connections (Box PC)
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Head Modularity
539

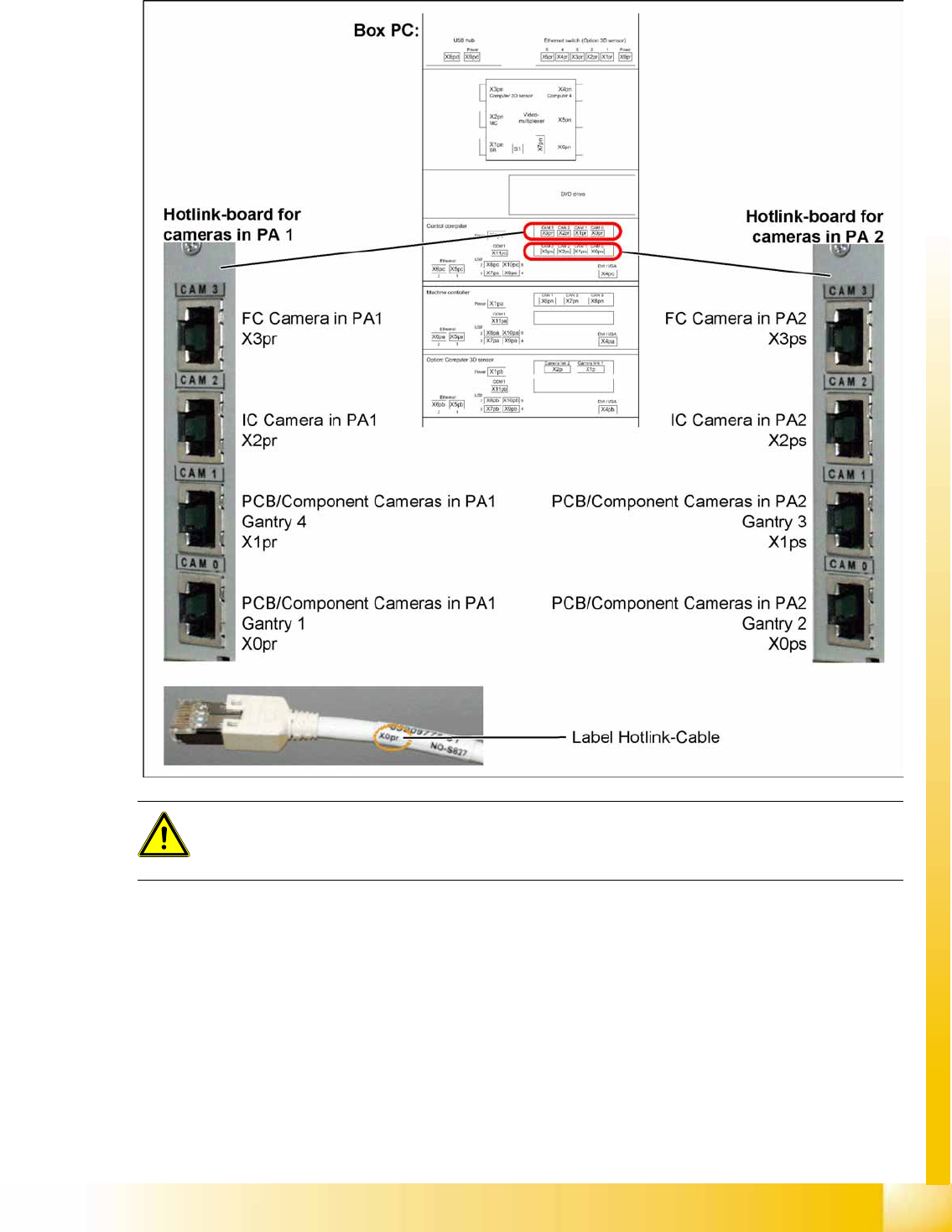

13.10 Hotlink Board Connections (Box PC)
ATTENTION: Hotlink cable
Do not connect the Hotlink cables which are not in use!!!
Do not confuse the Hotlink cable with the twisted pair cable!!!
