Head Modularity Room for Your Sketches and Notes Axis U nit A364 S tudent Guide (FSE) SI PL ACE X Series and X4I Head Modularity Edition 01/2 009 EN 542

Head Modularity

Axis Unit A364 Room for Your Sketches and Notes

Student Guide (FSE) SIPLACE X Series and X4I

Edition 01/2009 EN Head Modularity

541

Head Modularity

Room for Your Sketches and Notes Axis Unit A364

Student Guide (FSE) SIPLACE X Series and X4I

Head Modularity Edition 01/2009 EN

542

MTC2

Functional principles Overview

Student Guide (FSE) SIPLACE X Series and X4I

Edition 01/2009 EN MTC2

543

14 MTC2

14.1 Overview

14.1.1 Functional principles

The MTC2 has two towers which work independently of one other. They each have a lifting axis and a

feed axis. The lifting axes can be set up with a large number of waffle pack trays in cassettes and

transport these vertically. The feed axes transport waffle pack trays which have been set up horizontally

to the pick-up position of the SIPLACE station.

The waffle pack trays (WPT) to be set up are placed in waffle pack tray carriers (WTC). They are then

inserted in a cassette one above the other with a small gap between each of them, and fixed in place

with the WTC interlock. The cassettes are fixed in place in the tower with the cassette interlock.

The lifting axes are moved vertically on linear carriages which are driven by a servo motor with a spindle.

The gradient of 20 degrees from the vertical axis reduces the travel range of the WTCs to the pickup

position of the SIPLACE station.

The WTCs are also moved horizontally on linear carriages which are driven by a servo motor with a belt

drive. A driver locks into the side of the WTC and moves it out of the cassette into the pick-up position.

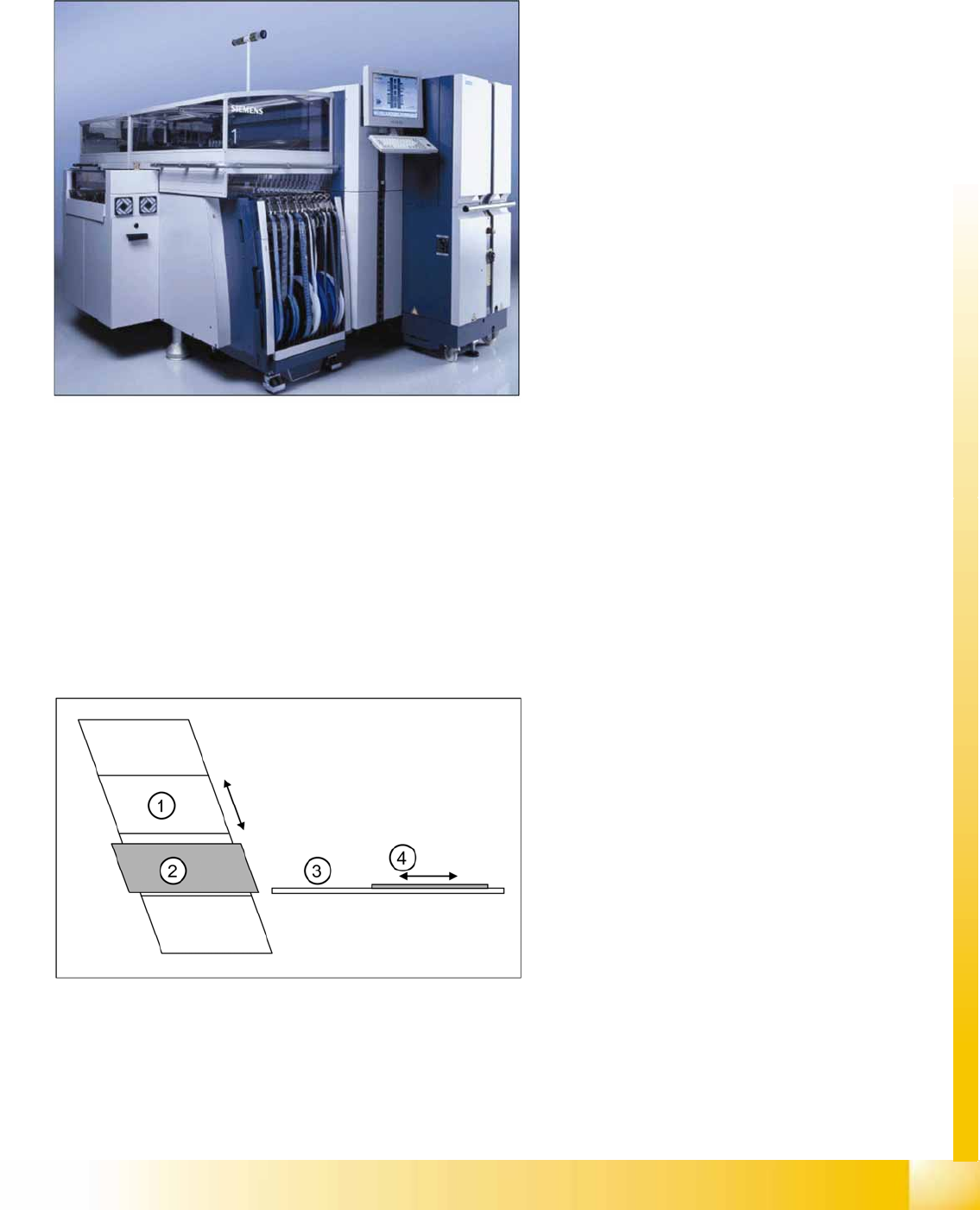

14-1: Complete view of SIPLACE machine with MTC2 in location 2

The MTC2 shows a unit which, as a whole, can be

used as a moveable changeover table.

The MTC2 was developed for the machine

generation SIPLACE HF/HF3 and can also be

installed in the machine generation SIPLACE X.

The MTC2 can be installed in locations 2/4 of

SIPLACE X2, X3 and X4 machines.

14-2: MTC2 function

Legend

1. Lifting axis

2. Cassette with WTCs

3. Feed axis

4. WTC on the feed axis
