MTC2 Operational Safety Overview S tudent Guide (FSE) SIPL ACE X Series and X4I Edition 01/2009 EN MTC2 547 W arning Labels 14-6: Information label be low the main switch 14-5: Location of the warning labels on the MTC2 …
MTC2
Overview Operational Safety
Student Guide (FSE) SIPLACE X Series and X4I
MTC2 Edition 01/2009 EN
546
14.1.4 Operational Safety
14.1.4.1 Safety Instructions
Warning and Information Labels on the MTC2
ATTENTION:
The following pages contain only the most important safety information.
X Please observe the safety instructions detailed in the current operating instructions.

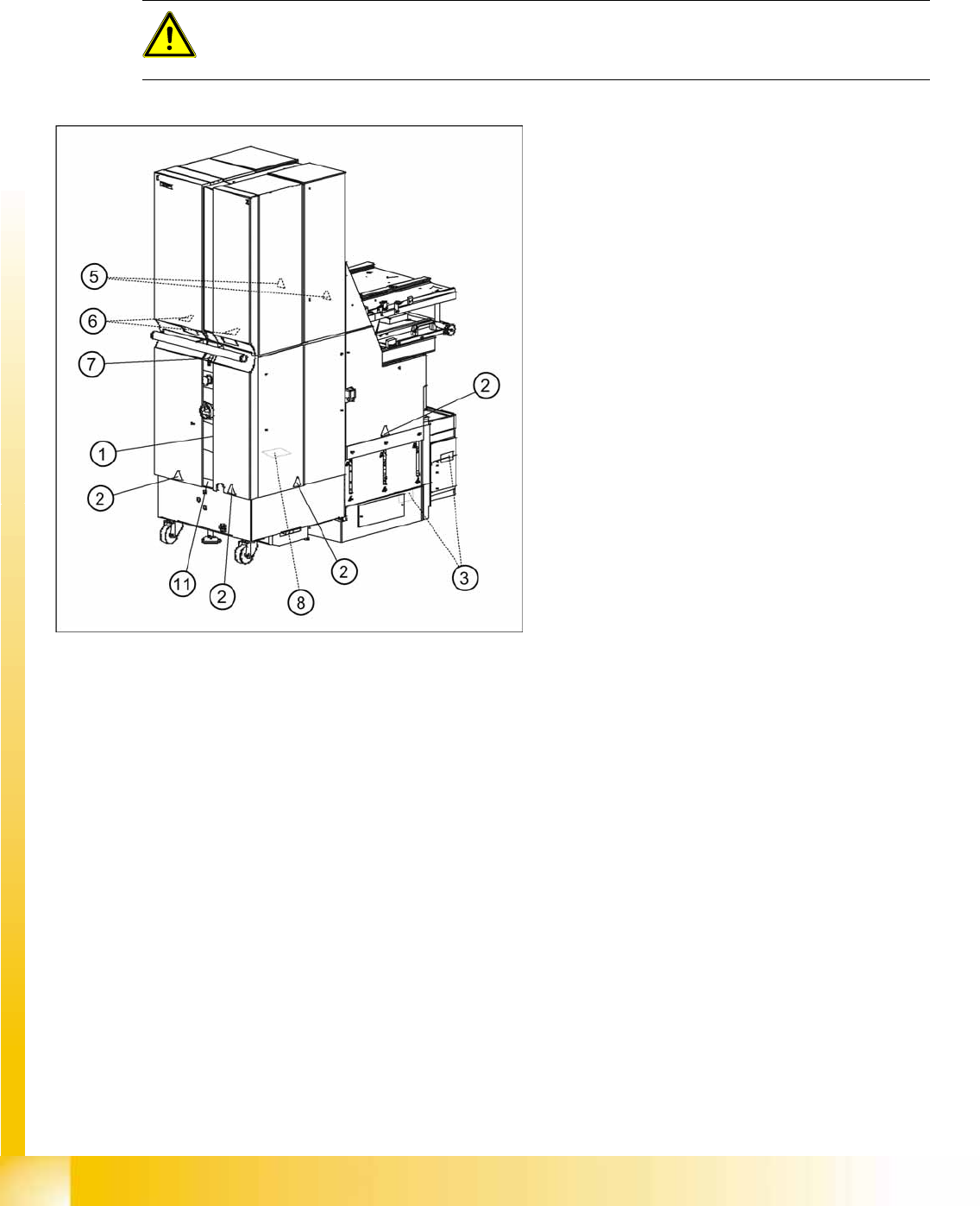

14-4: Location of the warning labels on the MTC2 (right-hand side)
Legend
1. Information label below the main switch
2. Warning labels on the enclosures around the
electric parts
3. Warning label by the lifting axis motors
4. Warning labels by the toothed belts of the
lifting axis and feed axis
5. Warning labels in the feeding area and the
lifting frame area
6. Warning labels in the refill area (behind the
protective doors)
7. Information label at the ground terminal
8. Warning labels on the motor controller covers
(below the enclosure)
9. No loads warning by the feed axis
10. Information labels above the guides for the
fork lift truck
11. Information label for the cranking device
MTC2
Operational Safety Overview
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN MTC2
547
Warning Labels
14-6: Information label below the main switch

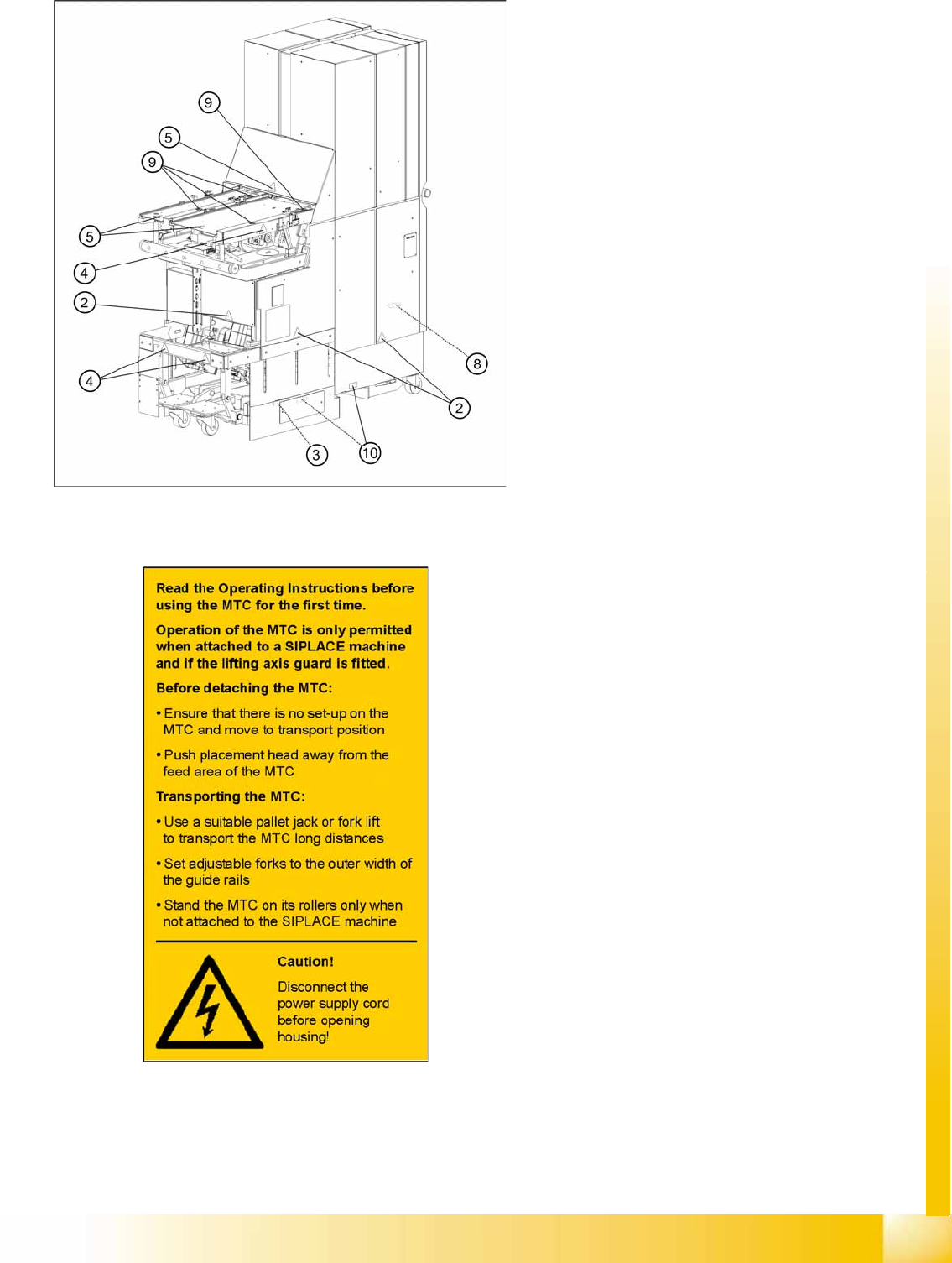

14-5: Location of the warning labels on the MTC2 (left-hand side)
Legend
1. Information label below the main switch
2. Warning labels on the enclosures around the
electric parts
3. Warning label by the lifting axis motors
4. Warning labels by the toothed belts of the
lifting axis and feed axis
5. Warning labels in the feeding area and the
lifting frame area
6. Warning labels in the refill area (behind the
protective doors)
7. Information label at the ground terminal
8. Warning labels on the motor controller covers
(below the enclosure)
9. No loads warning by the feed axis
10. Information labels above the guides for the
fork lift truck
11. Information label for the cranking device
MTC2
Overview Operational Safety
Student Guide (FSE) SIPLACE X Series and X4I
MTC2 Edition 01/2009 EN
548

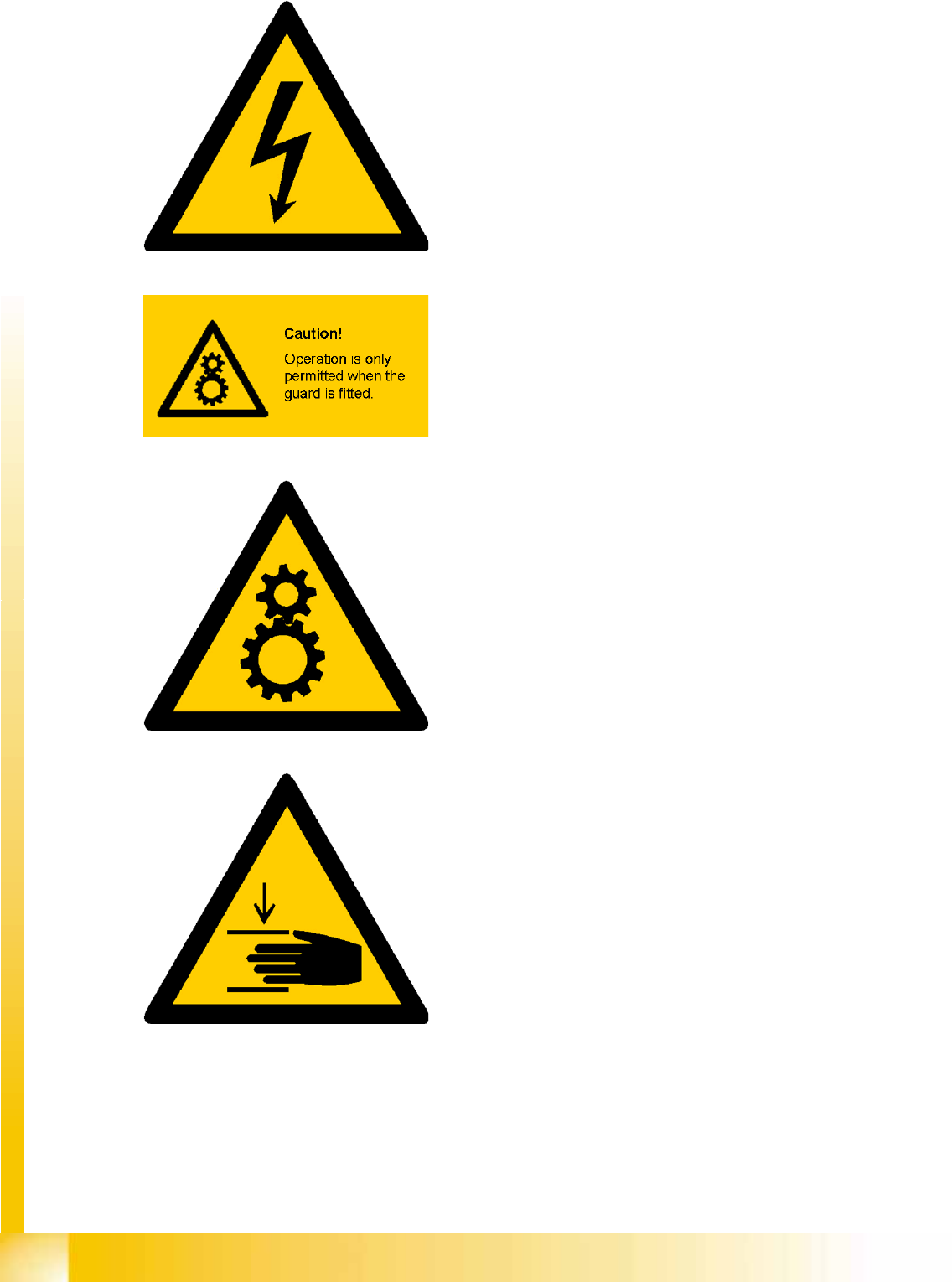

14-7: Warning labels on the enclosures around the electric parts
14-8: Warning label by the lifting axis motors
14-9: Warning labels by the toothed belts of the lifting axis and feed axis
14-10: Warning labels in the feeding area and the lifting frame area
