14.3.3.2 Guide Rails and Stopper Bars
Tools and accessories
1 set of Allen keys
Preparations
X Move the lifting axis into the refill position for cassette 1 and completely set up the MTC2 with empty
cassettes (see User Manual).
X Set up every cassette with an empty WTC in the bottom and in the top level.
Checking and setting the guide rails, top
X Manually open the WTC interlock for each WTC which has been set up and check that the WTC can
be pulled out approx. 0.5 to 1mm up to the closed guide rail. When closing the WTC interlock, the
WTC must automatically click into place.
X Open the guide rail. When closing the guide rail, use a WTC which has been pulled out to check
either:
that the WTC engages in the WTC interlock again on its own or
that the guide rail cannot be closed.
X Set the position of the guide rail (by moving it in its fixing holes), if the behavior described above is
not observed.
Checking and setting the stopper bars, top
X Manually open the side interlock (leaf springs) for each WTC and check that the WTC can be pushed
through approx. 0.5 to 1mm up to the stopper bar. When closing the interlock, the WTC must click
into place automatically.
X Set the position of the stopper bar (by moving it in its fixing holes), if the behavior described above
is not observed. If necessary, remove the covers behind the doors.
Check on tower 1 that a WTC XL with 25 mm-high components can be transported without colliding
with the stopper bar. If necessary, correct the position of the stopper bar.
14-49: Guide rails and stopper bars in the upper frame
Legend
1. Guide rail (shown here for tower 1)
2. Stopper bar (shown here for tower 1)
MTC2
Adjustments Lifting Axes MTC2 Calibration and Settings
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN MTC2
587
Checking and setting the stopper bars, bottom
14-50: Guide rails, bottom
X Move the doors fully down
X Remove the side covers
X Set the position of the guide rails until they are
approx. 0.5 through 1mm away from the
WTCs.
WARNING:
The stopper bar and guide rail must
under no circumstances touch the
WTCs!
Legend
1. Guide rails
2. Fastening screws
MTC2
MTC2 Calibration and Settings Adjustments Lifting Axes
Student Guide (FSE) SIPLACE X Series and X4I
MTC2 Edition 01/2009 EN
588
14.3.3.3 Cassette guide rails
Tools and Equipment
1 set of Allen keys
Preparations
X Empty the MTC2 completely (see the User Manual).
X Prepare an empty cassette XL.
Setting the cassette guide rails
X Move the lifting axis into the refill position for cassette 1-> check the zero offset.
X Loosen the securing screws on both cassette guide rails.
X Tighten the securing screws of the inner cassette guide rail at the position in which the cassette can
still be inserted into the tower smoothly.
X Position the second cassette guide rail by means of the cassette parallel to the first cassette, so that
the cassette can be moved easily but without any lateral play. Tighten the securing screws here as
well.
X Check the setting of the other refill positions. -> "Check the refill positions“). If necessary, correct the
position of the cassette guide rails which has been set.
NOTE:
An empty cassette is needed to set the cassette guide rails.

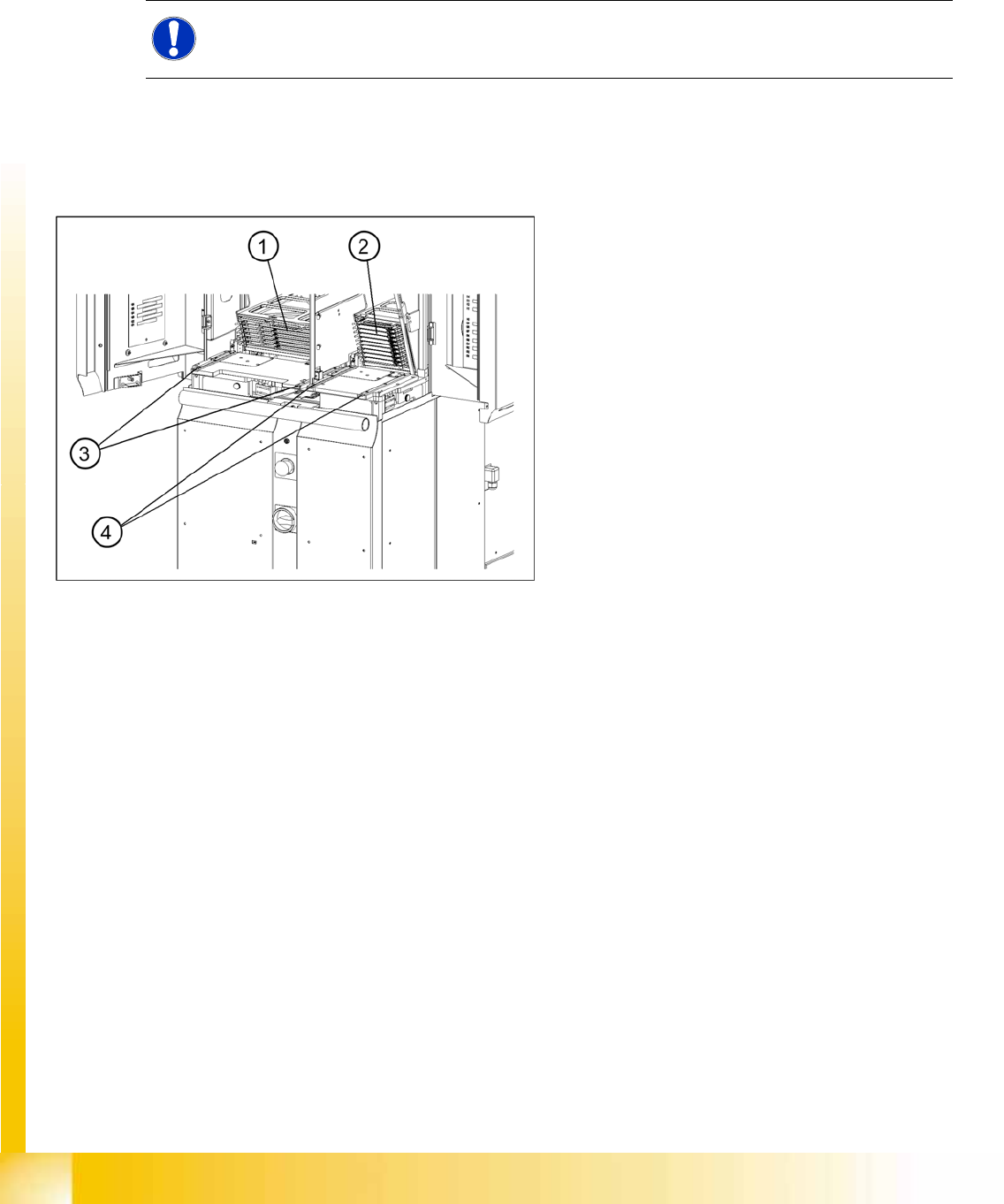

14-51: Setting the cassette guide rails
Legend
1. Cassette XL in the refill position for tower 1
2. Cassette in the refill position for tower 2
3. Cassette guide rails for tower 1
4. Cassette guide rails for tower 2
