14.3.4 Adjustments feed axes

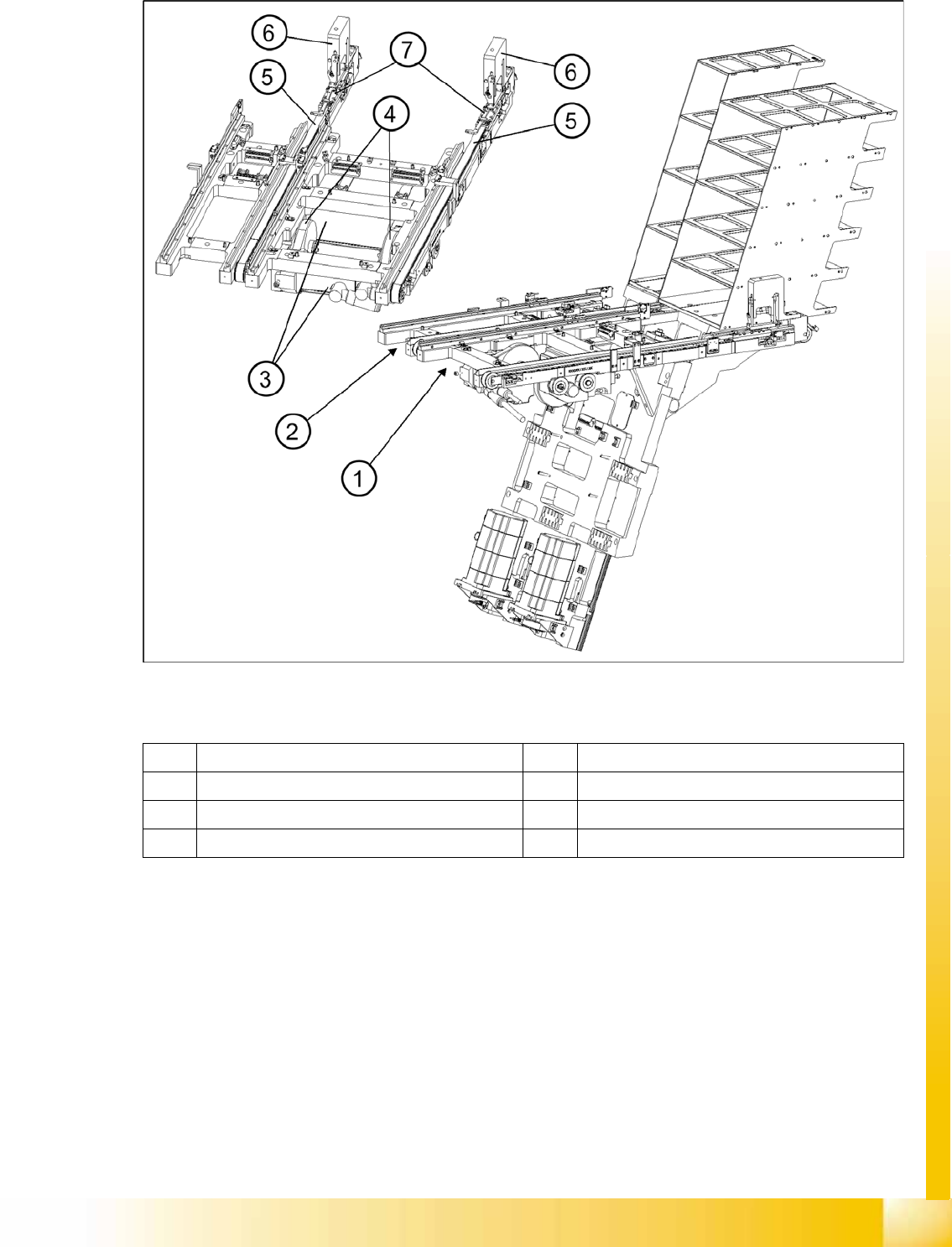

14-52: Overview of the feed axes (cover plates and belt covers removed)
Legend
1 Feed axis, tower 1 5 Toothed belt
2 Feed axis, tower 2 6 Disengaging mechanisms
3 Servo motors of the feed axes 7 Driver
4Drive belt
MTC2
MTC2 Calibration and Settings Adjustments feed axes
Student Guide (FSE) SIPLACE X Series and X4I
MTC2 Edition 01/2009 EN
590
14.3.4.1 Belt tension
Tools and Equipment
Belt frequency measurement device (inductive)
2 belt tension strips
1 set of Allen keys
1 set of open-ended wrenches
14-53: Checking and setting the belt tension
Legend
Preparations
X Empty the MTC2 completely (see the User Manual).
X Undock the MTC2 from the SIPLACE station (see User Manual).
X Remove both cover plates between the rails of the feed axes.
Checking and Setting the Drive Belt
X Carry out the relevant preparations (see Section ( Preparations
J
584 ) ).
X Measure the belt tension with the belt frequency measuring device in the following way:
X Make the drive belt oscillate and measure the frequency in the middle of the sloping surface,
between the motor axis and the belt wheel (for the measuring point, seeSection ( Tools and Equip-
ment
J
584 ) ).
X You must set the belt tension if the measured frequency deviates from the nominal value (120 Hz ±
5 Hz):
1 Drive belt (shown here for tower 2) 6 Eccentric axle of toothed belt with clamping
screw and flats for setting (shown here for tower
1)
2 Motor mounting block with clamping screws
(shown here for tower 1)
7 Measuring point, toothed belt (shown here for
tower 1)
3 Adjustment screw, drive belt (shown here for
tower 1)
8 Outer deflection roll (shown here for tower 1)
4 Measuring point, drive belt (shown here for
tower 2)
9 Driver
5 Toothed belt (shown here for tower 1)
MTC2
Adjustments feed axes MTC2 Calibration and Settings
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN MTC2
591
X Turn the adjusting screw of the drive belt as far as it will go. Before doing this you will need to loosen
the lock nut.
X Loosen the two clamping screws on the mounting block of the motor.
X Use the adjusting screw to raise the belt tension (by turning in a clockwise direction) or lower it (by
turning in an anticlockwise direction), until the nominal frequency is achieved. Tighten the lock nuts
each time you measure the belt tension.
X Firmly tighten the clamping screws and varnish them with red screw locking varnish.
X Check the belt tension again.
X Secure the cover plates and dock the MTC2 onto the SIPLACE station (see the User Manual).
X Check the zero offset of the feed axis -> „Teach the zero point", if you have changed the belt tension.
Checking and setting the toothed belt
X Carry out the relevant preparations (see Section ( Preparations
J
590 ) ).
X Measure the belt tension with the belt frequency measuring device in the following way:
X Make the toothed belt oscillate and measure the frequency - from the underside of the belt - in the
middle, between the outer deflection pulley and the first deflection pulley of the drive (for the
measuring point, see Section ( Tools and Equipment
J
590 ) ). Make sure that the driver is
approximately in its reference position.
X You must set the belt tension if the measured frequency deviates from the nominal value (70 Hz ± 2
Hz):
X Place the open-ended wrench on the setting flats of the eccentric axis.
X Loosen the clamping screw on the eccentric axis and maintain the position of the axis with the open-
ended wrench.
X Raise or lower the belt tension with the open-ended wrench (turning it in a direction depending on
the position of the eccentric axis), until the nominal frequency is achieved. Firmly tighten the
clamping screw each time you measure the belt tension and varnish it with red screw locking varnish.
X Check the belt tension again and make sure the screws are varnished with red screw locking varnish.
X Secure the cover plates and dock the MTC2 onto the SIPLACE station (see the User Manual).
X Check the zero offset of the feed axis -> „Teach the zero point", if you have changed the belt tension.
See also:
J
Tools and Equipment [
J
584]
14.3.4.2 Limit switch
Tools and accessories
1 set of Allen keys,
1 set of screwdrivers
Preparations
X Check the zero offset -> "Check the zero point".
X Check the transfer position -> "teach transfer position".
Setting the limit switches
X Move the feed axis into the transfer position (see Section ).
X Set the maximum position of the limit switch above its limit switch holder until there is a distance of
approximately 1 mm between the driver in the transfer position and the contact roller of the limit
switch.
X Move the feed axis into the zero position --> „Check the zero point“.
ATTENTION:
Before the limit switches are set, the zero offset and the transfer position must be checked (see
Section (14.3.2.2 Feed axis
J
575 ) ).
