Adjustments feed axes MTC2 Calibration and Settings
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN MTC2
597
14.3.4.4 Disengaging mechanism
Tools and Equipment
1 set of Allen keys
Preparations
X Empty the MTC2 completely (see the User Manual).
X Move the feeder axis to the zero position (see Section (14.3.2.2 Feed axis
J
575 ) ) and engage
the driver into the WTC.
Setting the disengaging mechanism
X Move the driver over the belt until it lies outside the disengaging mechanism.
X Check that the driver in its dead center position engages centrally with the disengaging aperture
when it is moved back.
X When the guide roller is pushed through the middle of the aperture, set the position of the aperture
with the 4 securing screws of the disengaging mechanism.
14-59: Setting the disengaging mechanism
Legend
1. Driver guide roller in dead center position
2. Disengaging mechanism aperture
3. Disengaging mechanism securing screws
MTC2
MTC2 Calibration and Settings Converting the power supply
Student Guide (FSE) SIPLACE X Series and X4I
MTC2 Edition 01/2009 EN
598
14.3.5 Converting the power supply
To operate the MTC2 in the USA or in Japan, the power supply needs to be changed from 400 V, 50 Hz
to 208/204 V, 50/60 Hz.
14.3.5.1 Tools and Equipment
1 set of screwdrivers
3 additional bridges
14.3.5.2 Procedure
NOTE:
To convert the power supply from 208/204 V to 400 V, the same procedure must be carried out
in the reverse order.
14-60: Electronics board
Legend
1. Bridges on the voltage distributor terminal X01
2. Motor Circuit Breaker
MTC2
Converting the power supply MTC2 Calibration and Settings
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN MTC2
599
14.3.5.3 Voltage distributor terminal X01
14.3.5.4 Motor Circuit Breaker

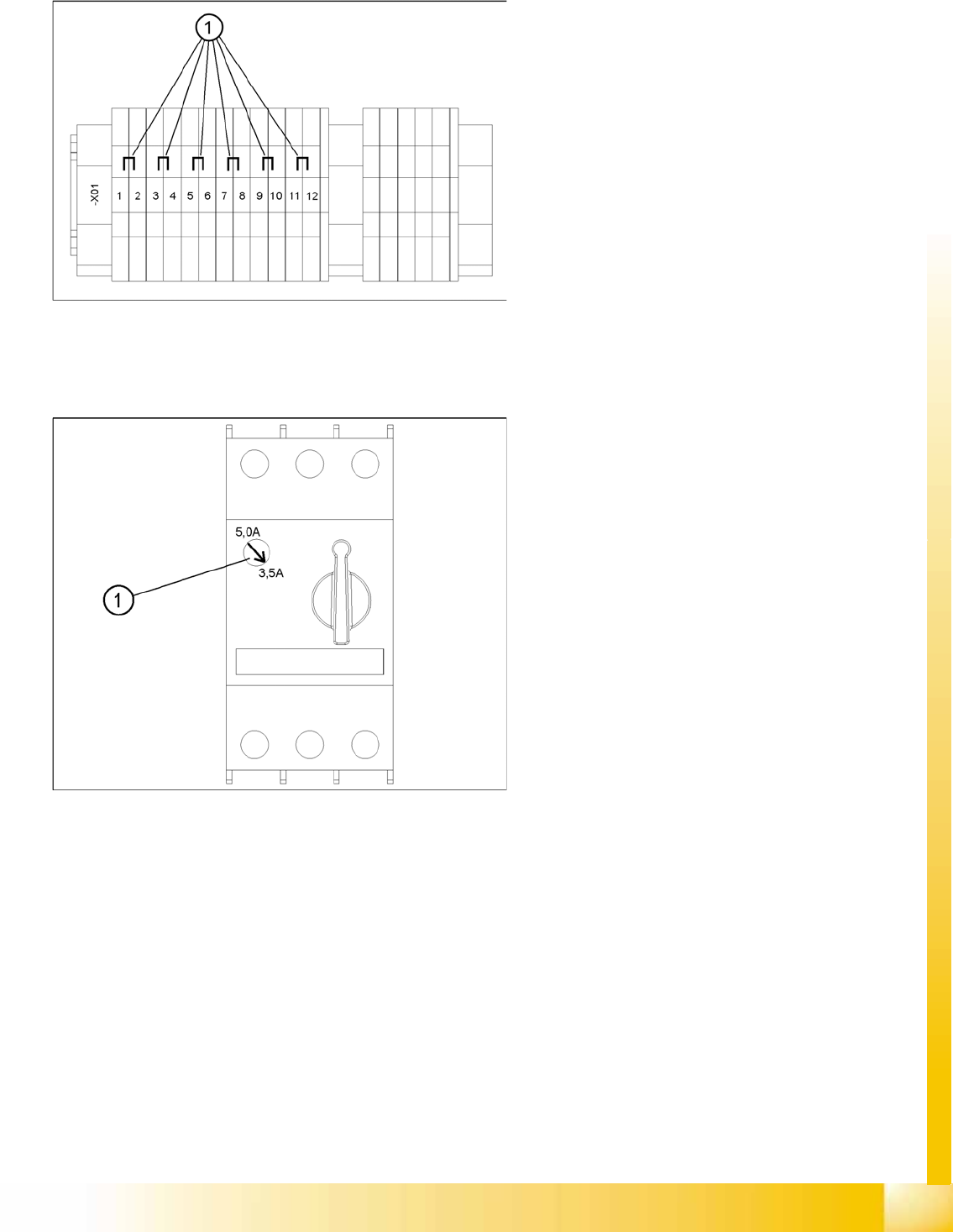

14-61: Voltage distributor terminal X01
Legend
1. Bridges on the voltage distributor terminal X01
X Removing the three bridges between 2-3, 6-7
and 10-11.
X Connect the six bridges between 1-2, 3-4, 5-6,
7-8, 9-10 and 11-12.
14-62: Motor Circuit Breaker
Legend
1. Rotary regulator of the motor protection switch
X It is always 3.5 A.
