Measuring Equipment and T ools Scope of Delivery Belt Tension Device [00326015-01] S tudent Guide (FSE) SIPL ACE X Series and X4I Edition 01/2009 EN Measuring Equipment and T ools 627 15.6 Belt T ension Device [00326015-…
Measuring Equipment and Tools
Track Signal Tester [00343785-01] Scope of Delivery
Student Guide (FSE) SIPLACE X Series and X4I
Measuring Equipment and Tools Edition 01/2009 EN
626

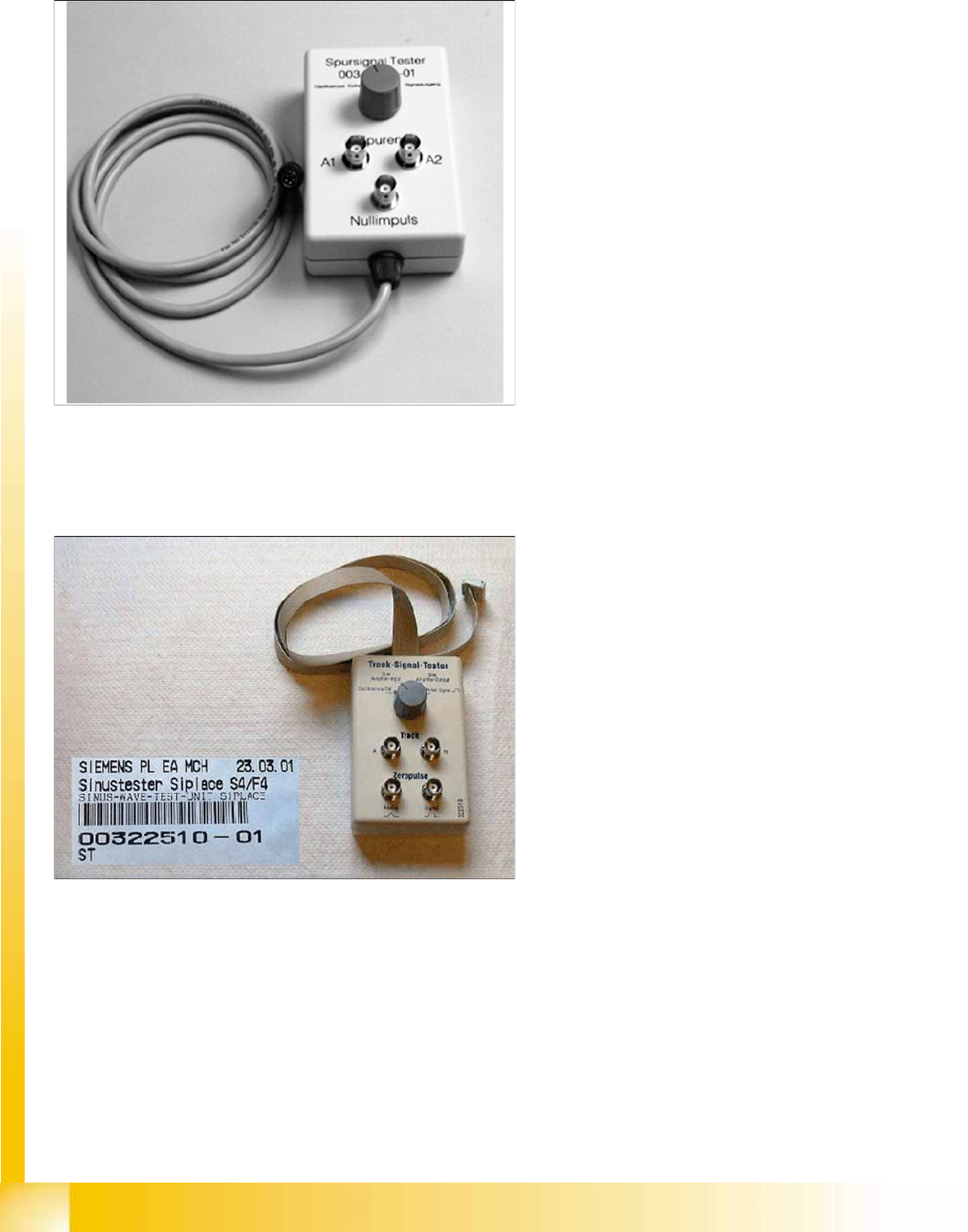

15.4 Track Signal Tester [00343785-01]
15.5 Track Signal Tester [00322510-01]
Application:
The track signal tester is used to test the track
signals of the incremental measurement
system for the gantry axes (from SIPLACE
HS50).
Application:
The track signal tester is used to test the track
signals of the incremental measurement
system - particularly for the head axes. It is
also used for the track signals of the gantry
axes on older SIPLACE machines (S20, F4).
Measuring Equipment and Tools
Scope of Delivery Belt Tension Device [00326015-01]
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Measuring Equipment and Tools
627

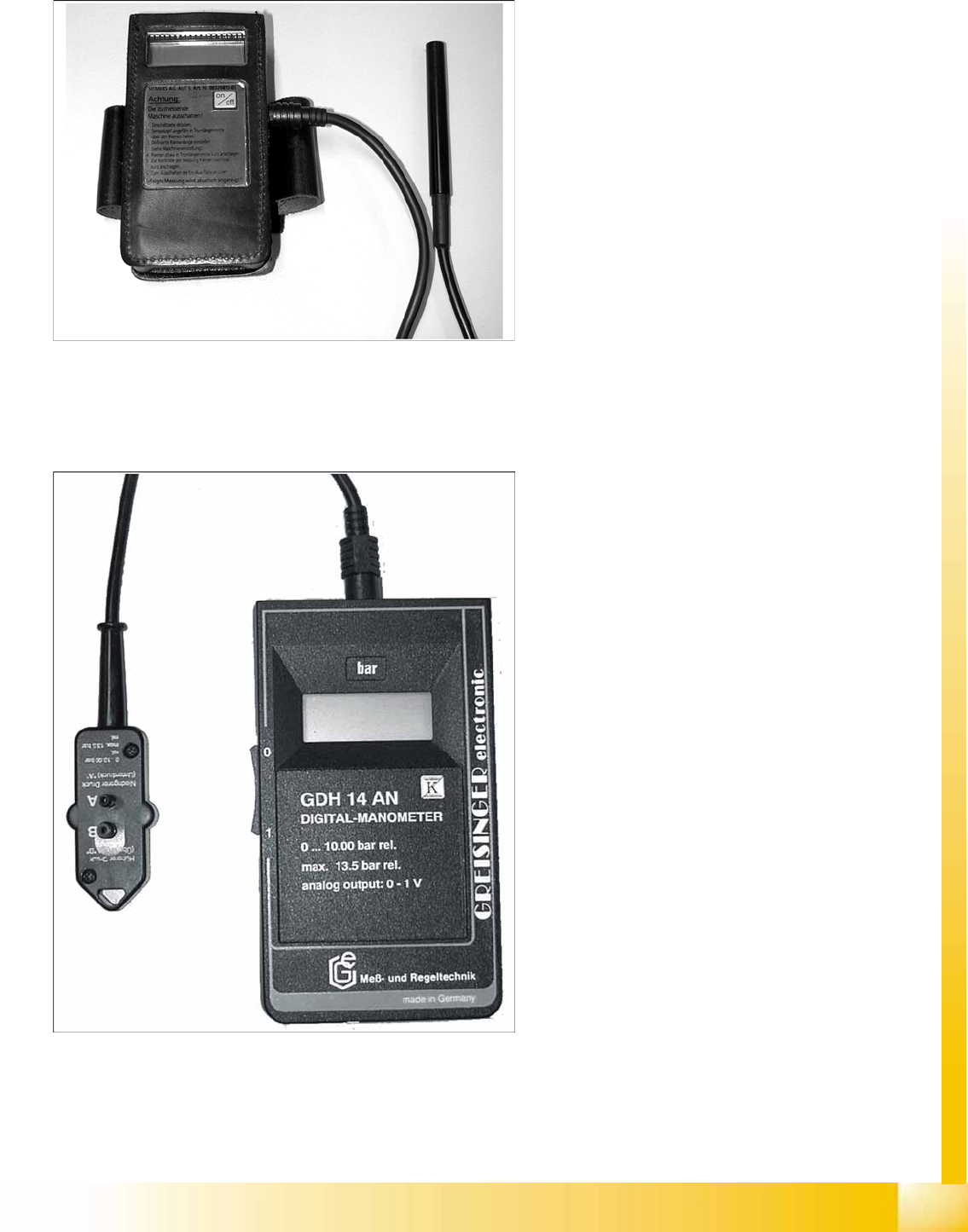

15.6 Belt Tension Device [00326015-01]
15.7 SIPLACE Compressed Air Tester [00311487-01]
Application:
The belt tension measuring device is used to
measure the belt tensions (toothed belt) at the
machine.
Application:
The compressed air tester is used to set the air
blast at the C&P6 and C&P12 placement
heads in the SIPLACE placement machines.
Measuring Equipment and Tools
Location Tester Scope of Delivery
Student Guide (FSE) SIPLACE X Series and X4I
Measuring Equipment and Tools Edition 01/2009 EN
628

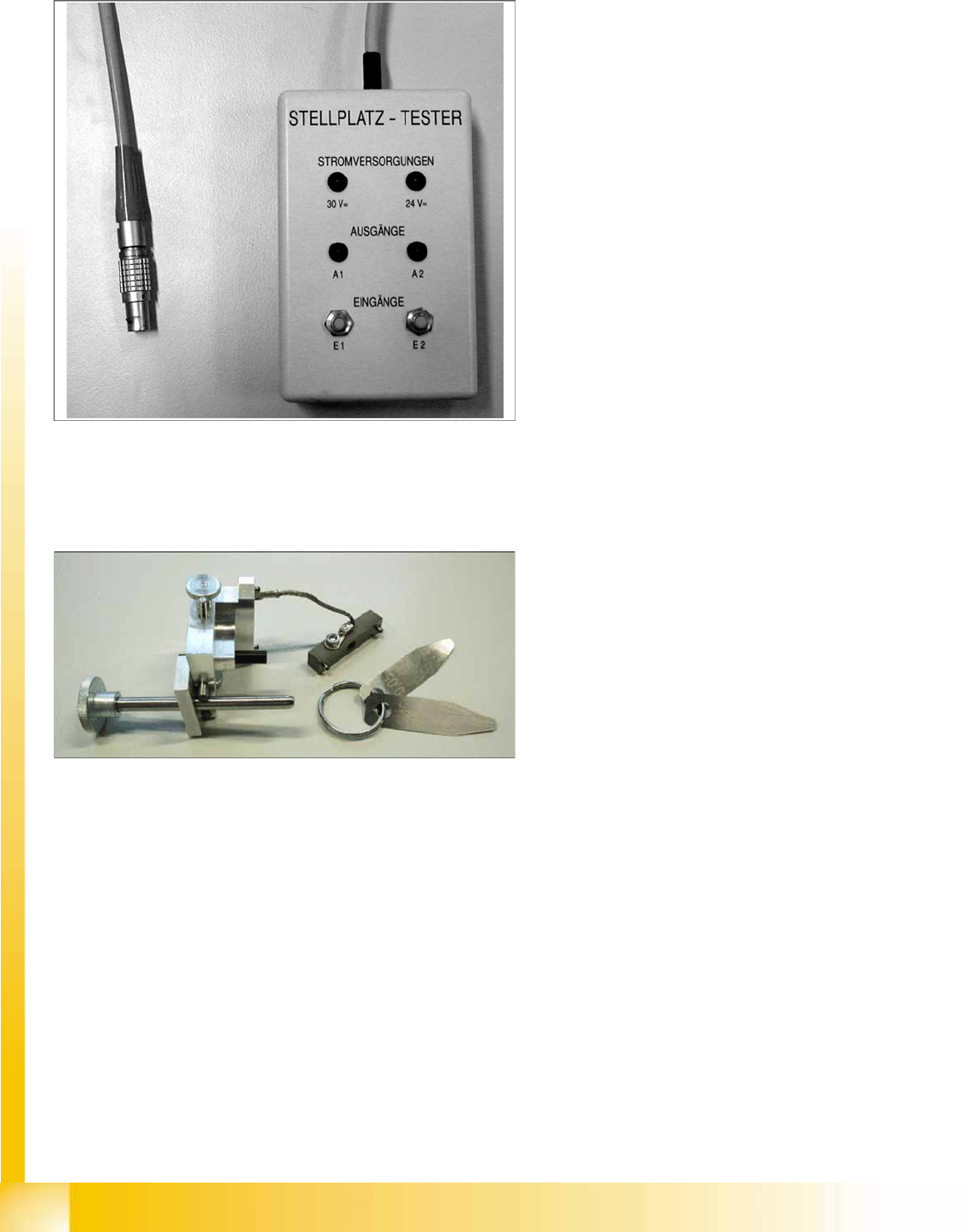

15.8 Location Tester
15.9 Z-End Stopper Star Gauge for C&P6/12 [03019865-01]
Application:
The location tester is used to check the feeder
connections at the communication unit of the
changeover table.
Application:
The gauge is used to set the end stop position
of the C&P head Z axis.
