Measuring Equipment and Tools
Calibration Tool [03010565-01] Scope of Delivery
Student Guide (FSE) SIPLACE X Series and X4I
Measuring Equipment and Tools Edition 01/2009 EN
630

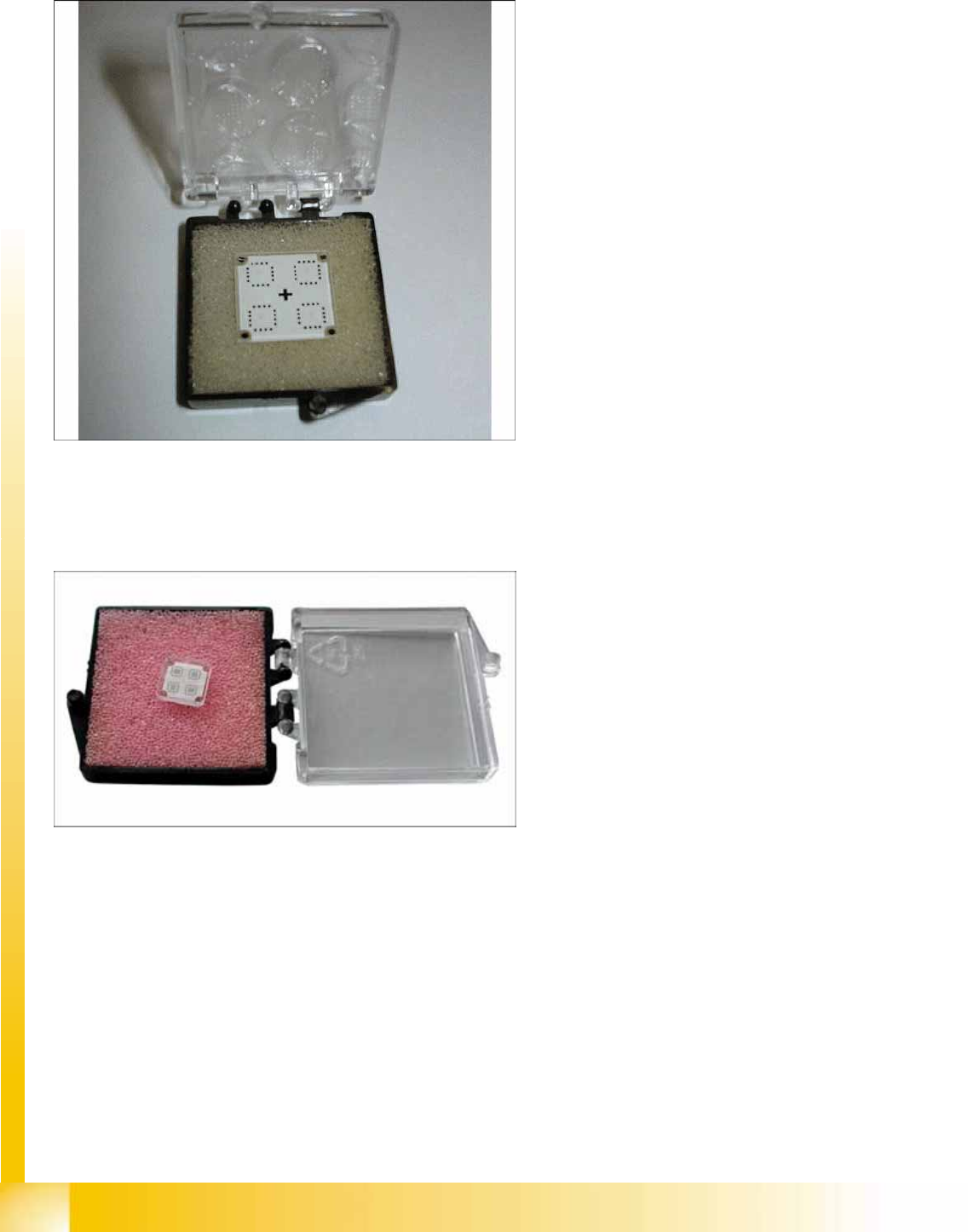

15.11 Calibration Tool [03010565-01]
15.12 Calibration Tool [003034148-xx]
Application:
The calibration tool [003010565-xx] is used for
calibration of the C&P6/12, CPP, P&P and
Twin Head (for X-series) placement heads.
Application:
The calibration tool [003034148-xx] is used for
the C&P20A placement head.
It is used in X series machines for calibration
of the component camera SST23.
Measuring Equipment and Tools
Scope of Delivery Calibration Nozzle for Twin Head [03008862-xx]
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Measuring Equipment and Tools
631
15.13 Calibration Nozzle for Twin Head [03008862-xx]
15.14 Setting Gauge for Board Clamping [00369202-01]
15.15 Setting Gauge for Conveyor Laser Light Barrier
Application:
The calibration nozzle is used to calibrate the
D axis of the Twin Head or P&P head.
Measuring Equipment and Tools
Room for Your Sketches and Notes Scope of Delivery
Student Guide (FSE) SIPLACE X Series and X4I
Measuring Equipment and Tools Edition 01/2009 EN
632
15.16 Room for Your Sketches and Notes
