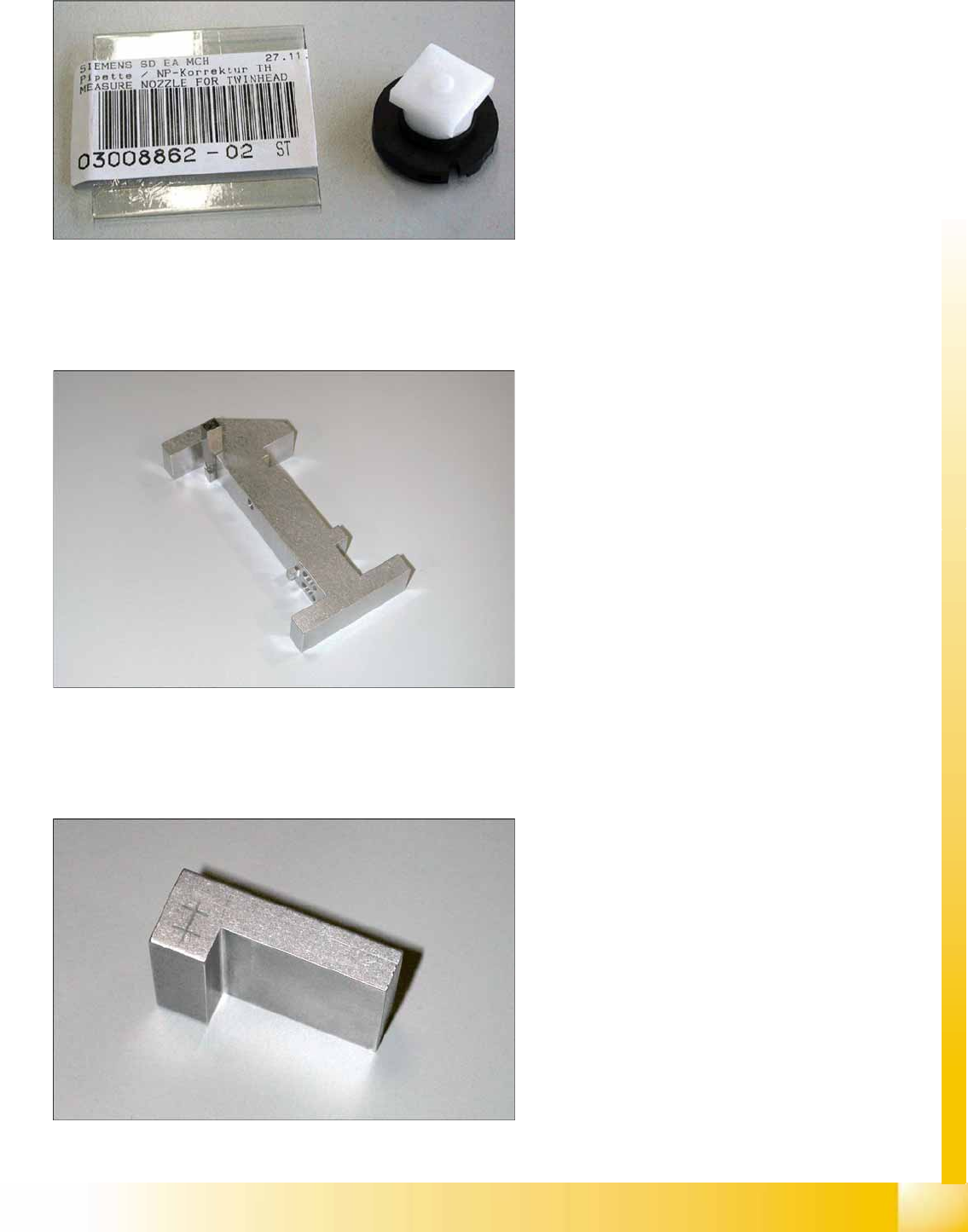

15.13 Calibration Nozzle for Twin Head [03008862-xx]
15.14 Setting Gauge for Board Clamping [00369202-01]
15.15 Setting Gauge for Conveyor Laser Light Barrier
Application:
The calibration nozzle is used to calibrate the
D axis of the Twin Head or P&P head.
Measuring Equipment and Tools
