3.2.4 Computer Unit with BoxPC
In placement machines from X-series MA. No. 600 and X4I have BoxPCs in the computer unit.
Up to 3 BoxPCs will be installed, depending on the machine type and configuration.

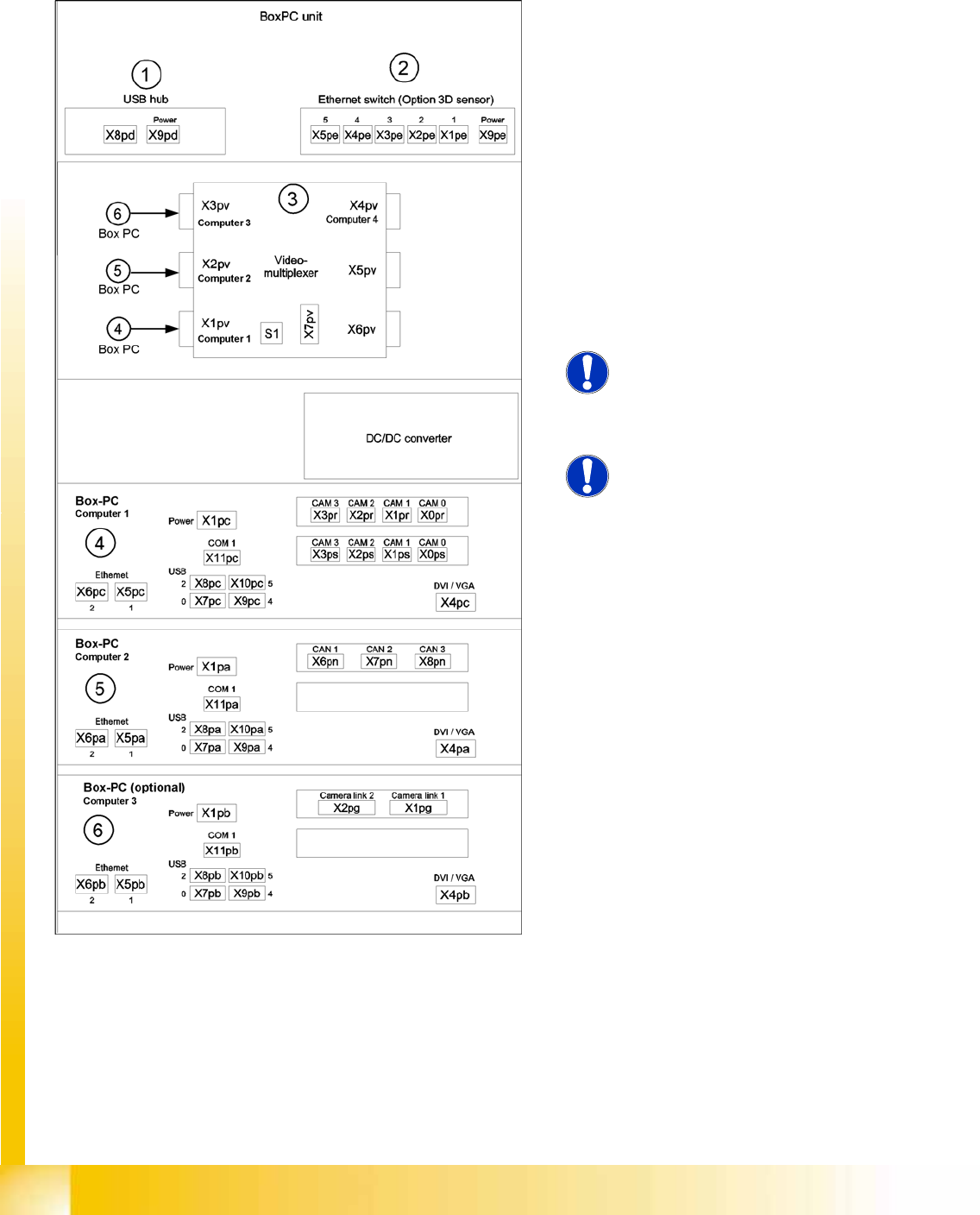

3-12: Computer unit with BoxPC [00351894-xx]
Position of assemblies in the computer
unit
1. 4 port USB hub 2.0
2. Ethernet switch (only for optional 3D sensor)
3. Video multiplexer
4. Computer 1:
Vision computer (from SW 70x)
5. Computer 2:
Station computer (from SW 70x)
6. Computer 3:
Additional BoxPC – only for 3d sensor option
NOTE:
An external DVD drive is supplied with
the delivery package.
NOTE:
In future, X series machines will be
supplied with higher performance
BoxPCs. This means that machine
control and the Vision function are
handled by only one BoxPC.
Overview
Axis Unit with A364 Overview of Components
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Overview
63
3.2.5 Axis Unit with A364
The axis unit contains the servo boards, axis controller boards, power supplies (+/-15V,+5V) and ballast
circuit. The flexible axis unit is equipped with the correct servo and axis boards for the machine type and
head configuration concerned. Depending on the machine type, there will be either one or two axis units
in the machine.
See also:
J
13.9 Slots in the Axis unit [
J
533]
3.2.5.1 Axis Unit A364
See also:
J
13.9.1 Axis Unit A364 [
J
533]

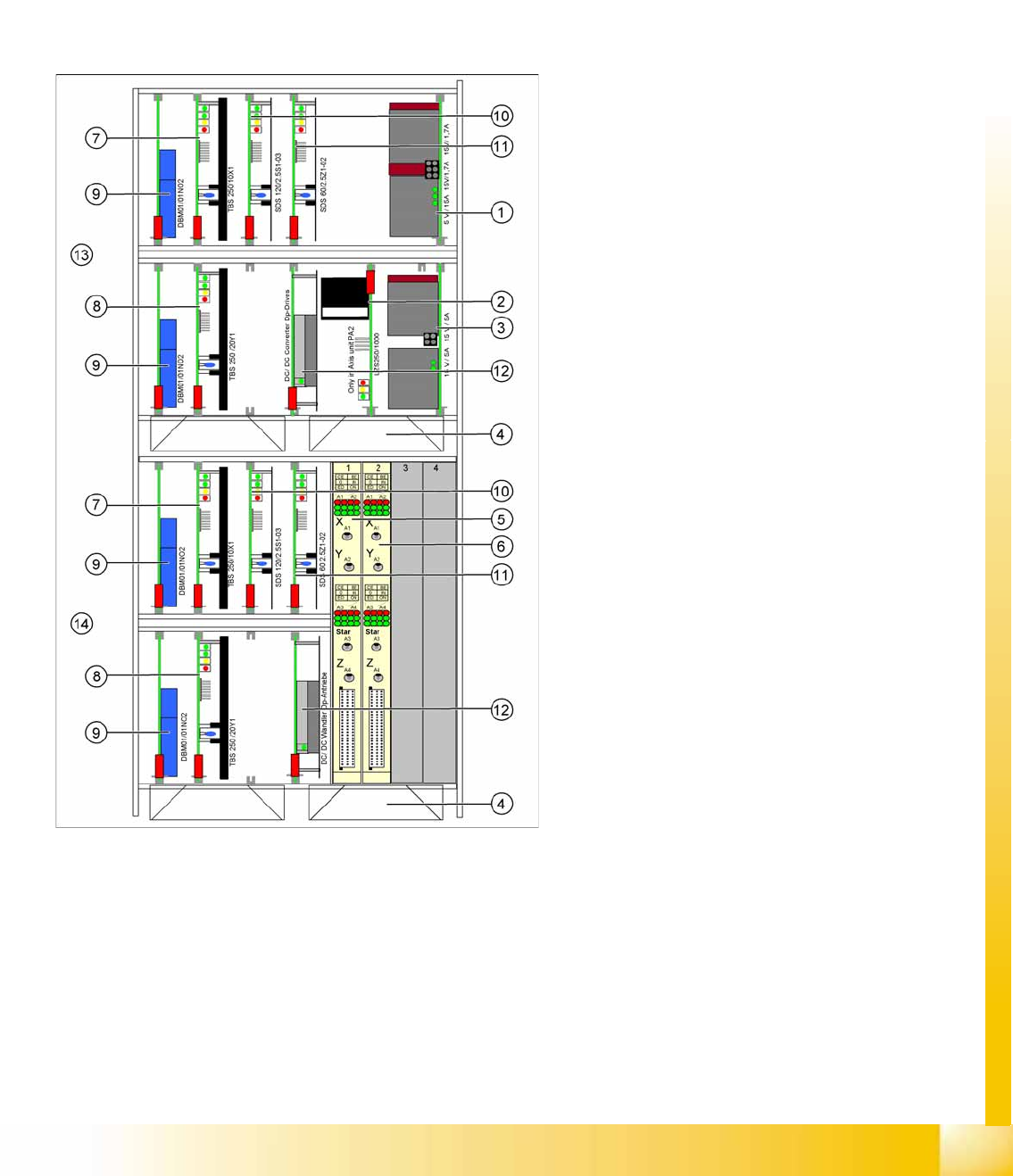

3-13: Configuration of axis unit X4I with C&P20A heads
Legend
1. Power supply +/- 15, +5 V
2. Ballast circuit, only in axis unit PA2
3. Power supply +/- 15V
4. Fan unit (blows downwards)
5. Axis card A364 for gantry 1/2
6. Axis card A364 for gantry 4/3
7. Servo amplifier X axes
8. Servo amplifier Y axes
9. Brake board for each X axis and Y axis
10. Servo star axis (2x)
11. Servo Z axis (2x)
12. DC/DC converter DP drives (2x)
13. Placement area 1 gantry 1 (top half)
14. Placement area 1 gantry 4 (bottom half)
