Overview Changeover Table Components Overview of Components S tudent Guide (FSE) SIPL ACE X Series and X4I Edition 01/2009 EN Overview 65 3.2.6 Changeover T able Components SIPLACE X machines with SW70x only support the …
Overview
Overview of Components Axis Unit with A364
Student Guide (FSE) SIPLACE X Series and X4I
Overview Edition 01/2009 EN
64

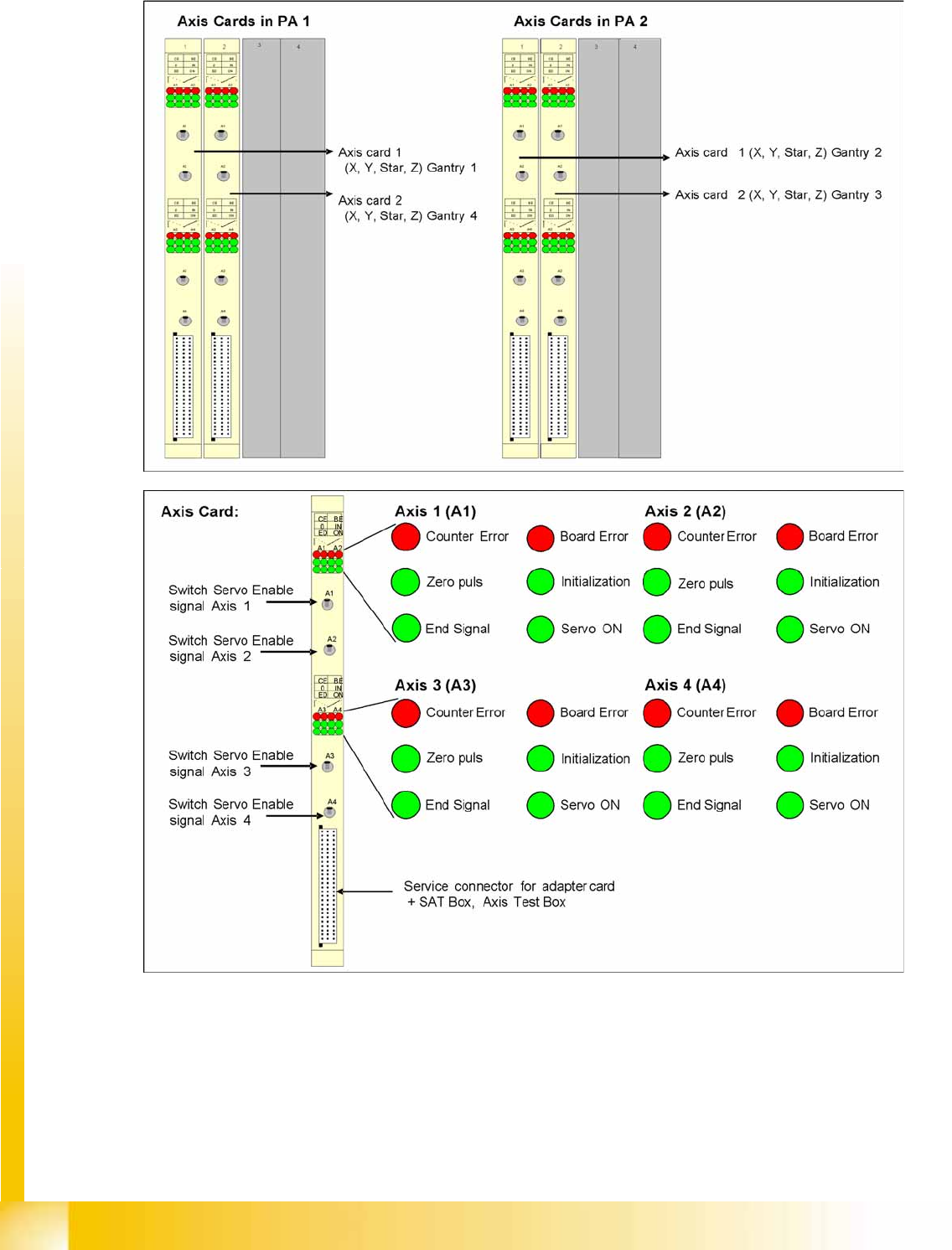

3.2.5.2 Axis Controller Board A364
Overview
Changeover Table Components Overview of Components
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Overview
65
3.2.6 Changeover Table Components
SIPLACE X machines with SW70x only support the new generation of X feeders and X component
changeover tables. This changeover table does not have any electronic assemblies, such as the
communication unit for feeder supply and control in the previous tables. The power supply for the feeders
is without contact, via an inductive interface on the docking unit, directly to the feeders. Control and
communication between the feeder control unit (FCU) and the feeders is provided via two optoelectronic
channels (light conductors). The FCU is connected to the computer unit in the machine via the machine
CAN Bus. Only X tables can be used on the machines.
3.2.6.1 Docking and Undocking
Each X feeder table has 40 slots for 8 mm X feeders, giving a total capacity of 160 individual tracks on
4 changeover tables.

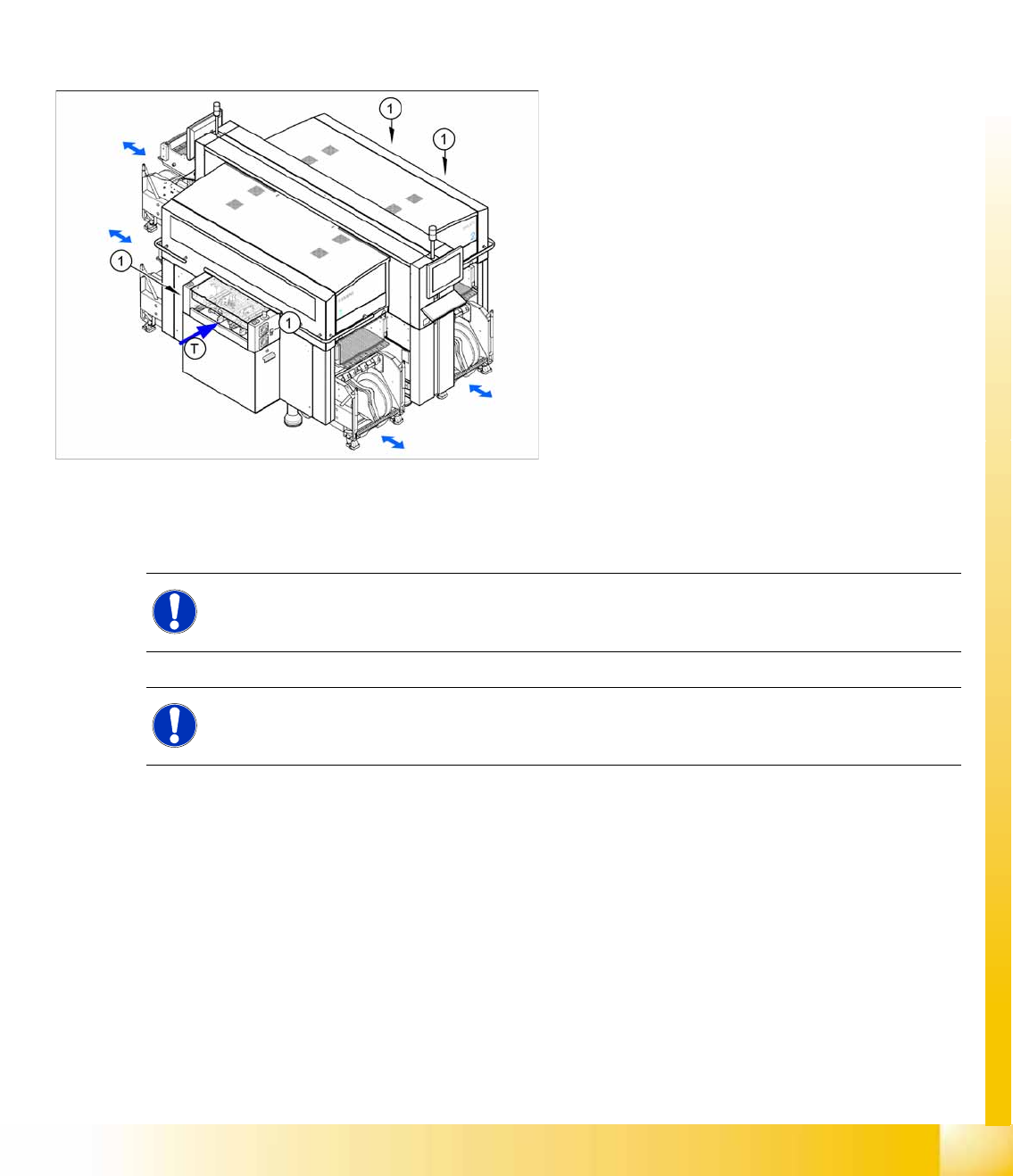

3-14: Shows the button for docking and undocking changeover tables
Legend
1. Button for docking and undocking changeover
tables
T = transport direction
The changeover table is automatically docked at
the machine, with two pneumatic cylinders. For
docking, the changeover table is moved up to the
docking unit, the hood is closed and the button is
pressed. For undocking, the cover is opened and
the button is pressed again.
NOTE: From software 70x
X machines from software 70x only support X tables.
NOTE: X4I
Due to the rotated gantries, there are only 34 tracks available at locations 2 and 4 of the X4I.
Overview
Overview of Components Changeover Table Components
Student Guide (FSE) SIPLACE X Series and X4I
Overview Edition 01/2009 EN
66
3.2.6.2 Setting the Height of the Changeover Table
The changeover table can be manually set to the following PCB conveyor heights
830 mm ±15 mm standard height
900 mm ±15 mm SMEMA height
930 mm ±15 mm SMEMA height
950 mm ±15 mm SMEMA height

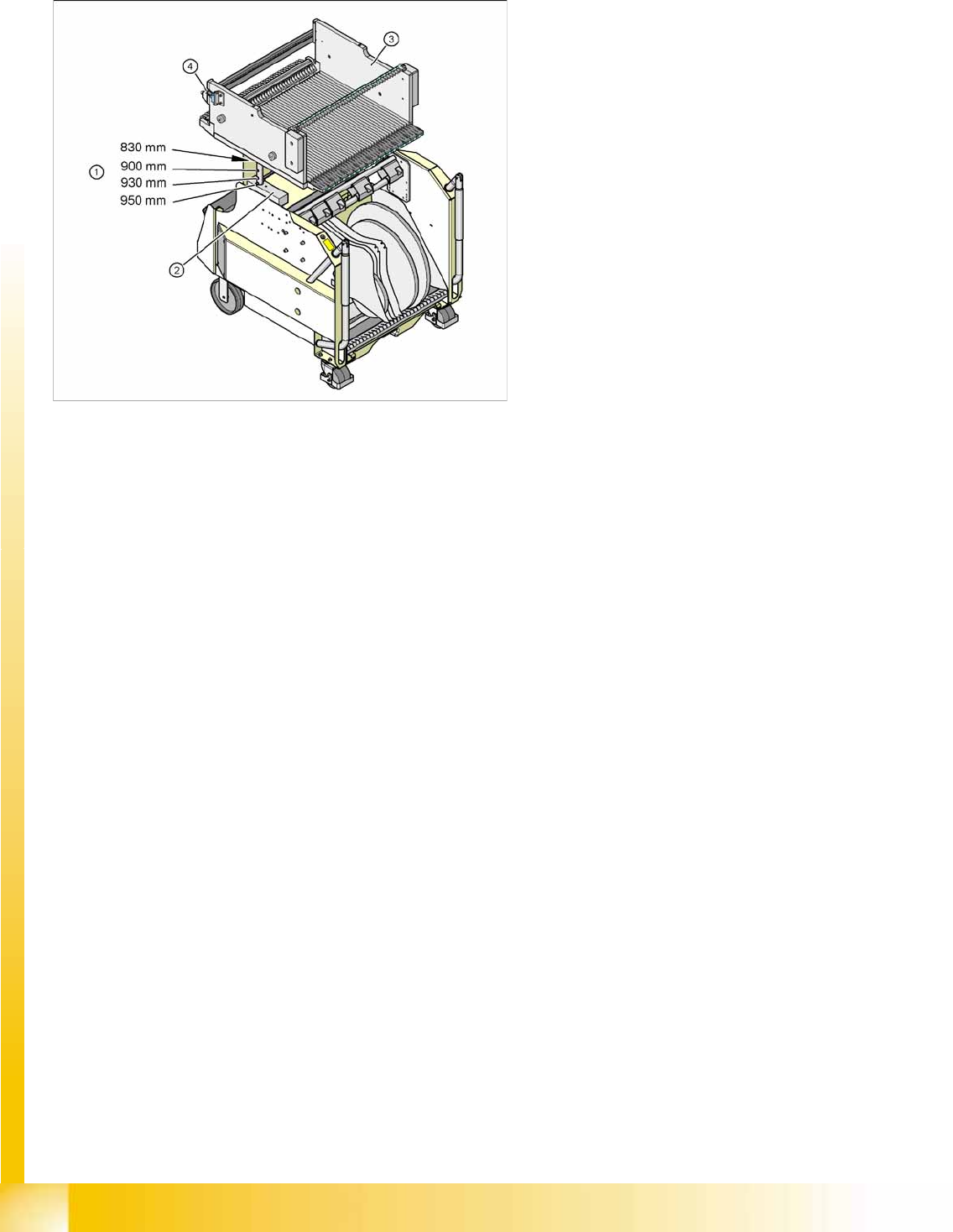

3-15: Component table for X feeder
Legend
1. Drillings for the various PCB conveyor heights,
adjustment via insertion of a spring pin.
2. Contact surface (block) for the upper part of
the table
3. Changeover table
4. Reed switch for closing the safety circuit to the
docking unit
