3.2.8.3 Component Camera CPP

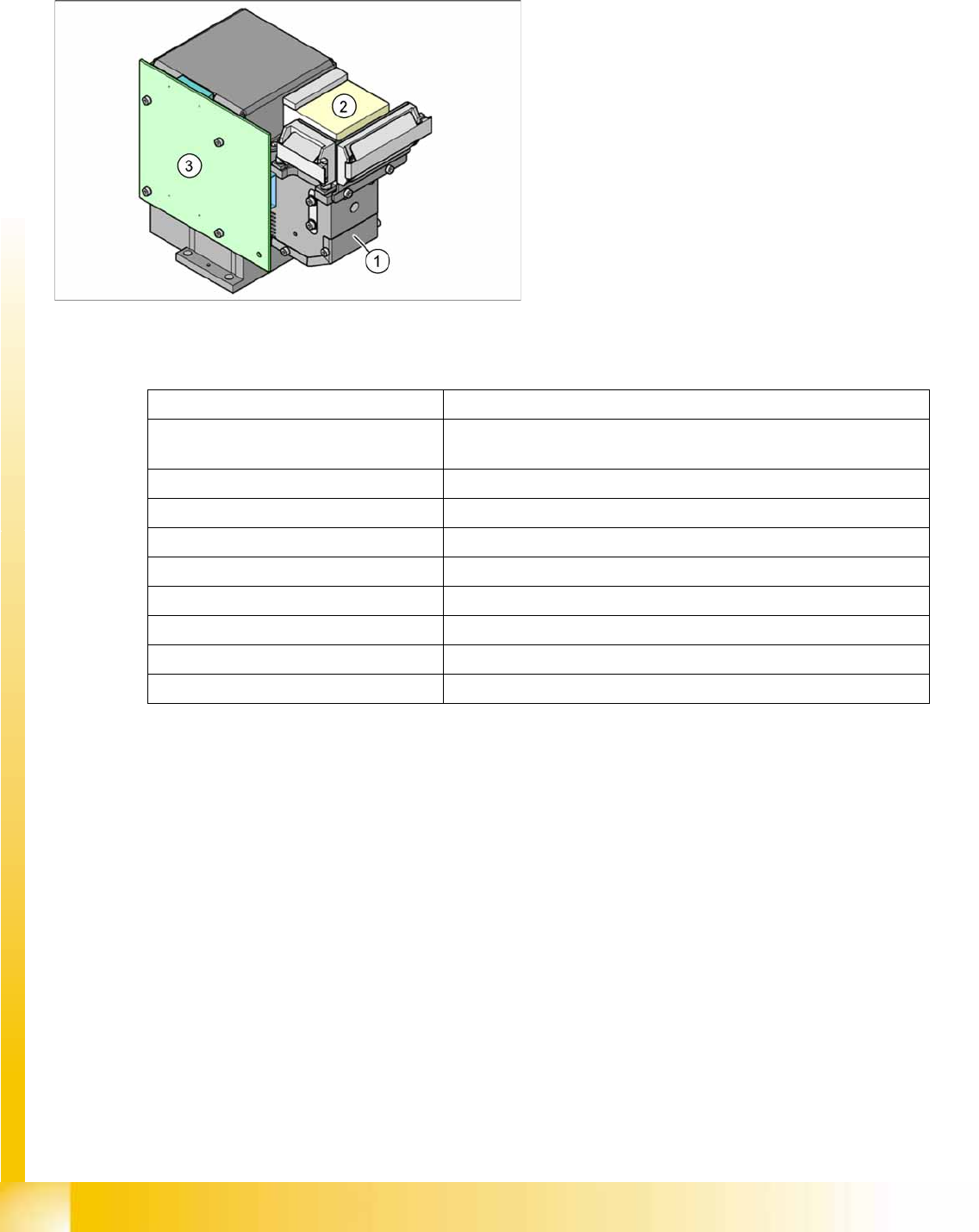

Component Camera SST28
Technical Data
Option: Digital camera (type 29.sst) for 0201 placement.
3-22: Component camera
Legend
1. Component camera lens system and
illumination
2. Camera amplifier
3. Illumination controller
Component size 0.5mm x 0.5 mm up to 18.7 mm x 18.7 mm
Component shape 0402 to PLCC44 incl. BGA, µBGA, flip-chip, TSOP, QFP, PLCC, SO
to SO32, DRAM
Minimum lead pitch 0.5 mm
Minimum ball pitch 0.45 mm
Minimum ball diameter 0.25 mm
Field of vision 24.5 mm x 24.5 mm
Type of illumination Front-lighting (4 levels, programable as required)
Resolution 50µm/Pixel
Camera type.sst 28.sst
Application C&P12 (standard), CPP (option)
Overview
SIPLACE Vision Overview of Components
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Overview
73

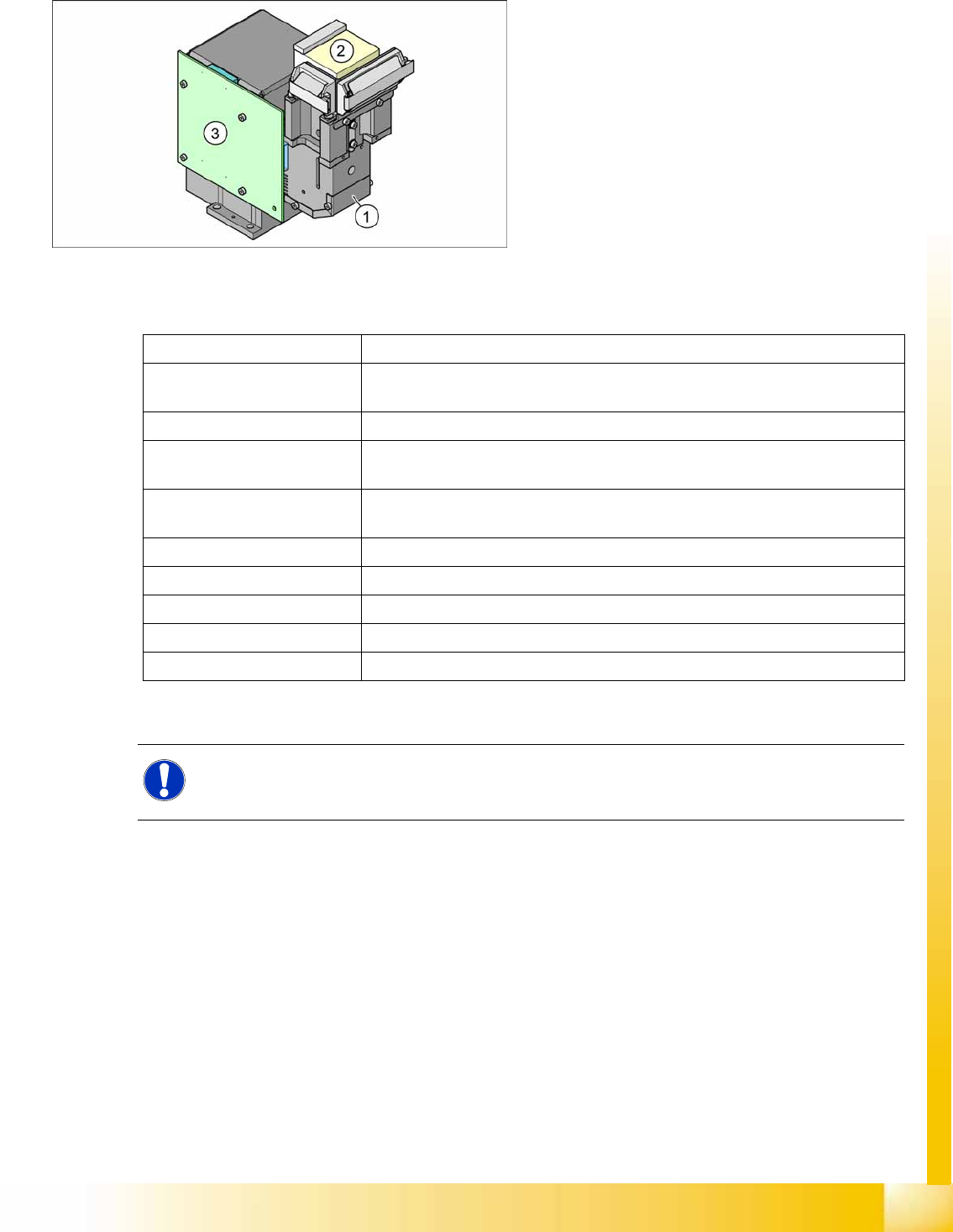

Component Camera SST29
Technical Data
Note for SST29
3-23: Component camera
Legend
1. Component camera lens system and
illumination
2. Camera amplifier
3. Illumination controller
Component size 0.3 mm x 0.3 mm up to 27 mm x 27 mm
Components 0201 to 27 mm x 27 mm
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, IC BGA
Minimum lead pitch 0.3 mm
Min. ball pitch 0.25 mm for components < 18 x 18 mm
0.35 mm for components >= 18 x 18 mm
Min. ball diameter 0.14 mm for components < 18 x 18 mm
0.2 mm for components >= 18 x 18 mm
Field of vision 32 mm x 32 mm
Type of illumination Front-lighting (4 levels, programable as required)
Resolution 26µm/Pixel
Camera type.sst 29.sst
Application C&P6 (standard), CPP (standard)
NOTE:
The component camera SST29 is the standard camera for the CPP head. The other cameras
can be ordered as an option.
Overview
Overview of Components SIPLACE Vision
Student Guide (FSE) SIPLACE X Series and X4I
Overview Edition 01/2009 EN
74
Component Camera SST38
Technical Data
3-24: Component camera
Legend
1. Component camera lens system and
illumination
2. Camera amplifier
3. Illumination controller
Component size 0.4x0.2 mm (01005) to 16x16 mm
Components 01005 to 16 mm x 16 mm
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, IC BGA
Min. ball pitch 250 µm
Min. ball diameter 140 µm
Field of vision 20 mm x 20 mm
Type of illumination Front-lighting (4 levels, programable as required)
Resolution 17 µm/pixels
Camera type.sst 38.sst
Application CPP (option)
