4.2 Networking Address
4.2.1 Checking the Network Addresses
4.2.1.1 Station Computer Box PC

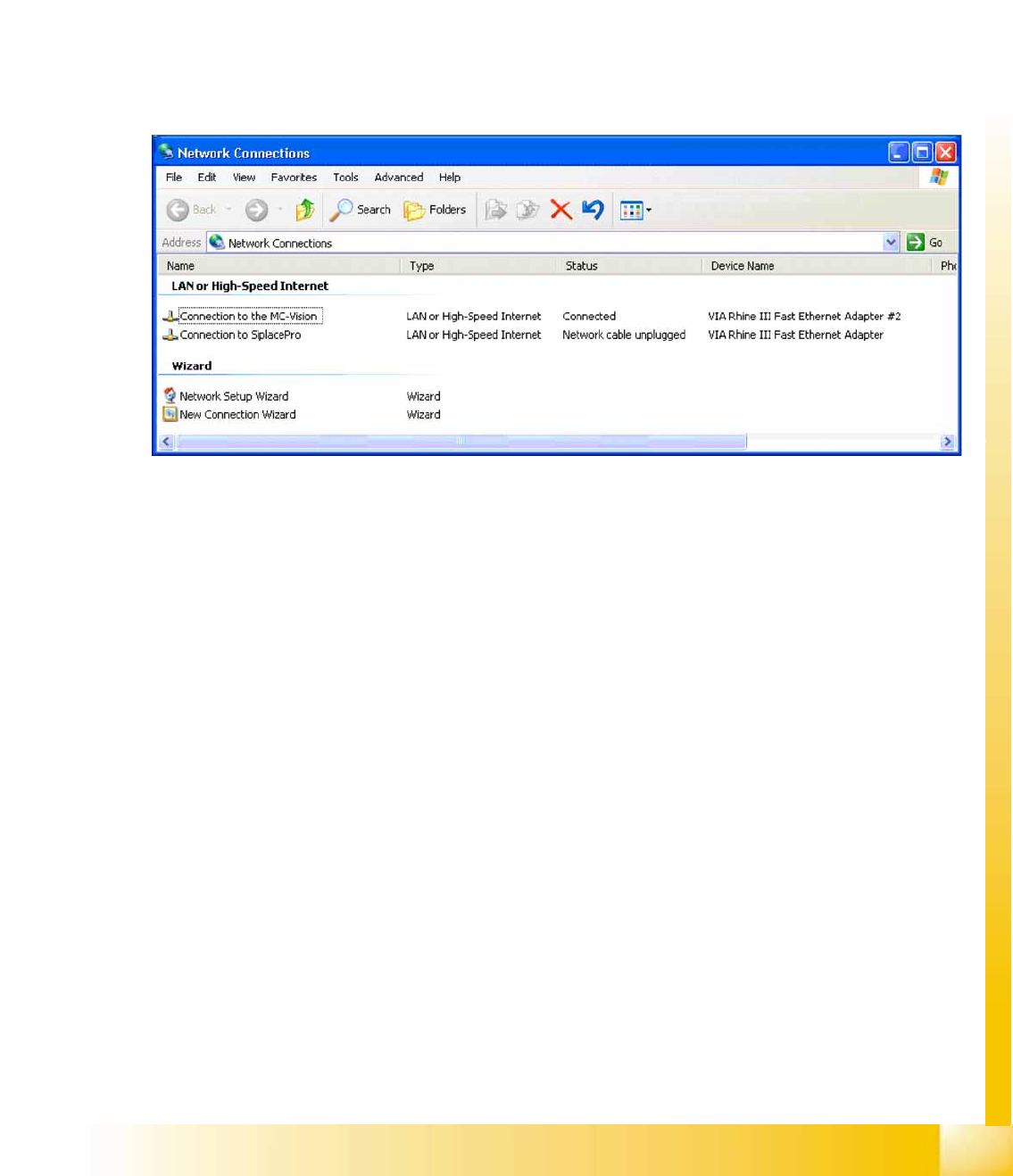

The station computer has two network cards, which can be directly set in Windows:
Windows XP main view:
Start
-->
Settings
-->
Network connections
Select one of the two network cards (see below)
Right-click
Select Properties
with the mouse.
Select
TCP/IP
and -->
Select Properties
(see below)
Network card 2 "connection to SIPLACE Pro":
The network connection between the station computer and SIPLACE Pro is realized via the LAN 2
connection of the dual LAN unit in the station computer. The network address is not fixed and can be
defined individually for each customer.
Example of a LAN IP address: 172.22.208.181
This TCP/IP ADDRESS must be typed in, during the configuration of the station in SIPLACE Pro.
Network card 1 "connection to the MC Vision":
The internal network address for the station computer is a fixed local area network address, which must
not be changed.
Station computer: 192.168.255.249
Communication and Control
Networking Address Checking the Network Addresses
Student Guide (FSE) SIPLACE X Series and X4I
Communication and Control Edition 01/2009 EN
98

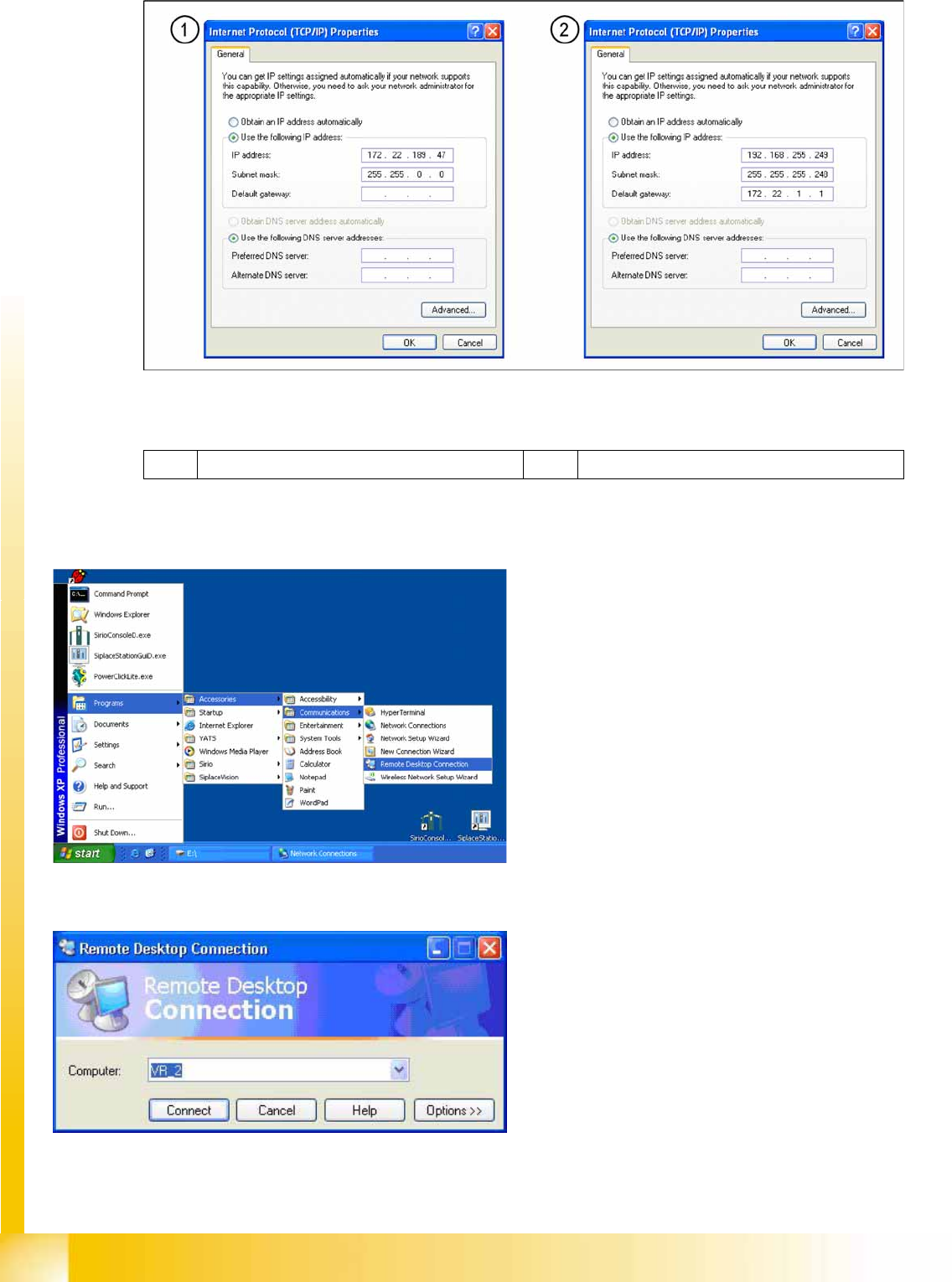

4-3: Network cards in the station computer
Legend
4.2.1.2 Vision Computer Box PC
1 External IP address for SC 2 Internal IP address for SC
4-4: Remote desktop connection
The Vision computer has two network cards,
which can be directly set in Windows:
Access to the Vision computer is possible via a
Remote desktop connection
.
X For this, select
Start – Programs –
Accessories – Communications – Remote
Desktop Connection
.
4-5: Remote desktop connection
X Enter the computer name
VR_2
and select
Connect
.
You will now see the Windows XP basic view for
the Vision computer.
X Select
Start --> Settings --> Network
connections
.
Communication and Control
Checking the Network Addresses Networking Address
Student Guide (FSE) SIPLACE X Series and X4I
Edition 01/2009 EN Communication and Control
99

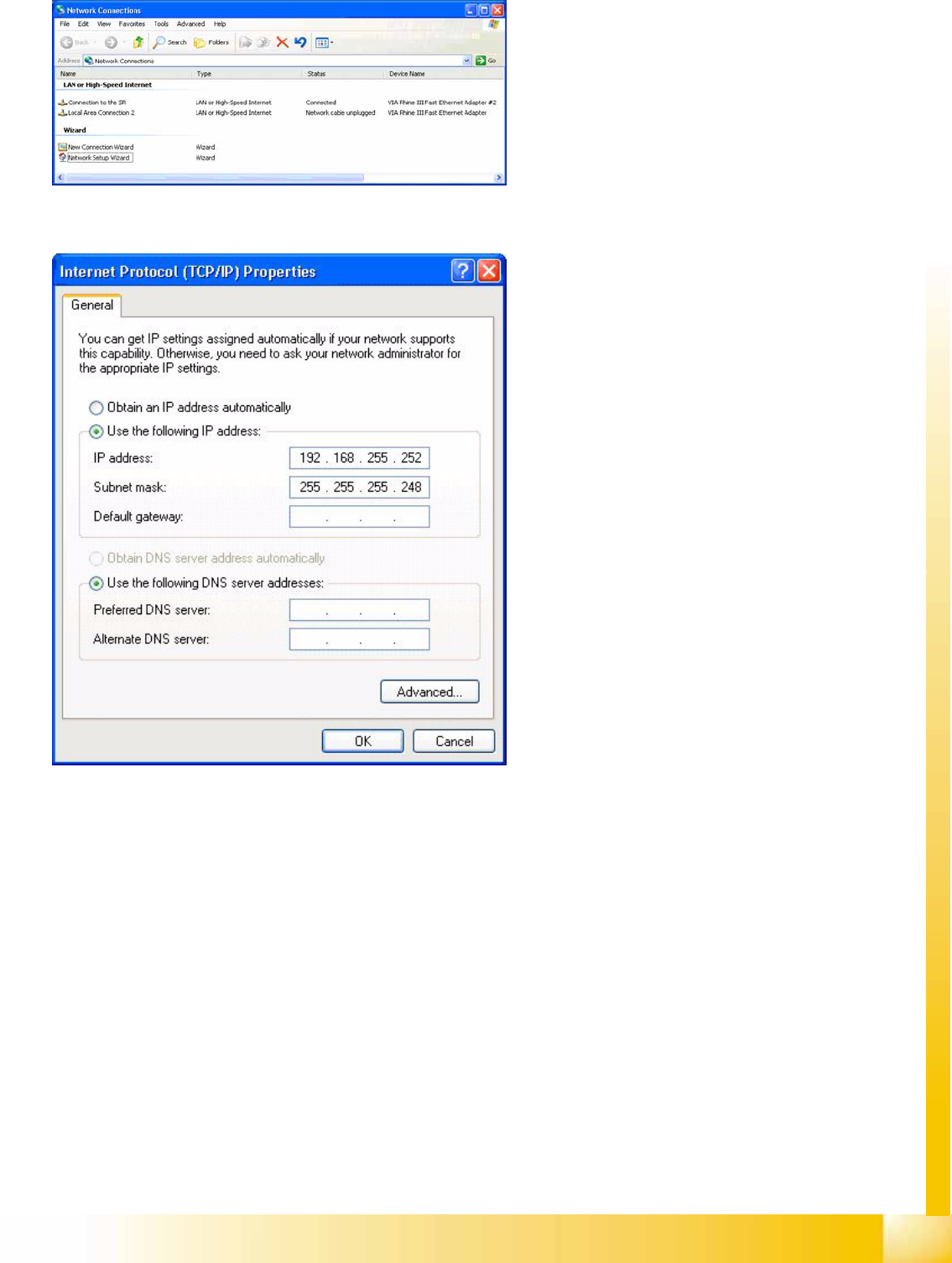

4-6: Network connections
X Right-click with the mouse on the network card
Connection to the SR
and select
Select
Properties
.
4-7: Internet protocol properties
X Select
Internet Protocol (TCP/IP)
from the
list and click on
Select Properties
.
Network card 1: Connection to the SR:
The network connection between the Vision
computer and station computer is established
via the LAN 1 connection of both computers.
The network address is pre-fixed and may not
be changed.
IP-Address Vision computer: 192.168.255.252
This TCP/IP address can only be checked or
changed by the system administrator.
Network card 2: Local Area Connection 2:
This connection is not used.
