ONYX 24
The ONYX 24 is used to process printed circuit
boards with dimensions up to 300 x 400 mm.
Due to the integrated vision-system the precise
orientation of components is guaranteed.
The multifunctional hot gas heater head can be
used to solder components, to remove
components and for site clean processes
(contactless removal of residual solder).
In addition many unique options for several
additional processes are available.
REPAIR OF SMD-CIRCUIT BOARDS
Thanks to the high placement accuracy of <10 µm, the integrated force
measurement and the control via four motorized axes, reproducible
results and highest quality are guaranteed for serial repair and many
other applications. Because of the open construction of the ONXX 24
the length of the edited printed circuit boards is not limited.
The open architecture of the ONYX 24 and the variety of closed loop
controlled parameters of the application software VisualMachines
TM
allow simple lab applications as well as high complex production
processes repetitive and extremely precise. ZEVAC`s standard gas
nozzles from the proven DRS selective soldering machines can be
used on the ONYX 24 without any modication. With the ONYX 24 all
electronic SMD components and all customer specic components
can be handled easily.
• 2000 watt multifunctional hot gas heater head:
Solder components, remove components, site
clean (contactless removal of residual solder),
customer specic application upon request
• Four motorized axes with closed loop motion
control
• Integrated hand wheels for quick and precise
positioning of the hot gas head
• Automatic process control
• Up to eight thermocouple ports to control
process temperature
• Board handling for boards up to 300 mm width,
no limitation for length thanks to the open
construction
• Board carrier handles irregular-shaped
assemblies without special xtures
• Bottom pre-heater with a performance of 3500
watt and the dimensions of 300 x 300 mm with
integrated board cooling
• Automatic closed loop force control of the
Z-axis for automatic picking, uxing, placing and
removing processes to protect sensitive parts
• Closed loop gas ow control from 8 to 80 l/min
• The MFOV system allows viewing components
with dimensions up to 75 x 75 mm and allows an
excellent adjustment of the image contrast
• Semi-automated, contactless site cleaning for
the removal of residual solder with a motorized
Z-axis
MAIN FEATURES
Swiss Engineering
APPLICATION RANGE
Repairs
Misaligned devices can accurately be repositioned and defective components can reliably be replaced.
Prototyping
The components of small printed circuit boards can be assembled and soldered with the ONYX 24 semi-automatically.
It allows already used expensive components to be re-used.
Post-assembly
Components that are missing at assembly time can be placed and soldered later, or individual components which cannot
be handled by the available production machines can be retrotted with the ONYX 24.
Assembly
When printed circuited boards with only a few components need to be assembled, then the ONYX 24 often can provide
a reliable semi-automated solution.
Components
Zevac`s standard gas nozzles from the proven DRS selective soldering machines can be used on the ONYX 24 without any
modication. With the ONYX 24 all electronic SMD components and all customer specic components can be handled easily.
ONYX 24 – REPAIR OF CIRCUIT BOARDS
Swiss Engineering
IR-PRE-HEATER SYSTEM
For lead-free applications
Pre-heater: 300 x 300 mm
3500 watt
Optional board cooling for faster
cool down.
VISION (MFOV)
Guarantees a highly accurate
positioning
With the motorized VISION system,
the component and the layout of the
board are projected on top of each
other, verifying the position on all
4 sides. The LED illumination, one
for the component and one for
the board-layout, guarantees an
optimum view independent of
surrounding conditions.
1 Vision system
For components up to 70 mm
2 LED illumination
FORCE PLACEMENT
Accurate motorized force placement
The Z-axes is motorized and places the
the component automatically with
force control in the gramme range
onto the board.
TECHNICAL DATA

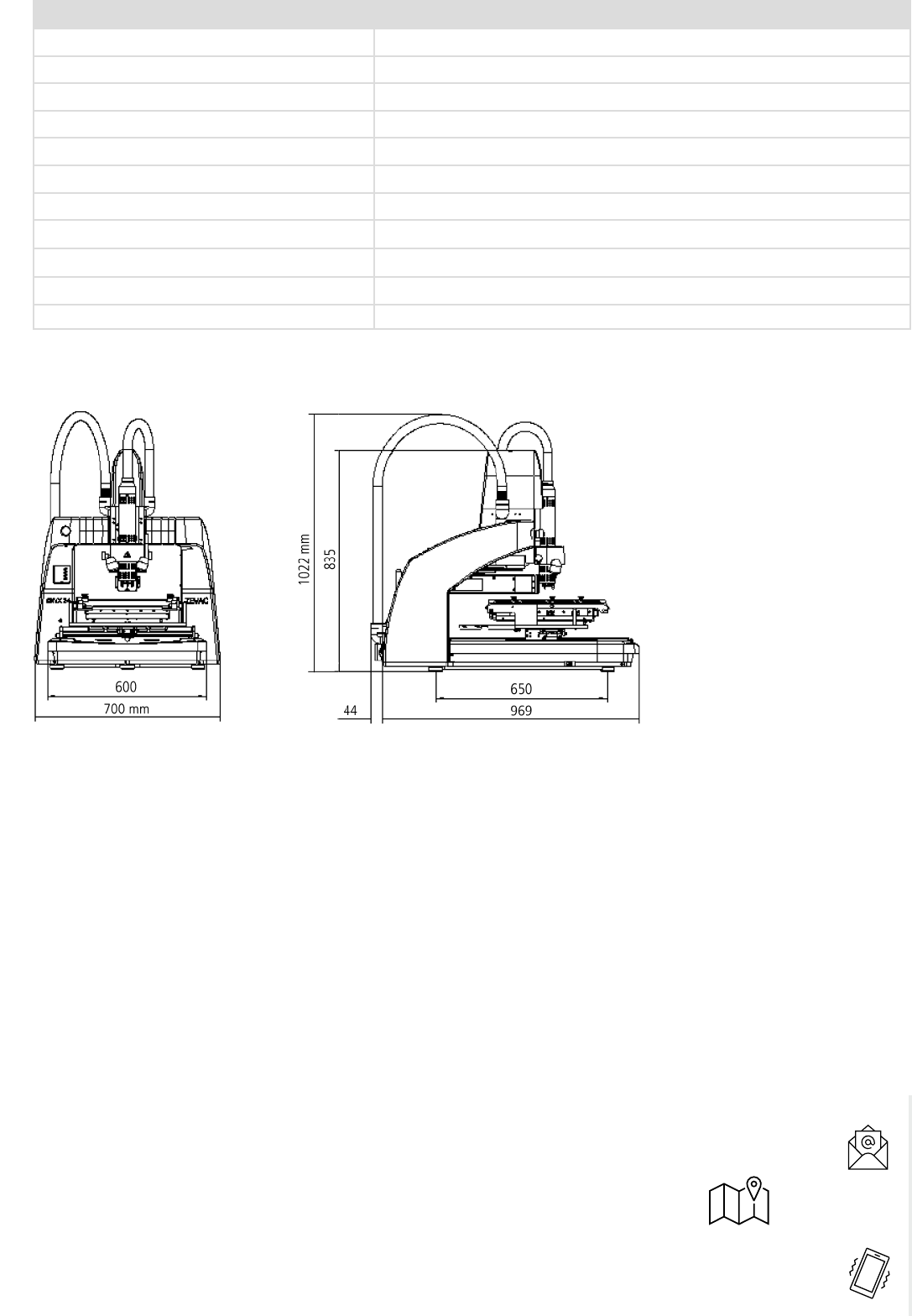

DIMENSIONS
Vogelherdstrasse 4
4500 Solothurn
Switzerland
info@zevac.ch
Tel. +41 32 626 20 80
Fax +41 32 626 20 90
contact us
Product designation ONYX 24
Max. board size (W x D) 300 mm width, ∞ depth
Max. component height 20 mm bottom side (optional 30 mm), 30 mm top side (optional 70 mm)
Max. component size 70 x 70 mm
Gas pressure 4 – 6 bar
Hot gas temperature 20 - 475 °C
Angle rotation of heater head ± 15°
Hot gas Compressed air or nitrogen, 20 - 80 l/min
Max. power consumption 5600 VA
Power requirements 3 x 400 / 230 VAC, 50 / 60 Hz
Dimensions (W x D x H) 700 x 969 x 1022 mm
Weight 120 kg (basic machine)
