7 Conveyor 7.2 Lifting Table Service Manual SIPLACE TX Series 06/2017 145 7.2.6 Calibrating the Lifting Table Motor After completing the work on the lifting table, this will need to be calibrated. Procedure Fig.194: Sel…
7 Conveyor
7.2 Lifting Table
144 Service Manual SIPLACE TX Series 06/2017
7.2.5 Checking Free Movement of Lifting Table
After all work on the lifting table mechanics check the free movement of the lifting table.

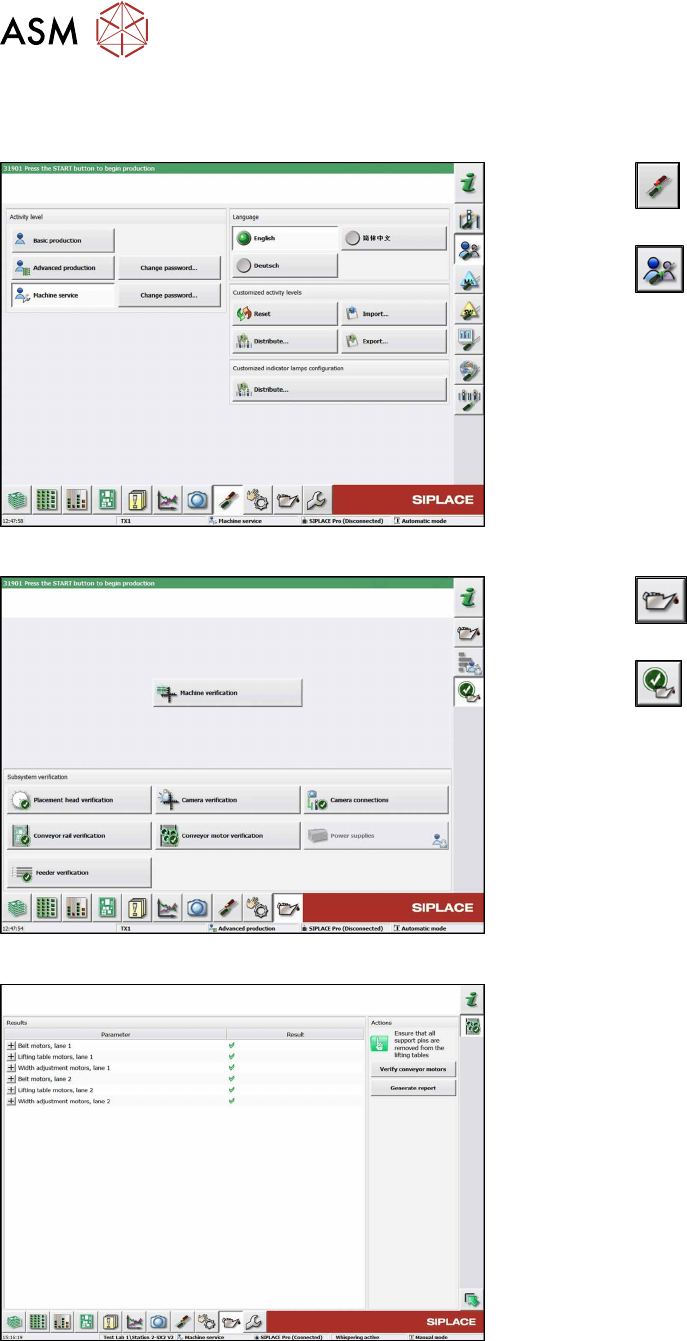

Fig.191: Select operator level
► Click the
button to enter the Settings
menu.
► Click the
button to open the Check and set
user settings menu.
► Switch to operator level Machine service or bet-
ter.
Fig.192: Maintenance menu
► Click the
button to enter the maintenance
menu.
► Click the
button.
► Click the Conveyor motor verification button.
Fig.193: Verify conveyor motors
► Click the Verify conveyor motors button to run
check.
► Click the Generate report button to view details.
See also
2 Replacing the Lifting Table Plate [03114873-xx] [}136]
7 Conveyor
7.2 Lifting Table
Service Manual SIPLACE TX Series 06/2017 145
7.2.6 Calibrating the Lifting Table Motor
After completing the work on the lifting table, this will need to be calibrated.
Procedure
Fig.194: Select operator level
► Click the
button to enter the Settings
menu.
► Click the
button to open the Check and set
user settings menu.
► Switch to operator level Machine service or bet-
ter.
Fig.195: Service menu
► Click the
button to open the Service menu.
► Select Conveyor configuration.
Fig.196: Conveyor menu
► Click the Initiate conveyor parameters
button.
► Click the
buttons to select the re-
quired conveyor lane.
► Go to the All lifting tables section and select the
Calibrate motor button.
► Check the clamps (distance between clamping
plate and clamping rail) and adjust if necessary
(see 7.2.4 "Setting the Parallelism and Height of
the Lifting Table Plate" [}143]).
7 Conveyor
7.3 Conveyor Drive
146 Service Manual SIPLACE TX Series 06/2017
7.3 Conveyor Drive
7.3.1 Replacing the Conveyor Drive
Parts, equipment and tools
●
Belt tension measuring device [00326015‑xx]
Fig.197: Conveyor drive
1. DC drive motor with synchronizing disk SXa
[03093387‑xx]
Overview
Fig.198: Conveyor drives and toothed belts
1. Conveyor drives in lane 1 (location 1)
2. Conveyor drives in lane 2 (location 2)
3. Six conveyor drives
4. Toothed belt for conveyor drives
5. Three screws fastening the conveyor drives
