7 Conveyor 7.7 Boards 184 Service Manual SIPLACE TX Series 06/2017 Fig.245: 03087641-02
7 Conveyor
7.7 Boards
Service Manual SIPLACE TX Series 06/2017 183
Fig.244: 03087640-02
7 Conveyor
7.7 Boards
184 Service Manual SIPLACE TX Series 06/2017

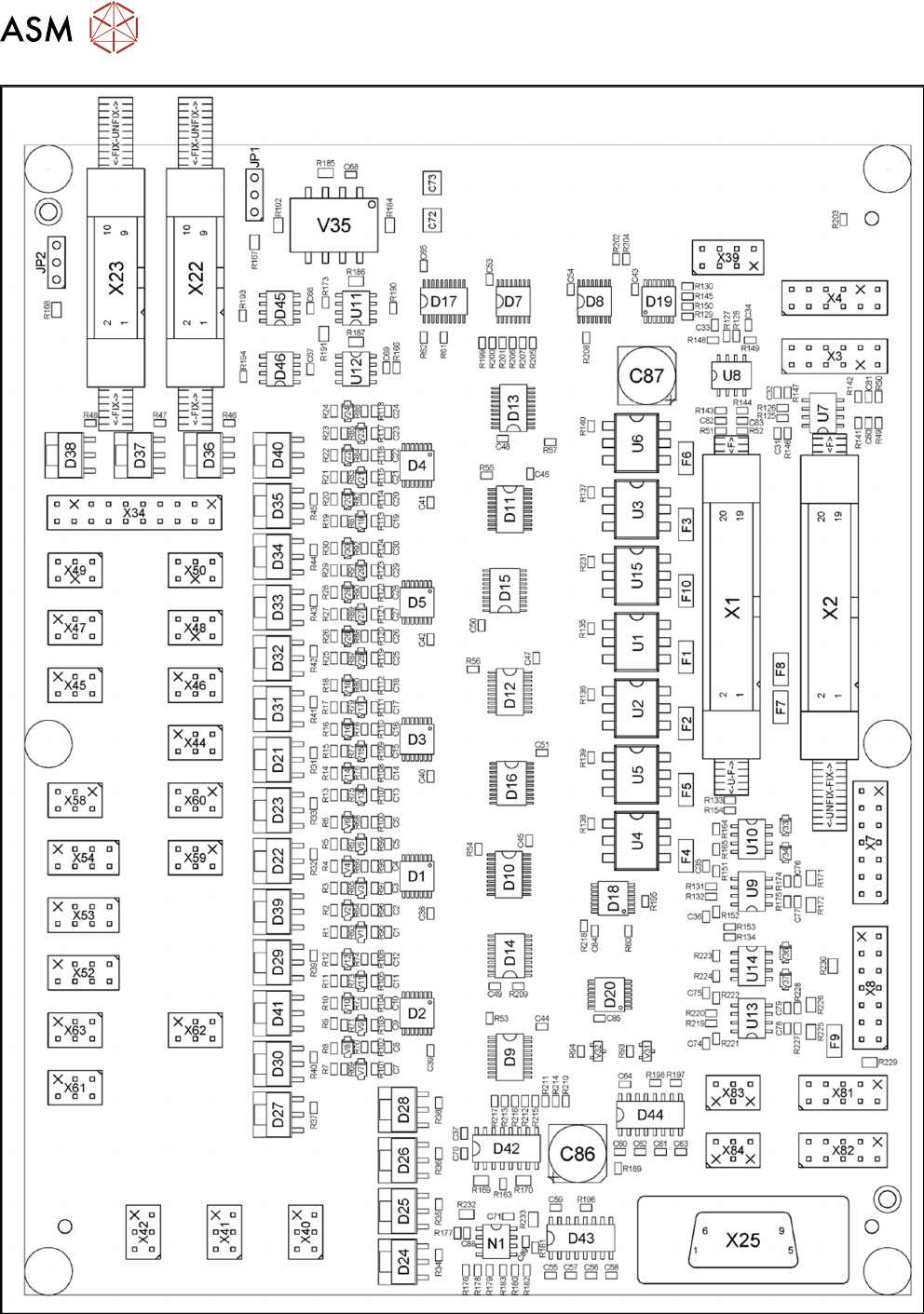

Fig.245: 03087641-02
7 Conveyor
7.7 Boards
Service Manual SIPLACE TX Series 06/2017 185

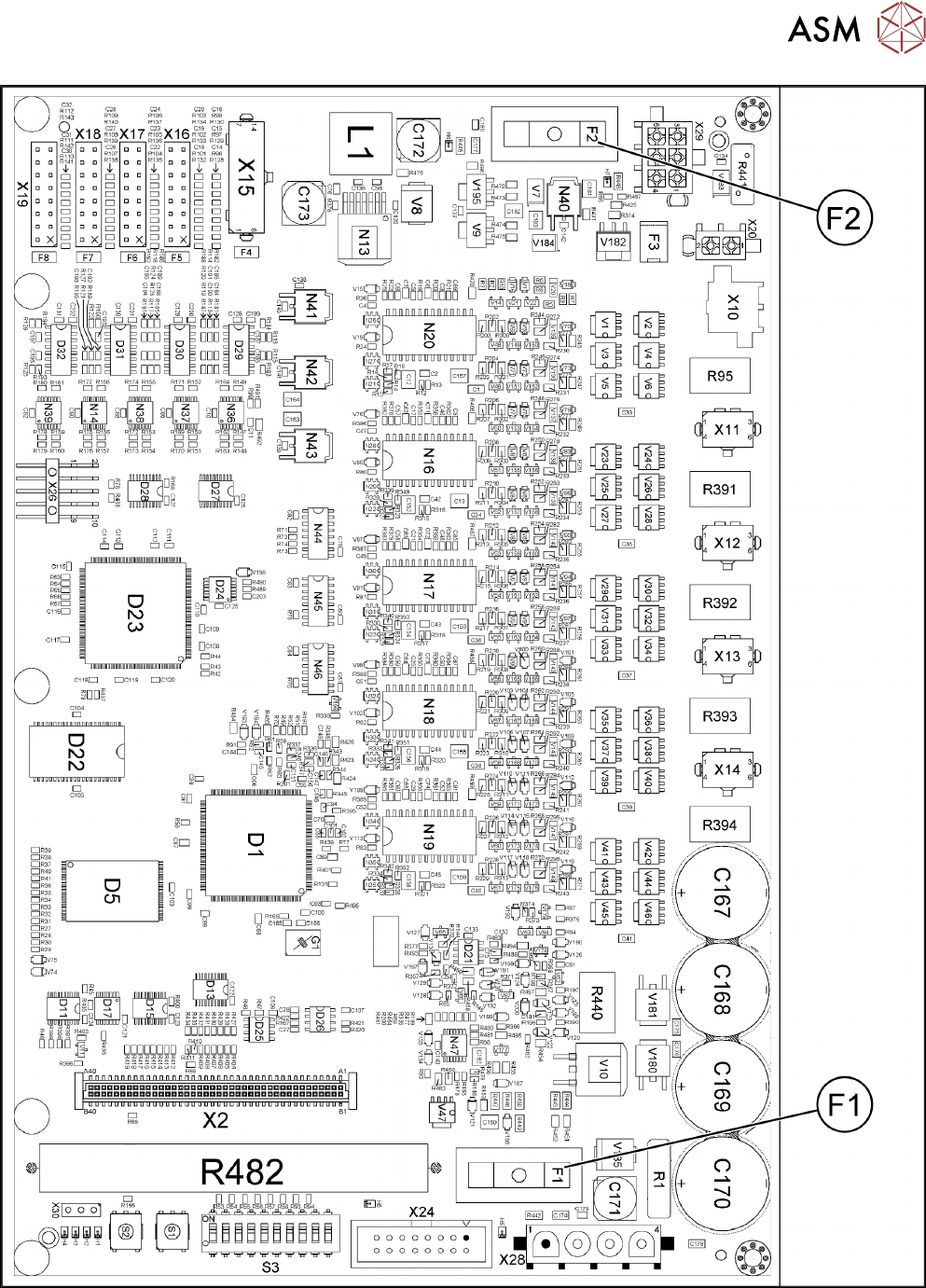

Fig.246: TSP420 overview
Spare fuses:
●
F1: Fuse T5A 5x20mm SPT series (0001.2511 Schurter)
●
F2: Fuse T2A 5x20mm (0034.3120 Schurter / 0239 002 XP Littelfuse)
