7 Conveyor

7.9 Checking Parallelism of Conveyor Rails

Service Manual SIPLACE TX Series 06/2017 191

7.9 Checking Parallelism of Conveyor Rails

Fig.256: Select operator level

► Click the

button to enter the Settings

menu.

► Click the

button to open the Check and set

user settings menu.

► Switch to operator level Machine service or bet-

ter.

Fig.257: Maintenance menu

► Click the

button to enter the maintenance

menu.

► Click the

button.

► Click the Conveyor rail verification button.

Fig.258: Conveyor rail verification

► Click the Capture images button to run check.

► Click the Generate report button to view details.

7 Conveyor

7.10 Teaching the PCB Sensors (SW70x)

192 Service Manual SIPLACE TX Series 06/2017

7.10 Teaching the PCB Sensors (SW70x)

Whenever you manually loosen the conveyor sides, you also need to reteach the light barrier

sensors. This is required because the light intensity depends on the conveyor width. Without teach-

ing, the conveyor will show boards which are not present, preventing the conveyor from being ref-

erenced.

Teaching is performed automatically during operation.

Procedure

Fig.259: Select operator level

► Click the

button to enter the Settings

menu.

► Click the

button to open the Check and set

user settings menu.

► Switch to operator level Machine service or bet-

ter.

Fig.260: Checking sensors and functions

► Click the

button.

► Click the

button.

► Click on the Conveyor inputs/outputsbutton.

7 Conveyor

7.10 Teaching the PCB Sensors (SW70x)

Service Manual SIPLACE TX Series 06/2017 193

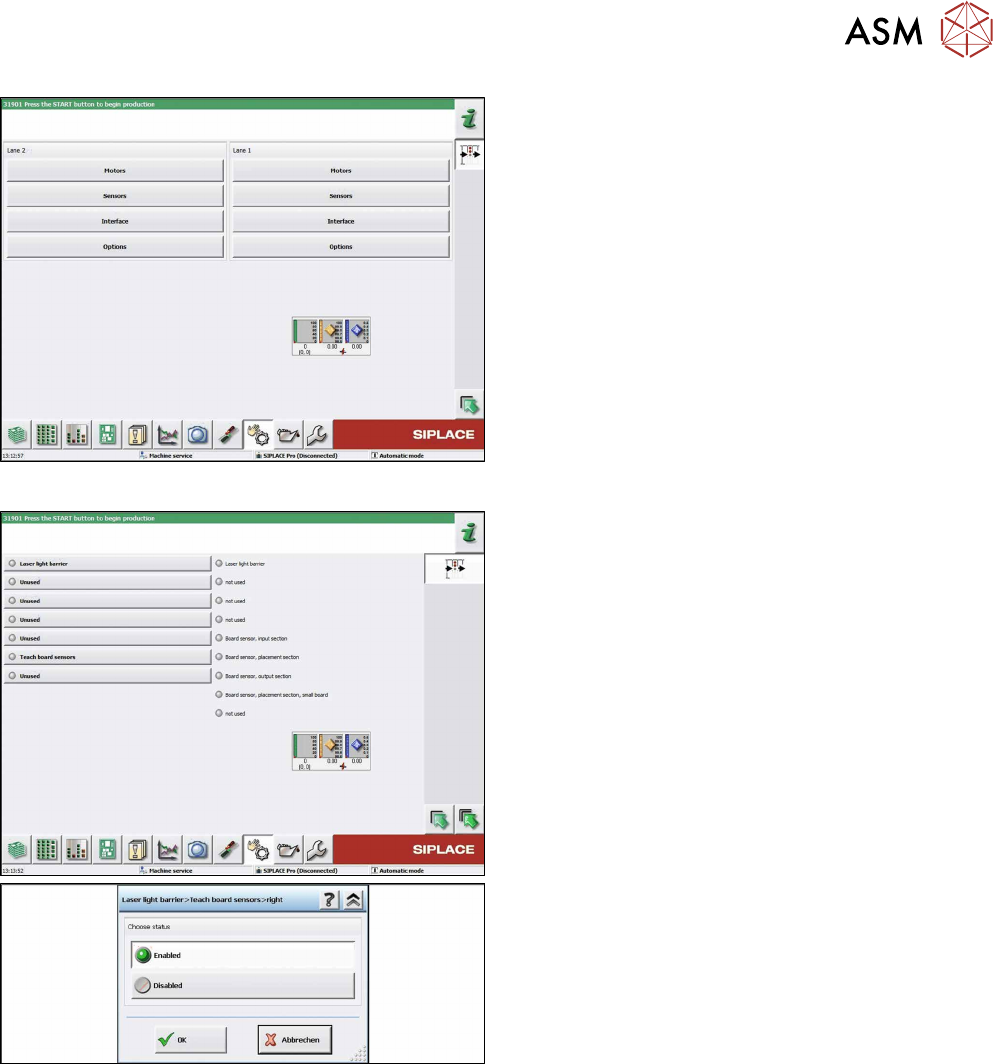

Fig.261: Teaching the sensors

► Click on the button Sensors.

Fig.262: Teaching the sensors

► Select Laser light barrier at conveyor lane 1,

enable Teach board sensors and press the

Start button on the machine.

Disable this function again afterwards.

► Repeat this step for all lanes.
