8 Placement Heads and Stationary Cameras
8.1 Fast Head Exchange
Service Manual SIPLACE TX Series 06/2017 197

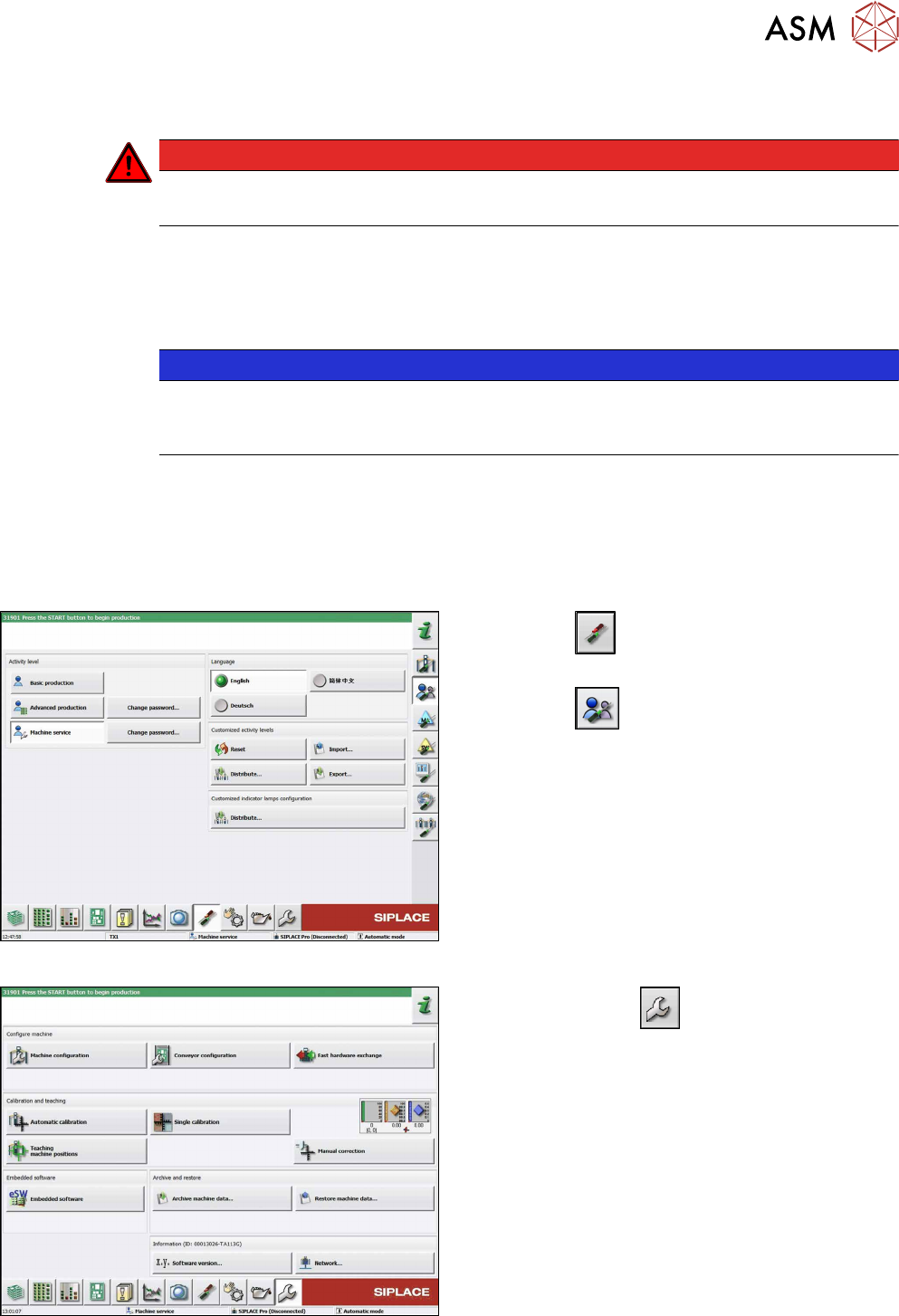

8 Placement Heads and Stationary Cameras
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
8.1 Fast Head Exchange
By means of the Fast Head Exchange (FHE) it is possible to replace a placement head within 15
minutes.
NOTICE
CPP/M and C&P20P/M/M2 only
FHE is only possible with CPP and C&P20P/M/M2 heads only. TwinHeads must be calib-
rated manually.
See also
2 Replacing the SIPLACE C&P20 P/M2 Head [}202]
2 Replacing the SIPLACE CPP/M Head [}206]
8.1.1 Preparing the FHE in the Software
Fig.264: Select operator level
► Click the
button to enter the Settings
menu.
► Click the
button to open the Check and set
user settings menu.
► Switch to operator level Machine service or bet-
ter.
Fig.265: Service menu
► Click on Service
button.
► Click the Fast hardware exchange button.
8 Placement Heads and Stationary Cameras
8.1 Fast Head Exchange
198 Service Manual SIPLACE TX Series 06/2017
Fig.266: Fast head exchange
► Highlight the heads to be replaced.
► Click on Prepare for exchange and shut down.
The following actions will be carried out automatically:
●
The current nozzles will be returned and calibra-
tion nozzles will be picked up, if present.
●
A nozzle and height reference run will be carried
out.
●
The machine will be shut down.
In a next step you can dismantle the heads.
8.1.2 Removing and Installing the Placement Head
► For actually removing and installing the placement head hardware, proceed as described in
the relevant chapter.
Replacing the SIPLACE C&P20 P/M2 Head [}202]
Replacing the SIPLACE CPP/M Head [}206]
See also
2 Replacing the SIPLACE C&P20 P/M2 Head [}202]
2 Replacing the SIPLACE CPP/M Head [}206]
8 Placement Heads and Stationary Cameras
8.1 Fast Head Exchange
Service Manual SIPLACE TX Series 06/2017 199

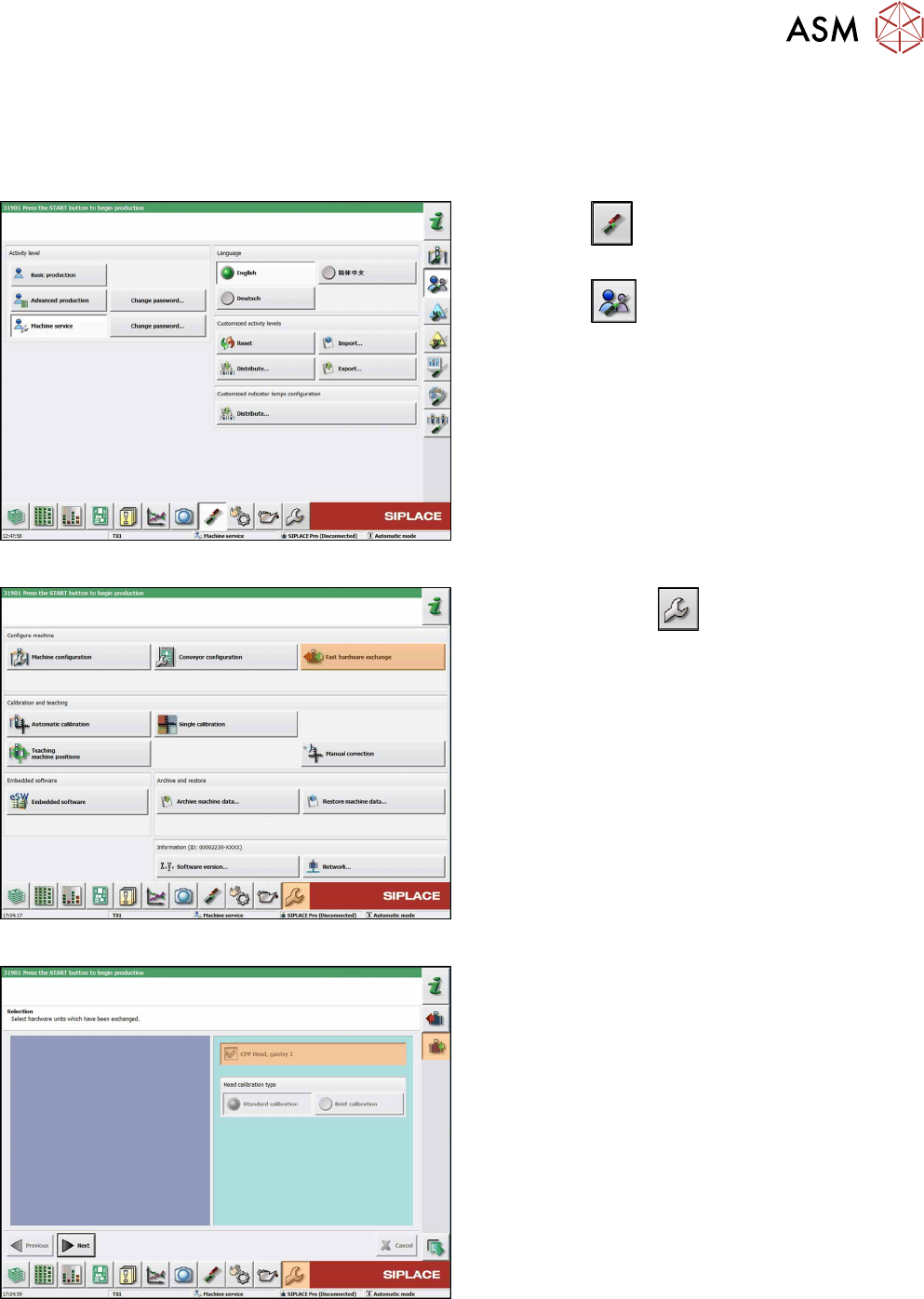

8.1.3 Completing the FHE in the Software
► Switch on the machine.
After being switched on again the machine issues the message Changed heads detected and ex-
pects a calibration.
Fig.267: Select operator level
► Click the
button to enter the Settings
menu.
► Click the
button to open the Check and set
user settings menu.
► Switch to operator level Machine service or bet-
ter.
Fig.268: Service menu
► Click on Service
button.
► Click the Fast hardware exchange button.
Fig.269: Choosing heads
The heads detected by the software are marked and
grayed out.
► If necessary, you can select further heads here.
► Click on the Continue button.
