9 Nozzle Changers and Nozzle Stations 9.1 Nozzle Changers and Nozzle Stations - Overview Service Manual SIPLACE TX Series 06/2017 225 9 Nozzle Changers and Nozzle Stations DANGER Observe User Manual ► Please observe the …
8 Placement Heads and Stationary Cameras
8.7 Calibration
224 Service Manual SIPLACE TX Series 06/2017
8.7.2 Calibration Procedure

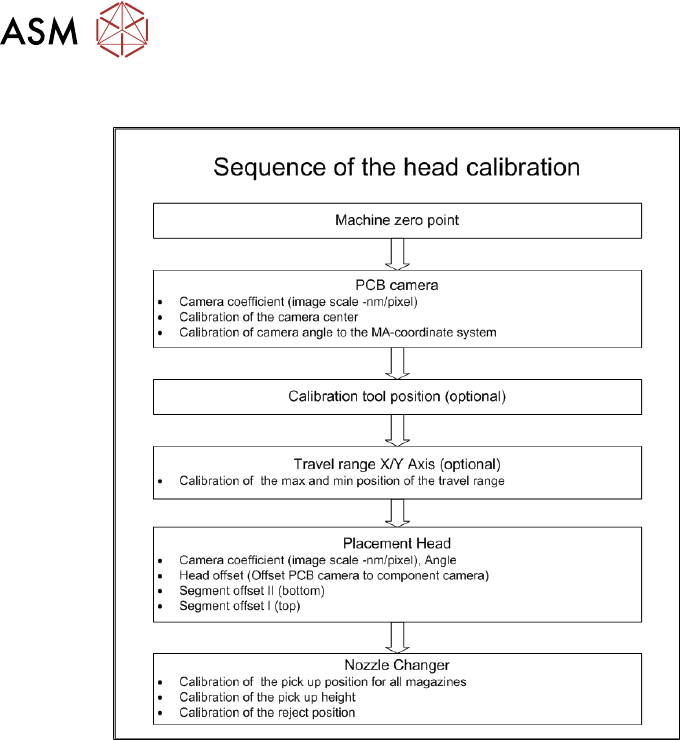

Fig.305: C&P calibration procedure
9 Nozzle Changers and Nozzle Stations
9.1 Nozzle Changers and Nozzle Stations - Overview
Service Manual SIPLACE TX Series 06/2017 225
9 Nozzle Changers and Nozzle Stations
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
9.1 Nozzle Changers and Nozzle Stations - Overview

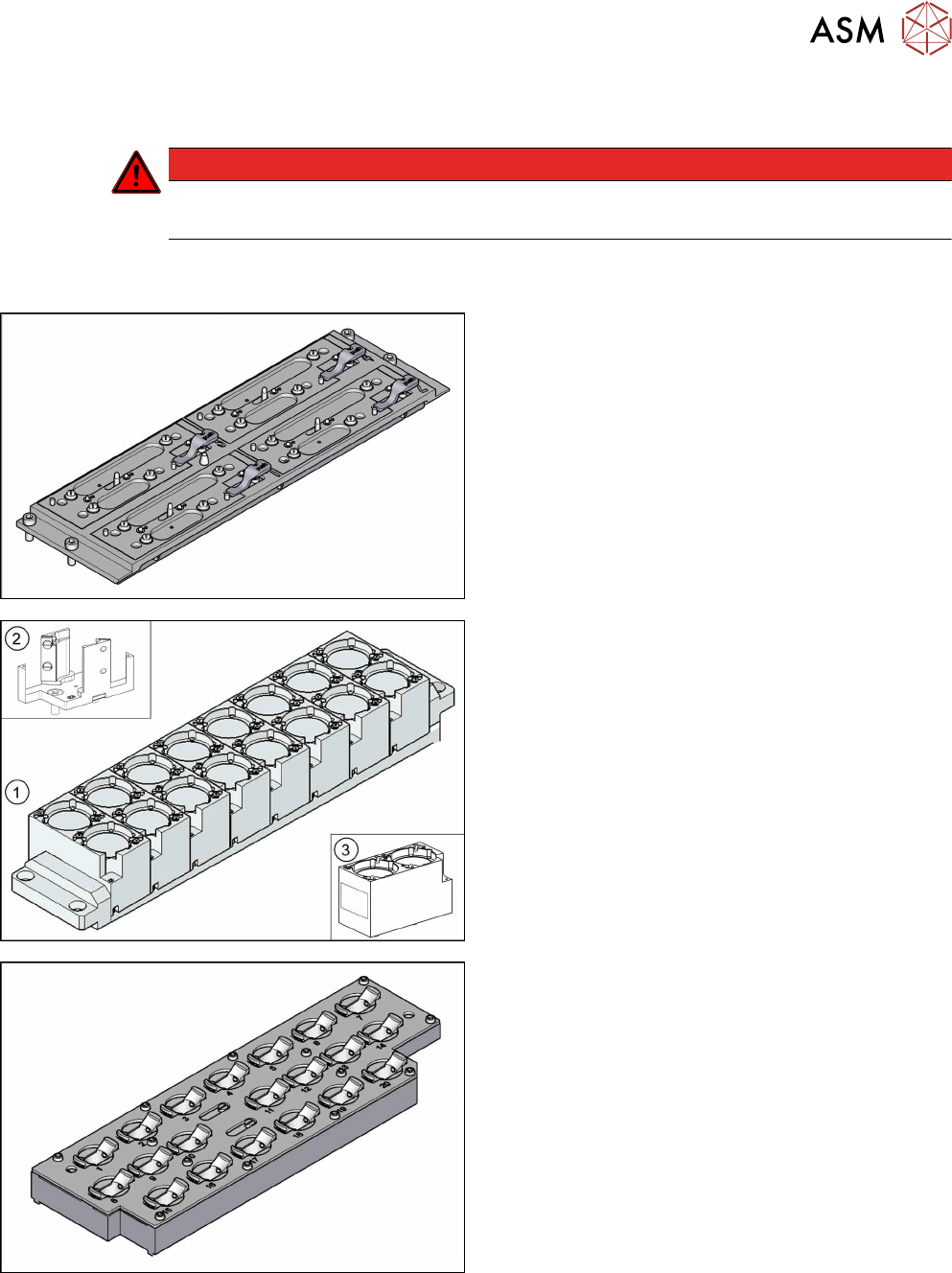

Nozzle changer short [03103649‑xx]
1. Nozzle changer TwinStar (Short) [03062452-xx]
with eight magazines for 2 nozzles(3)
2. Magazine for 1 nozzle [03001807-xx]
3. Magazine for 2 nozzles [03005191-xx]
Magazine 20xx [03066107-xx]
9 Nozzle Changers and Nozzle Stations
9.1 Nozzle Changers and Nozzle Stations - Overview
226 Service Manual SIPLACE TX Series 06/2017

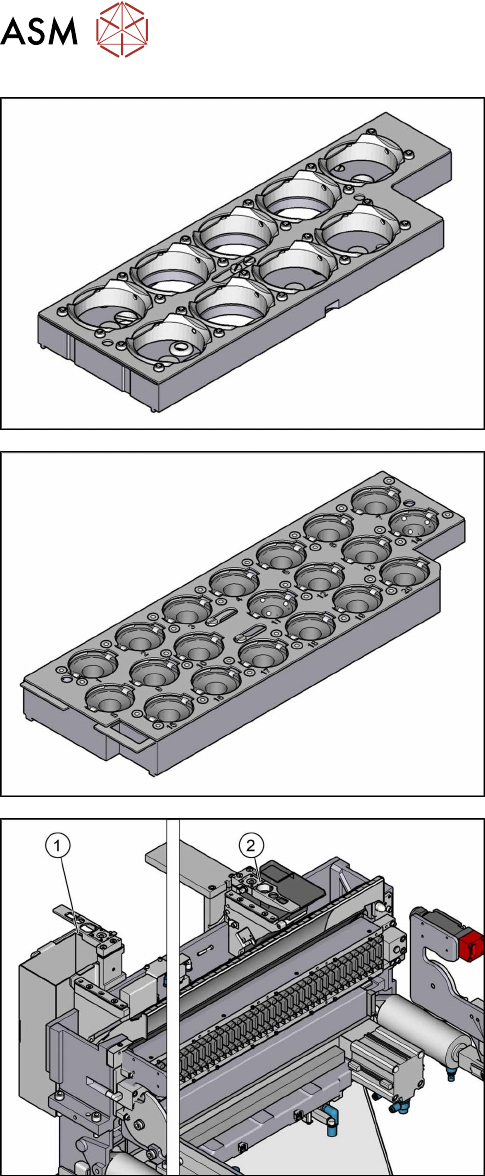

Magazine 28xx [03065782-xx]
Magazine 40xx [03101503-xx]
1. Nozzle station with reject bin for Twin/CPP head
2. Nozzle station with reject bin for C&P20P head
