2 Basic Machine 2.1 Basic Machine – Overview Service Manual SIPLACE TX Series 06/2017 23 2 Basic Machine DANGER Observe User Manual ► Please observe the safety instructions in the user manual for all work! 2.1 Basic Mach…
1 Introduction
1.5 Abbreviations
22 Service Manual SIPLACE TX Series 06/2017
2 Basic Machine
2.1 Basic Machine – Overview
Service Manual SIPLACE TX Series 06/2017 23
2 Basic Machine
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
2.1 Basic Machine – Overview
Fig.7: Basic machine – overview
1. Gas pressure shock absorbers (two per cover)
2.2 "Replacing the Gas Pressure Shock Absorber
on the Cover" [}24]
2. Swivel head (two per cover)
2.3 "Replacing the Swivel Head [03006436-
xx]" [}26]
3. Cover (two per machine)
2.4 "Replacing the Cover" [}28]
4. Machine feet (four per machine)
2.5 "Replacing the Machine Feet [03120976-
xx]" [}31]
See also
2 Replacing the Cover Switch [03110691-xx] [}70]
2 Replacing the Cover Fan [03110692-xx] [}74]
2 Basic Machine
2.2 Replacing the Gas Pressure Shock Absorber on the Cover
24 Service Manual SIPLACE TX Series 06/2017
2.2 Replacing the Gas Pressure Shock Absorber on the
Cover
Parts, equipment and tools
●
For short cover: Gas pressure shock absorber, two-stage 580N [03126577‑xx]
●
For long cover: Gas pressure shock absorber, two-stage 710N [03126589‑xx]
●
Loctite 241 [02101037‑xx], if required (for loose screwed fixtures)
NOTICE
Second Person
► You might find it advisable to enlist the help of a second person.
Overview

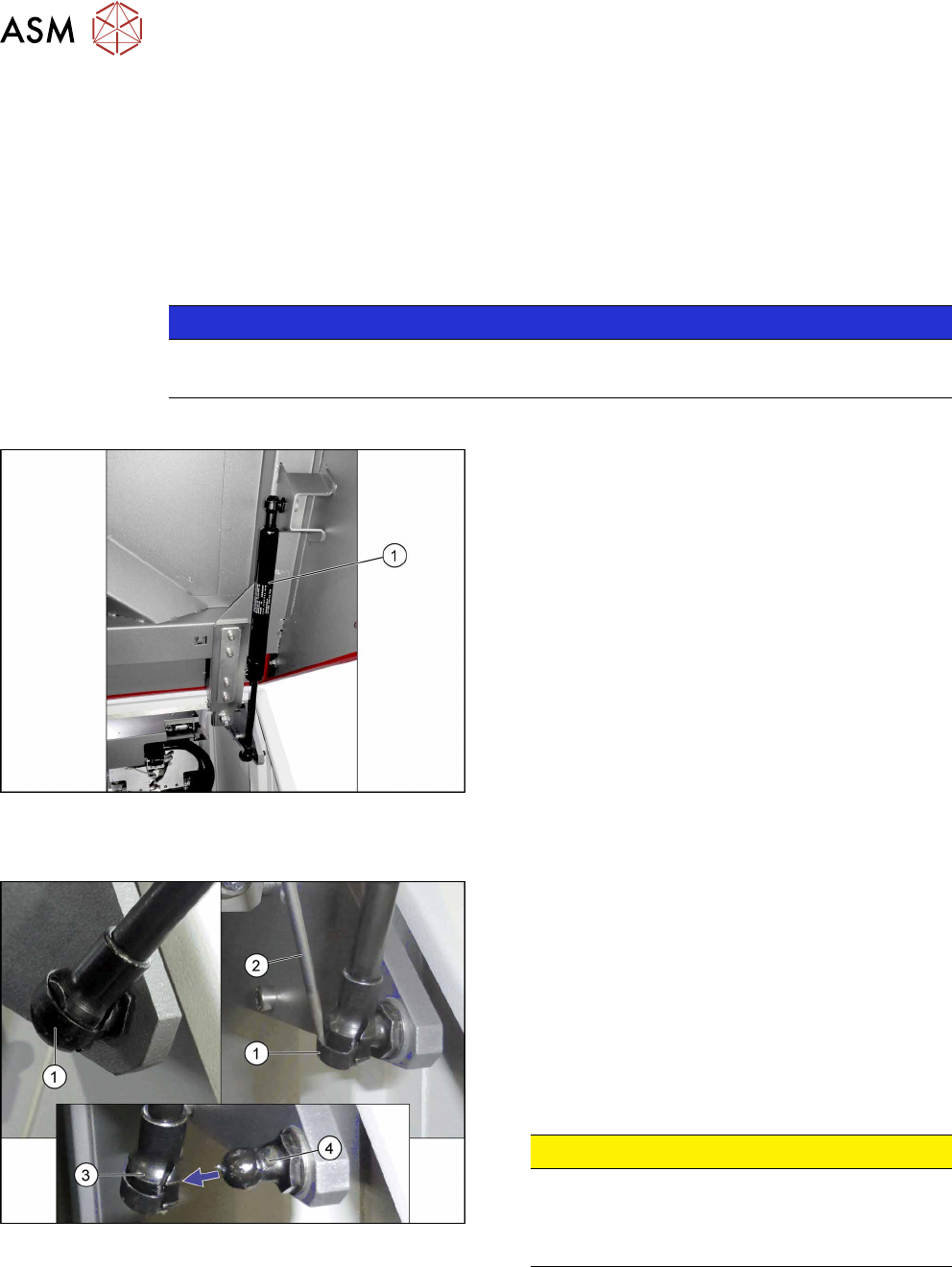

Fig.8: Gas pressure shock absorber
1. Gas pressure shock absorber on the cover
(two per cover)
Removal
Fig.9: Removing the bottom of the gas pressure shock
absorber
► Open the cover and fix it in a position which gives
you best access for working and which ensures
that it cannot close itself on its own.
A spring(1) is securing the gas pressure shock
absorber on the ball(4).
► Remove the spring(1) on the bottom of the gas
pressure shock absorber. Use a screwdriver(2)
or similar to move the spring a little.
► Pull off the bottom(3) of the gas pressure shock
absorber.
CAUTION!
Cover could fall down
As soon as one gas pressure shock absorber is
released, the cover could fall down if not suffi-
ciently fixed.
.
► Repeat for the top of the gas pressure shock
absorber.
