9 Nozzle Changers and Nozzle Stations
9.3 Replacing Nozzle Station [03090348-xx]
230 Service Manual SIPLACE TX Series 06/2017
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
CAUTION
Installation instructions
► Check the height of the nozzle station (see below).
Fig.309: Setting the height of the nozzle station
(taking the standard nozzle station as example)
► The distance(1) between the contact surface of
the nozzle station and the top edge of the upper
guide rail of the gantry needs to be
266.0+0.1/-0.3mm. You may need to use shim
plates to adjust this.
NOTICE!
Alternatively, you can measure from the top
edge of the lower guide rail of the gantry. In this
case the distance is 105.0+0.1/-0.3mm.
.
9 Nozzle Changers and Nozzle Stations
9.4 Replacing the Control Board Cable NC Valve [00334212-xx]
Service Manual SIPLACE TX Series 06/2017 231
9.4 Replacing the Control Board Cable NC Valve
[00334212-xx]
Parts, equipment and tools
●
Control board cable for NC valve [00334212-xx]
Overview

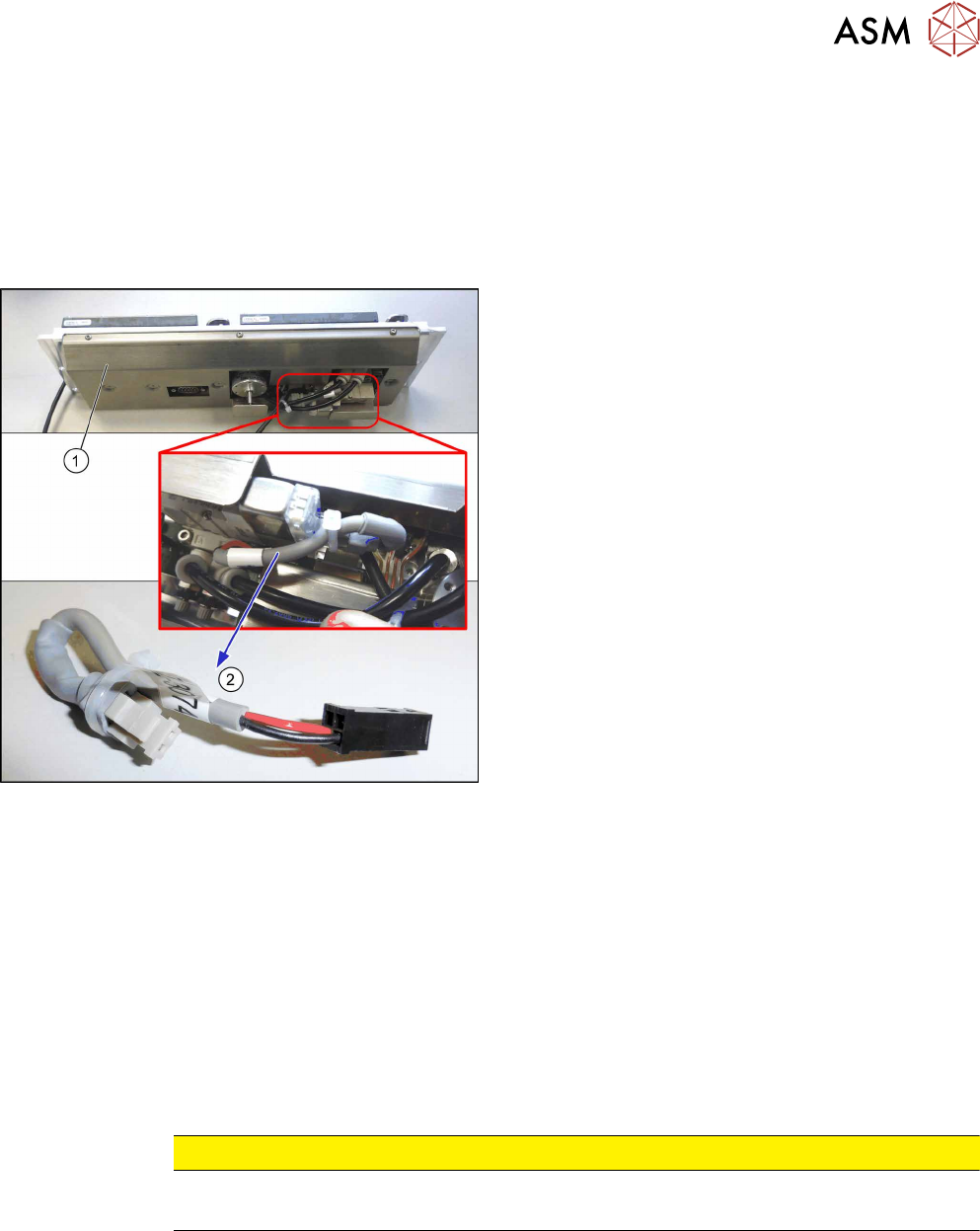

Fig.310: Control board cable
1. Nozzle changer
2. Control board cable for NC valve
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}15].
► Remove the nozzle changer from the machine (see 9.2 "Replacing the Nozzle
Changer" [}227]).
► Unplug the connectors on the cable at both ends and remove the cable. You may also need to
remove cable ties.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
CAUTION
Installation instructions
► Replace any opened cable ties.
