2.2 Replacing the Gas Pressure Shock Absorber on the Cover
24 Service Manual SIPLACE TX Series 06/2017
2.2 Replacing the Gas Pressure Shock Absorber on the
Cover
Parts, equipment and tools
●
For short cover: Gas pressure shock absorber, two-stage 580N [03126577‑xx]
●
For long cover: Gas pressure shock absorber, two-stage 710N [03126589‑xx]
●
Loctite 241 [02101037‑xx], if required (for loose screwed fixtures)
NOTICE
Second Person
► You might find it advisable to enlist the help of a second person.
Overview
Fig.8: Gas pressure shock absorber
1. Gas pressure shock absorber on the cover
(two per cover)
Removal
Fig.9: Removing the bottom of the gas pressure shock
absorber
► Open the cover and fix it in a position which gives
you best access for working and which ensures
that it cannot close itself on its own.
A spring(1) is securing the gas pressure shock
absorber on the ball(4).
► Remove the spring(1) on the bottom of the gas
pressure shock absorber. Use a screwdriver(2)
or similar to move the spring a little.
► Pull off the bottom(3) of the gas pressure shock
absorber.
CAUTION!
Cover could fall down
As soon as one gas pressure shock absorber is
released, the cover could fall down if not suffi-
ciently fixed.
.
► Repeat for the top of the gas pressure shock
absorber.
2 Basic Machine
2.2 Replacing the Gas Pressure Shock Absorber on the Cover
Service Manual SIPLACE TX Series 06/2017 25

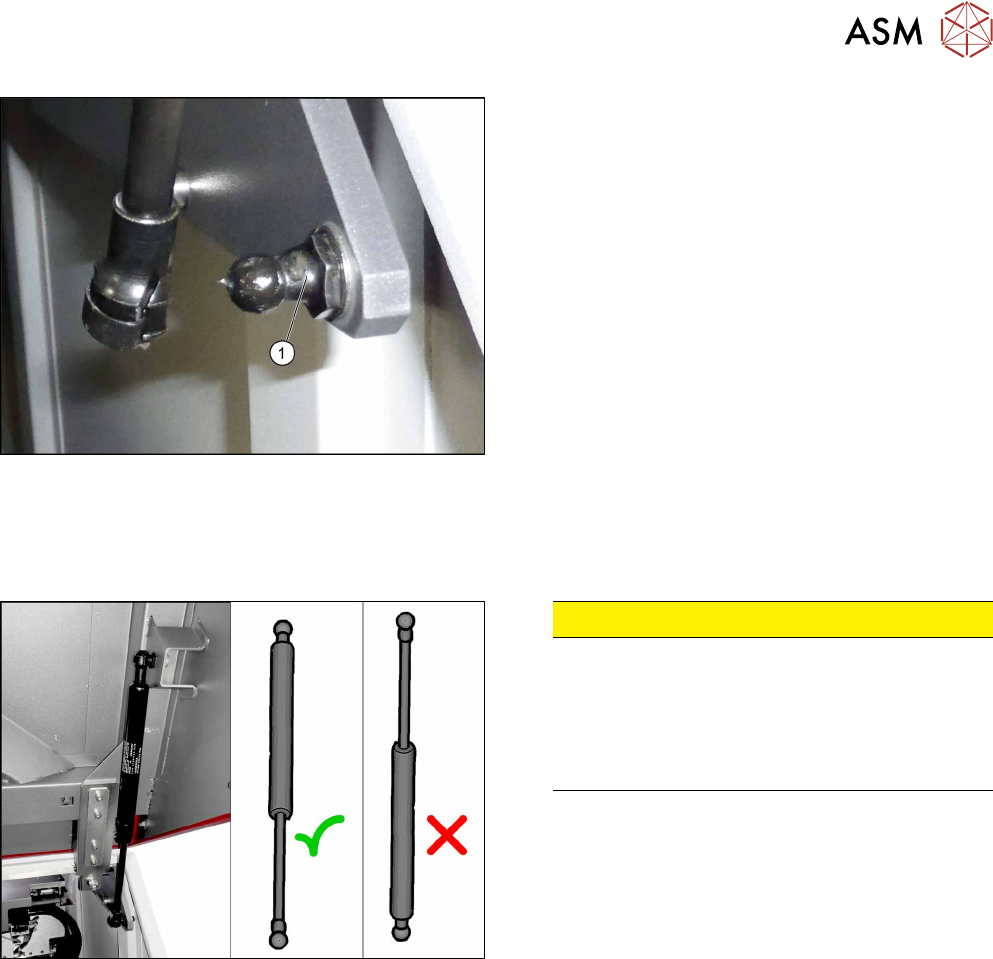

Fig.10: Ball at the gas pressure shock absorber
► If necessary: remove the ball(1) with an open-
ended wrench.
► If necessary: repeat for the ball on the top of the
gas pressure shock absorber.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
CAUTION!
Installation instructions
Secure the threads of the balls with Loctite241.
Observe the correct installation direction for the
gas pressure shock absorber.
You may have to compress the gas pressure
shock absorber slightly when installing it.
.
