10.7 Replacing Component Deposit [03117664-xx]
Parts, equipment and tools
●
Component deposit assembly [03117664-xx]
Overview

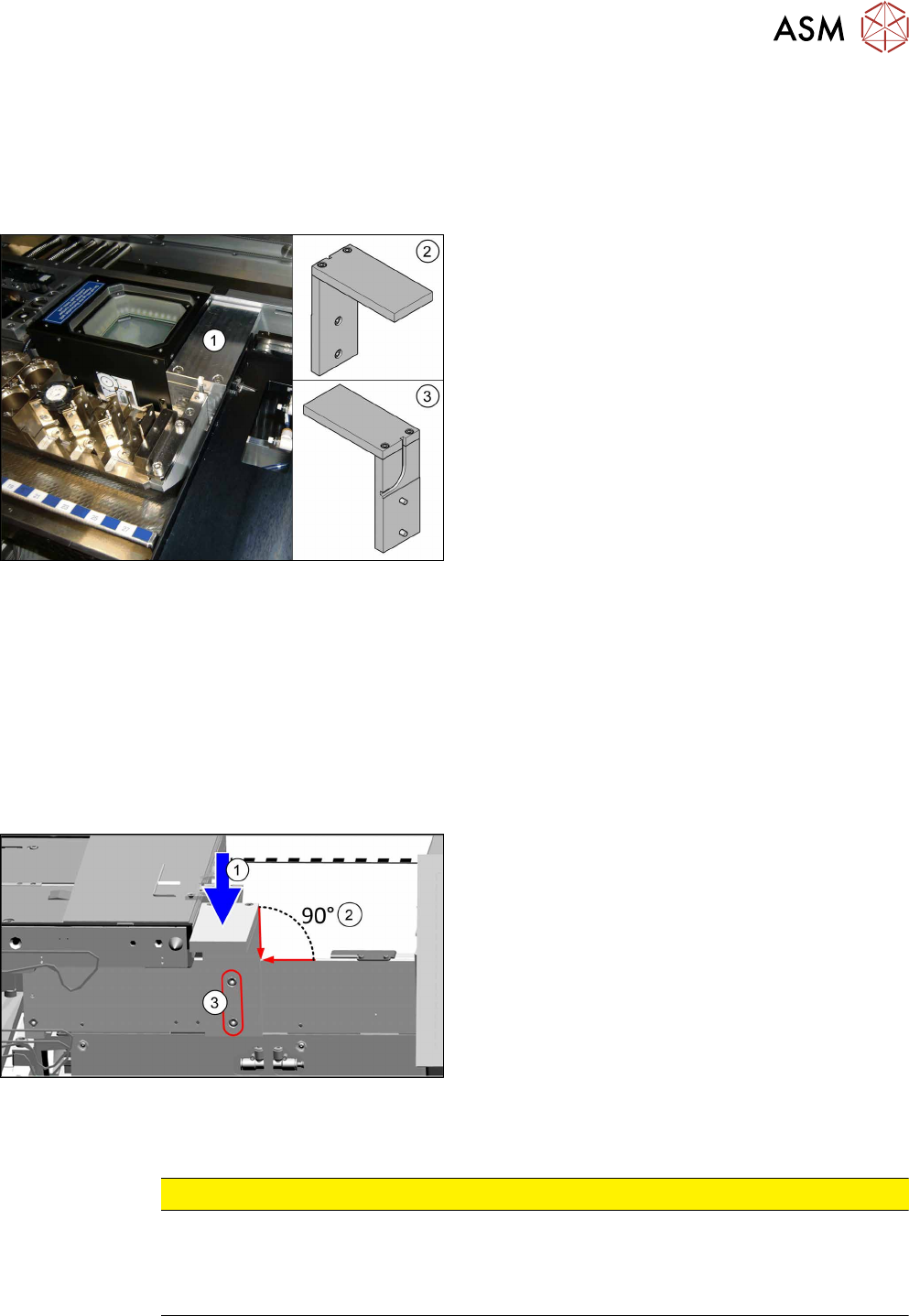

Fig.340: Component deposit on COTi
The component deposit is an option.
1. Component deposit, fitted
2. Component deposit front view
3. Component deposit back view
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}15].
► Locations with a JTF: You may want to move out the COTi central unit from the machine
about 50 mm for better access (see 10.3 "Replacing the COTi Central Unit and Lifting Mech-
anics" [}235]).
► Unscrew the component deposit from the backside.
Installation
Fig.341: Mounting the component deposit
► Fit the new component deposit:
Press it down(1), align it 90° to the COTi central
unit(2) and tighten the two screws(3).
► Follow the removal instructions in reverse order for further installation. Also observe the fol-
lowing instructions:
CAUTION
Installation instructions
► Reassemble the COTi central unit (see 10.3 "Replacing the COTi Central Unit and Lift-
ing Mechanics" [}235]).
► Perform necessary calibrations for the location.
10 COT Insert
10.7 Replacing Component Deposit [03117664-xx]
248 Service Manual SIPLACE TX Series 06/2017
11 Cutter
10.7 Replacing Component Deposit [03117664-xx]
Service Manual SIPLACE TX Series 06/2017 249
11 Cutter
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
WARNING
Risk of injury when working near the tape cutter.
When working in the area of the tape cutter, move the component trolley out of the machine
and disconnect the machine from the mains supply and the compressed air supply.
► Wait until the operating pressure has dropped to 0 MPa.
► Always secure the machine against unauthorized reactivation.
► Do not reach into the tape cutter.
CAUTION
Risk of injury when performing service work on the tape cutter.
Never support the tape cutter on your body, e.g., on your knees or thighs. Do not place
your feet under the tape cutter.
► Wear appropriately thick protective gloves.
► When removing/fitting the tape cutter, hold it only outside on the left and right.
