11 Cutter 11.9 Replacing the Cutter Blades Service Manual SIPLACE TX Series 06/2017 267 Installation – requirements CAUTION Risk of injury! There is a high risk of injury from the blades and the tape deflector. ● Wear ap…
11 Cutter
11.9 Replacing the Cutter Blades
266 Service Manual SIPLACE TX Series 06/2017

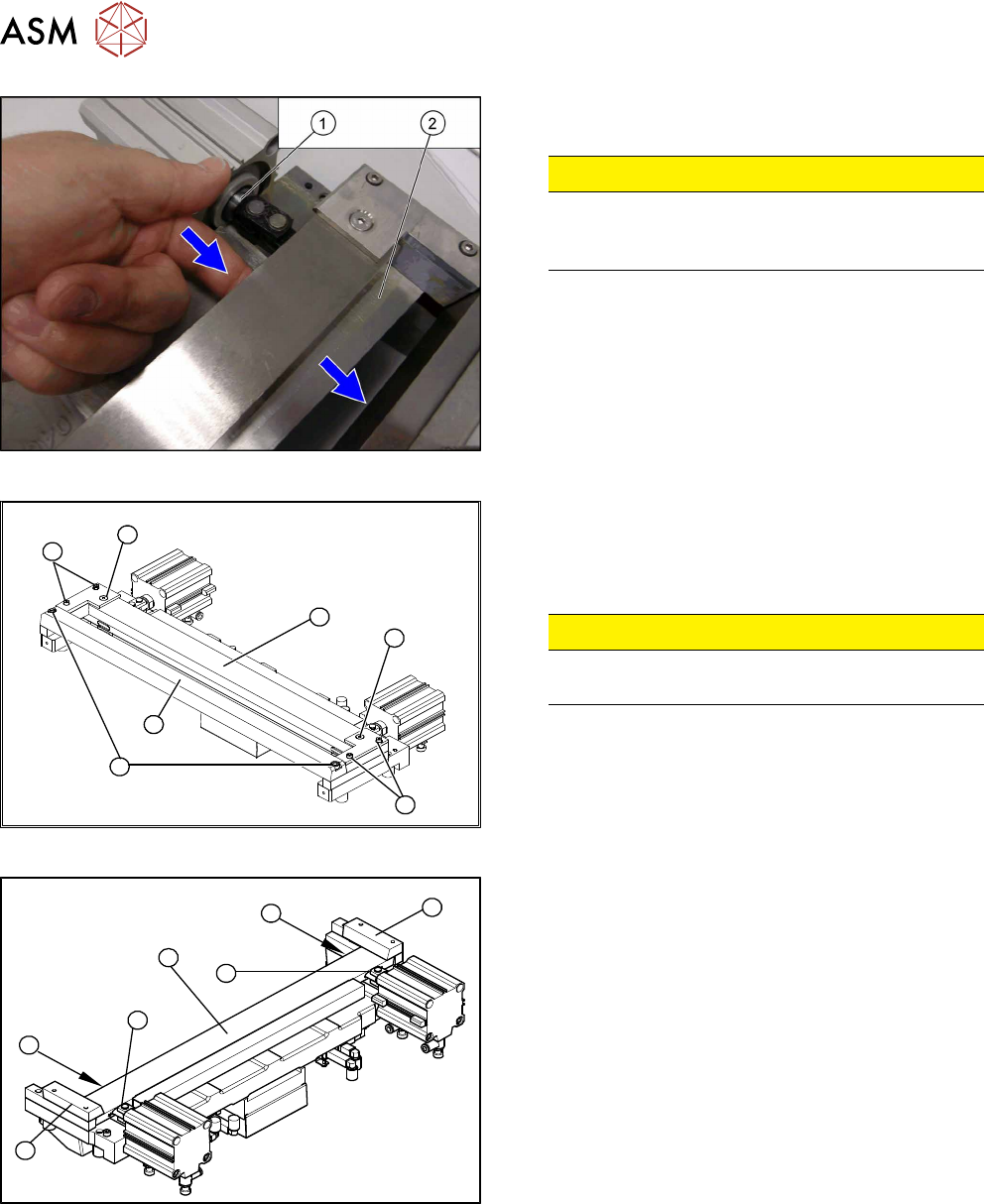

Fig.370: Movable blade
► Loosen the movable blade(2) from the piston(1)
of the short-stroke cylinder.
CAUTION!
Risk of injury!
There is a risk of injuring yourself on the cutting
edge of the blades.
.
4
3
5
1
4
3
2
Fig.371: Cutter
► Remove the two screws(1) fastening the station-
ary blade(2).
► Remove the screws fastening the left and right
tape deflectors (3) above the moveable blade.
CAUTION!
Not all screws!
Do not loosen these two screws(4)!
.
► Remove the tape deflector holder with the tape
deflector(5) and carefully place the whole unit
down (with the tape deflector facing upwards).
3
4
1
5
4
3
2
Fig.372: Cutter
► Remove the right-hand holding-down device (1)
and the left holding-down device (2), plus the
spacers below.
► Use an SW10 open-ended wrench to push
against the joint (3), while loosening the hexagon
socket-head screw of the joint (4) in the move-
able blade. This may require more strength than
usual as the screws have been secured with Loc-
tite243.
► Grasp both ends of the moveable blade (5) with
the protective gloves and pull it upwards and out.
11 Cutter
11.9 Replacing the Cutter Blades
Service Manual SIPLACE TX Series 06/2017 267
Installation – requirements
CAUTION
Risk of injury!
There is a high risk of injury from the blades and the tape deflector.
●
Wear appropriately thick protective gloves!
●
Make sure all parts are clean before installing them.
●
Do not use fat dissolving agents on the blades (risk of rust film forming).
●
The new blades are covered with a fine lubrication film.
The blades may only be greased with the lubricants described in the maintenance manual.
Any other lubricant would impair the movement of the moveable blade.
●
If the new blades are not clean, carefully clean them (wear protective gloves) with a clean
brush or a well folded, clean and dry cloth.
Installation – preparations
1
6
5
4
3
2

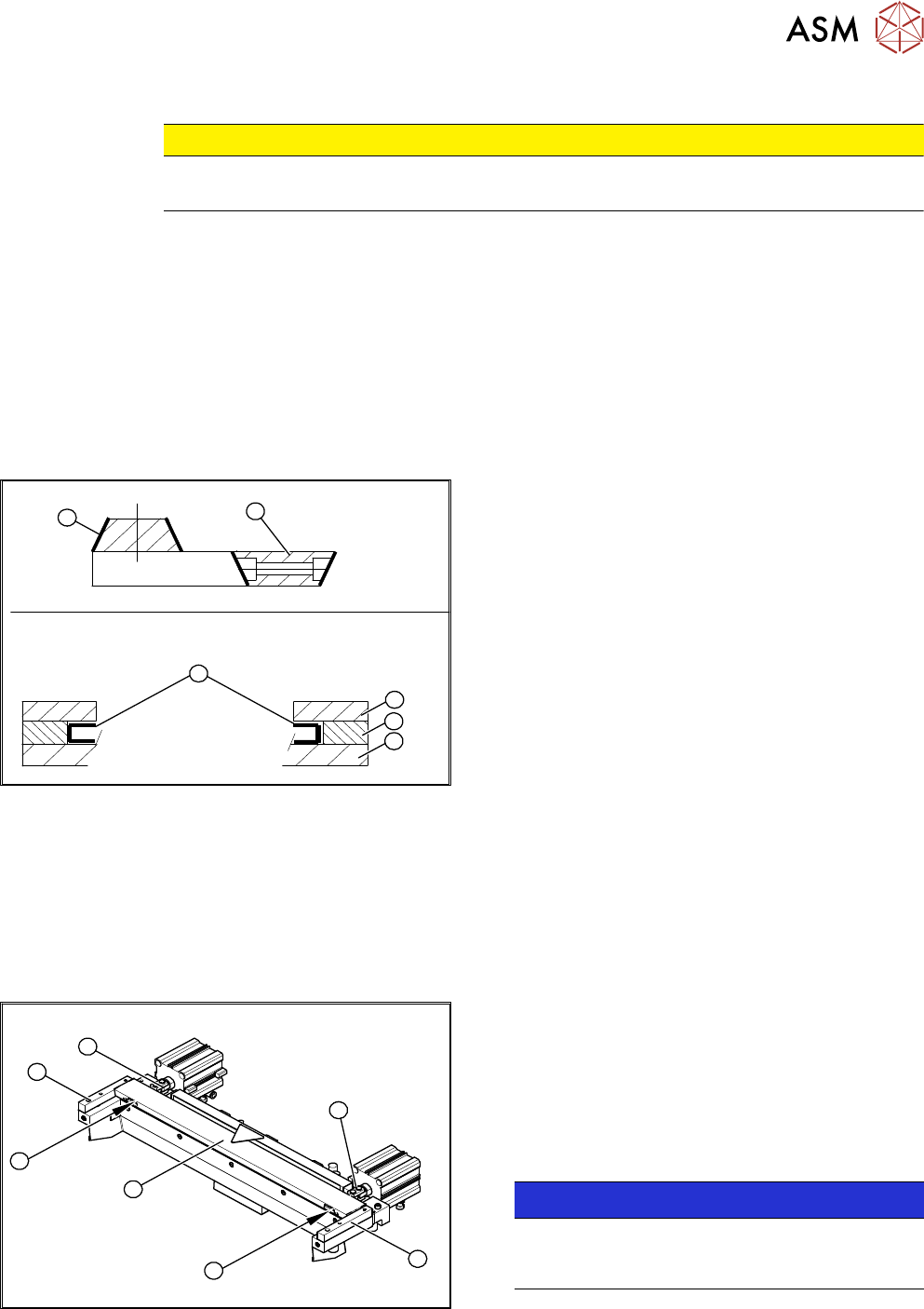

Fig.373: Blades
1. Stationary blade
2. Moveable blade
3. Sliding surfaces to be lubricated
4. Holding-down device
5. Spacer
6. Contact surface
► Make sure the cutter is in the correct rotary position (see the slant of the blade).
► Check the positioning of the individual blades to one another.
► Before installation, lubricate the sliding side surfaces of the moveable blade with Klüber BEM
34-132 and make sure that the recesses are filled. These will be refilled later on during main-
tenance with the lubrication nipples.
Installation
2
3
4
1
4
3
2
Fig.374: Cutter
► Correctly insert the moveable blade (1) into the
cutter and shift it along to its original installation
position.
► Apply Loctite243 to the two M4 screws to fasten
the joint in the moveable blade.
► Insert the screws (2) into the left and right holes,
provided in the moveable blade.
NOTICE!
Make sure that the joint (3) can slide into the slot
(=anti-twist function) in the moveable blade
without obstruction.
.
► Use an SW10 open-ended wrench to push against the relevant joint (3) and then tighten both
screws(2) to a torque of 6Nm.
11 Cutter
11.9 Replacing the Cutter Blades
268 Service Manual SIPLACE TX Series 06/2017
► Fit the two caps over the fastening screws on the movable blade.
► Place the two new spacers (4) to the left and right of the moveable blade. The spacer side
marked with a number must face away from the blade.
CAUTION
The spacers and blades are matched!
► Do not use any spacers from other sets of blades.
► Lubricate the contact/slide surfaces for the moveable blade, as described in the section "Pre-
parations".
CAUTION
Only apply grease to the exact points required!
The overlapping cutting surfaces may only be greased with Interflon Fin grease
[03020782-xx]. Also observe the preventive maintenance manual for your machine.
1
2
4
1
5
4
3
2
Fig.375: Cutter
► Place a shim (0.5 - 1.0 mm thickness) on the left
and right, between the spacer and the front of the
movable blade (1).
► Place the previously removed holding-down
device (2) onto the new spacers.
NOTICE!
Holding-down device
The holding-down devices with version 03 are
those designed for cutters with version 04 (=
with tape deflector)
.
► Insert the dismantled wiper unit (3) and the holding-down devices and tighten loosely with the
four hexagon socket-head screws (4).
► Push the spacers (with inserted feeler gauges) as far as possible in the direction of the move-
able blade. The maximum permissible gap is 1.0 mm.
► Now tighten the four screws (4) crosswise at the holding-down device.
► Remove the two feeler gauges.
► Insert the new stationary blade (5) in the correct position and screw tight.
