2 Basic Machine 2.3 Replacing the Swivel Head [03006436-xx] Service Manual SIPLACE TX Series 06/2017 27 Fig.13: Removing the swivel head ► Close the cover. ► Remove the nut (1) . ► Remove the cover from the machine. ► R…
2 Basic Machine
2.3 Replacing the Swivel Head [03006436-xx]
26 Service Manual SIPLACE TX Series 06/2017
2.3 Replacing the Swivel Head [03006436-xx]
Parts, equipment and tools
●
Swivel head BEM 08-20-501 M8 [03006436-xx]
●
Loctite 241 [02101037‑xx]
NOTICE
Second Person
► You might find it advisable to enlist the help of a second person.
Overview
Fig.11: Swivel head
1. Swivel head
Removal
Fig.12: Removing the bottom of the gas pressure shock ab-
sorber
► Open the cover and fix it in a position which gives
you best access for working and which ensures
that it cannot close itself on its own.
A spring(1) is securing the gas pressure shock ab-
sorber on the ball(4).
► Remove the spring(1) on the bottom of the gas
pressure shock absorber. Use a screwdriver(2)
or similar to move the spring a little.
► Pull off the bottom(3) of the gas pressure shock
absorber.
CAUTION!
Cover could fall down
As soon as one gas pressure shock absorber is
released, the cover could fall down if not suffi-
ciently fixed.
.
► Repeat for the gas pressure shock absorber on
the other side of the cover.
2 Basic Machine
2.3 Replacing the Swivel Head [03006436-xx]
Service Manual SIPLACE TX Series 06/2017 27
Fig.13: Removing the swivel head
► Close the cover.
► Remove the nut (1).
► Remove the cover from the machine.
► Remove the nut (2).
► Remove the swivel head.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
CAUTION
Installation instructions
► If the nuts are not self-locking, secure them with Loctite241.
► Set the nut(1).
Make sure that the cover can move freely for opening and closing.
Make sure that the cover is not distorted.
See also: 2.4.1 "Setting the Covers" [}30]
2 Basic Machine
2.4 Replacing the Cover
28 Service Manual SIPLACE TX Series 06/2017
2.4 Replacing the Cover
Parts, equipment and tools
●
Choose the required part:
– Cover, long – location 1 TX [03118640‑xx]
– Cover, short – location 1 TX [03118601‑xx]
– Cover – location 2 [03117921-xx]
●
Second person
Overview

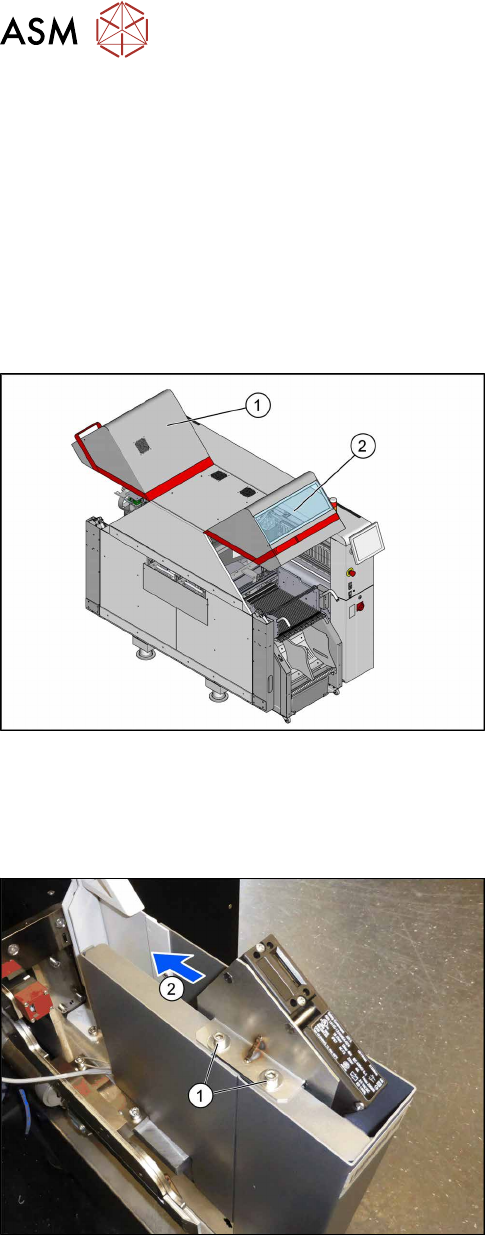

Fig.14: Cover.
1. Cover location 1
2. Cover location 2
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}15].
Fig.15: Screws at the cover switch
► Remove the two screws(1) fastening the cover
switch.
► Move the cover switch(2) towards the middle of
the machine, so it cannot be damaged by an un-
adjusted cover.
