11 Cutter
11.15 Replacing the Silencer [00310744-xx]
Service Manual SIPLACE TX Series 06/2017 277
11.15 Replacing the Silencer [00310744-xx]
Parts, equipment and tools
Fig.393: Silencer
●
Silencer G-1/8 [00310744-xx]
Overview
Fig.394: Silencer on cutter
1. Silencer
The silencers are installed at the solenoid valves on
the lower side of the cutter.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}15].
► Try to perform the exchange on the installed cutter.
If access is too limited, remove the cutter from the machine:
11.3 "Replacing the Cutter on the COT Insert [03066690-xx]" [}252]
► Remove the silencer with a SW13 spanner.
Installation
► Follow the removal instructions in reverse order for installation.
11 Cutter
11.15 Replacing the Silencer [00310744-xx]
278 Service Manual SIPLACE TX Series 06/2017
12 SIPLACE TX-Series Component Trolley
12.1 SIPLACE TX-Series Component Trolley - Overview
Service Manual SIPLACE TX Series 06/2017 279
12 SIPLACE TX-Series Component Trolley
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
12.1 SIPLACE TX-Series Component Trolley - Overview

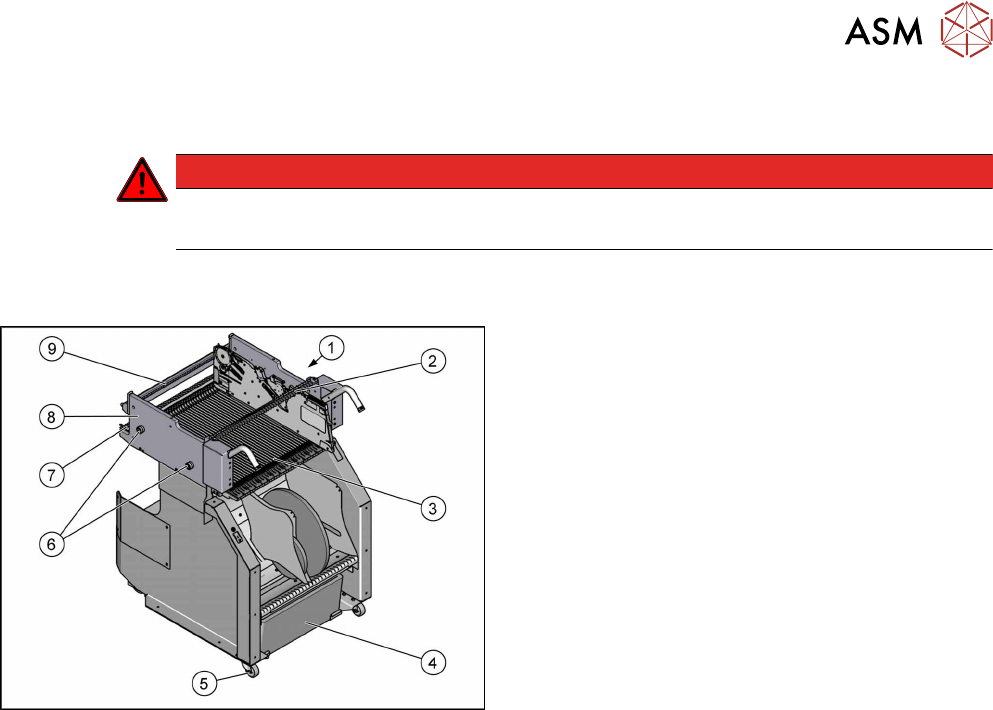

Fig.395: Component trolley overview
1. Actuator/protective bracket
12.6 "Replacing the Actuator/Protective
Bracket" [}284]
2. Feeder centering
12.7 "Replacing the Feeder Centering
[03028910-xx]" [}285]
3. Guide profile (Ω profile) and
feeder entering guide
12.4 "Replacing the Guide Profile/Entering Guide
Feeder" [}282]
12.4 "Replacing the Guide Profile/Entering Guide
Feeder" [}282]
4. Tape waste container
5. Reels
12.2 "Replacing the Rollers" [}280]
6. Bearing assembly
12.5 "Replacing the Bearing Assembly (Centering
Sleeve) [03103947-xx]" [}283]
7. Locking latch
12.3 "Replacing the Locking Latch [03069205-
xx]" [}280]
8. Changeover table
9. Stop bar with centering holes
