12.6.1 Setting the Actuator on the Component Trolley

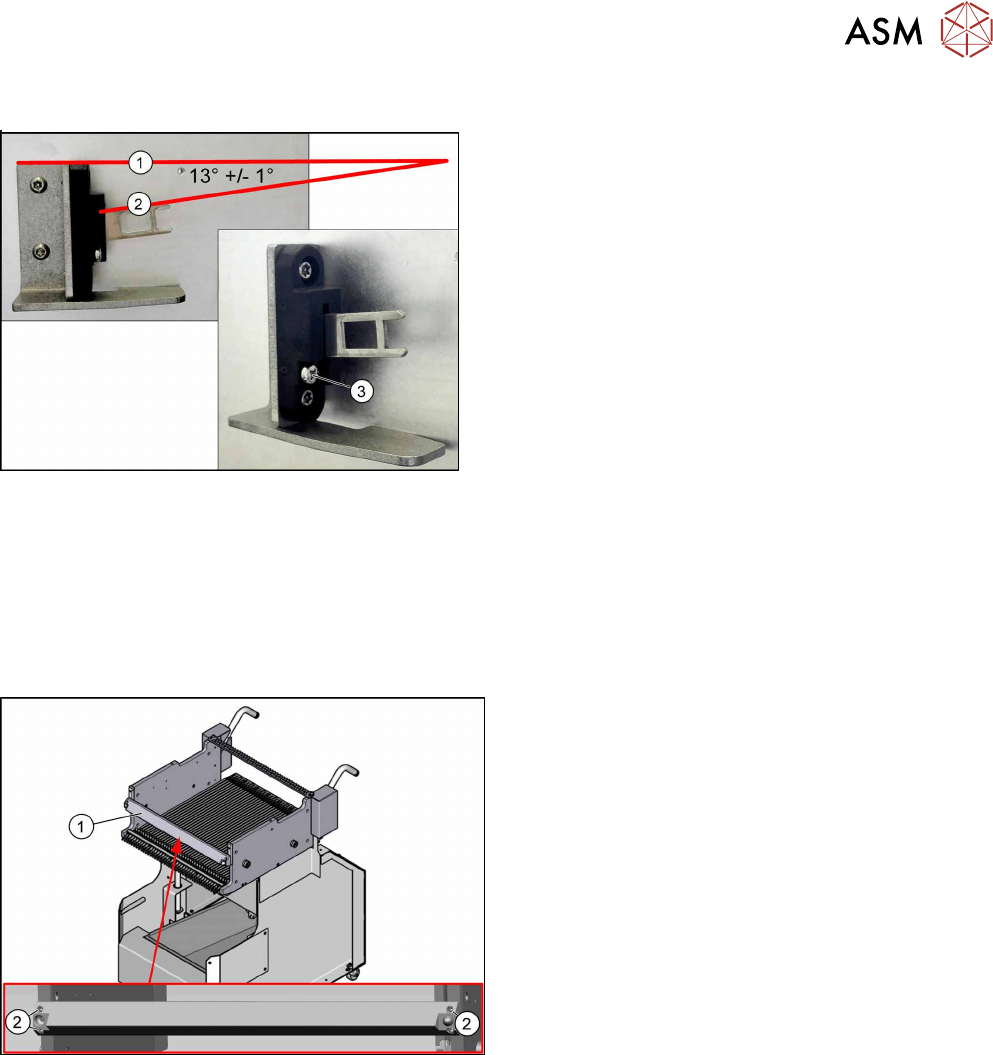

Fig.402: Setting the actuator
► Set the actuator with the help of the adjustment
screw (3).
Between the upper edge(1) of the table and the ac-
tuator(2) you need to set an angle of 13°+/‑1°.
The actuator must be able to slide into the safety
switch without rubbing against the plastic.
12.7 Replacing the Feeder Centering [03028910-xx]
Parts, equipment and tools
●
Feeder centering X-Series [03028910‑xx]
Overview
Fig.403: Feeder centering on component trolley
1. Feeder centering
2. Four fastening screws for the feeder centering
Removal
► Remove the four screws fastening the feeder centering.
► Remove the feeder centering.
Installation
► Follow the removal instructions in reverse order for installation.
12 SIPLACE TX-Series Component Trolley
12.7 Replacing the Feeder Centering [03028910-xx]
286 Service Manual SIPLACE TX Series 06/2017
13 Docking Station for Component Trolley
13.1 Docking Station for Component Trolley - Overview
Service Manual SIPLACE TX Series 06/2017 287
13 Docking Station for Component Trolley
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
NOTICE
Retrofit kit for TX-Series
The X-Series docking station can be retrofitted for user with TX-Series component trolleys.
► For more details, read the technical information "Conversion kit for TX component trol-
ley docking station" [DE:TI2017‑01D02] [EN:TI2017‑01E02].
13.1 Docking Station for Component Trolley - Overview
3
4
1
7
6
5
4
2
Fig.404: Docking station – overview 1
1. Docking station – assembly [00116933-xx]
2. Unlocking pushbutton [00334095-xx]
13.10 "Replacing the Unlocking Pushbutton
[00334095-xx]" [}296]
3. Power pack and pressure control valve for
locking cylinder (behind the cover)
13.2 "Replacing the Power Pack
[03121806-xx]" [}288]
4. Locking lever [03025104-xx]
13.5 "Replacing the Locking Lever
[03025104-XX]" [}291]
5. Feeder unlocking device 40-fold [03011582-XX]
13.7 "Replacing the 40-Fold Feeder Unlock
Device [03011582-xx]" [}293]
6. Feeder Control Unit (FCU)
13.8 "Replacing the Feeder Control Unit (FCU)
[03059623Sxx]" [}294]
7. Short-stroke cylinder for locking unit
[03034831‑xx]
13.4 "Replacing the Locking Unit Short-Stroke
Cylinder [03034831-xx]" [}290]
1
4
3
2
Fig.405: Docking station – overview 2
1. Control valve [03003489-xx]
13.11 "Replacing the Control Valve [03003489-
xx]" [}297]
2. ON/OFF switch
3. Microfuse [03033387-xx]
13.3 "Replacing the Microfuse [03033387-
xx]" [}289]
4. Pressure control valve for bulkcase feeder and
main connection (5.5 bar)
●
13.6 "Replacing the Positions End Switch of
the Component Trolley Locking Device
[03033395-xx]" [}292]
●
13.9 "Replacing the Complete Coupling - Earth-
ing and Compressed Air for the Bulk
Case" [}295]
