13 Docking Station for Component Trolley
13.6 Replacing the Positions End Switch of the Component Trolley Locking Device [03033395-xx]
292 Service Manual SIPLACE TX Series 06/2017
13.6 Replacing the Positions End Switch of the Component
Trolley Locking Device [03033395-xx]
Parts, equipment and tools
●
Position end switch [03033395-xx]
Overview
1
2

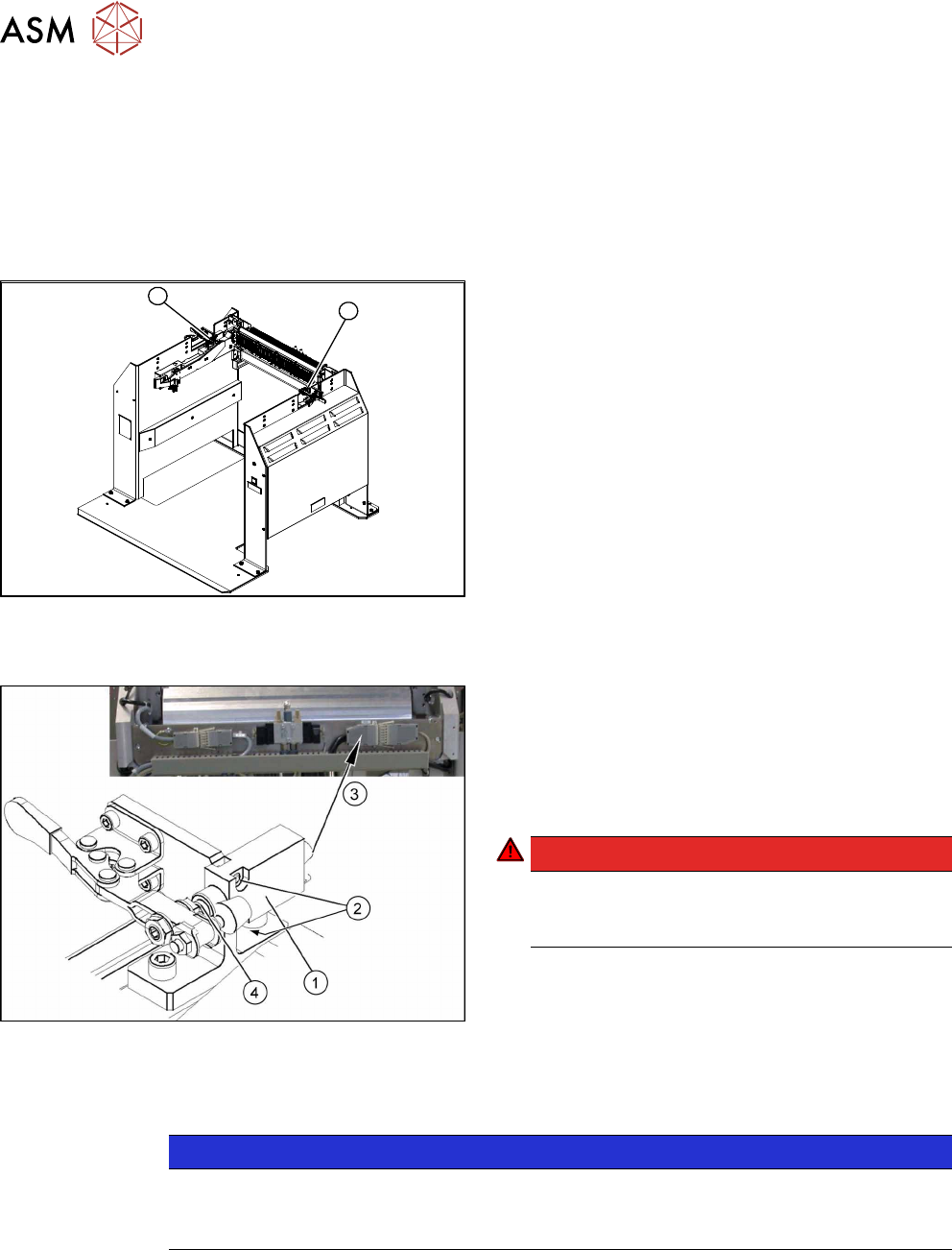

Fig.414: Position end switch left and right
1. Position end switch – on the left side
2. Position end switch – on the right side
Removal
Fig.415: Removing the position end switch
1. Position end switch with connection cable
2. Two fastening screws
3. Connection cable to connector unit
4. Actuation by locking lever
 DANGER!
Switch off the voltage supply
Press the ON/OFF button to switch off and then
unplug the power supply.
.
► Remove the two screws fastening the limit switch.
► Open the casing of the connector at the back and label the terminal connections.
NOTICE
Connector for left and right position end switch
► The connection cables for the left and right position end switch are connected to a
common connector.
► Disconnect the connection cable for the relevant position end switch, in the connector.
► Unthread the connection cable and remove the position end switch.
13 Docking Station for Component Trolley
13.7 Replacing the 40-Fold Feeder Unlock Device [03011582-xx]
Service Manual SIPLACE TX Series 06/2017 293
Installation
► Loosely screw in the new position end switch.
► Run the connection cable to the connector.
► Reconnect the connection cable and close the connector casing.
► Align the position end switch so that the locking lever actuator switches properly.
► Tighten the fastening screws.
► Connect the power pack connection cable and press the ON/OFF button to switch on.
► Check the position end switch function by trying out the locking procedure.
13.7 Replacing the 40-Fold Feeder Unlock Device
[03011582-xx]
Parts, equipment and tools
●
40 fold feeder unlocking device [03011582-xx]
Overview
1
Fig.416: Feeder unlocking device on docking station
1. 40 fold feeder unlocking device
Removal / installation
The 40-fold feeder unlocking device is the same assembly used in the COTi. The service work is
identical with the procedure used for the COTi. All necessary service work is described there.
13 Docking Station for Component Trolley
13.8 Replacing the Feeder Control Unit (FCU) [03059623Sxx]
294 Service Manual SIPLACE TX Series 06/2017
13.8 Replacing the Feeder Control Unit (FCU) [03059623Sxx]
Parts, equipment and tools
●
X-FCU, X-Series [03059623Sxx] (replaces: [03020068-xx])
NOTICE
Replacing the old FCU with a new one
If an old FCU is being replaced with a new one, the docking station will need an additional
"cable set X-FCU for docking station X 116933" [03098897-xx].
► For more information, read the technical information "Replacing the FCU" (X-Series,
SX4/DX4, X-Series S) [DE: TI2014-11D15] [EN: TI2014-11E15].
Overview
1
Fig.417: FCU on docking station
1. Feeder control unit
Removal / installation
The FCU is the same assembly used in the COT insert. The service work is identical with the pro-
cedure used for the COT insert. All necessary service work is described there.
See also
2 Replacing the Feeder Control Unit (FCU) [}241]
