14 JEDEC Tray Feeder
14.1 SIPLACE JTF-ML
Service Manual SIPLACE TX Series 06/2017 303

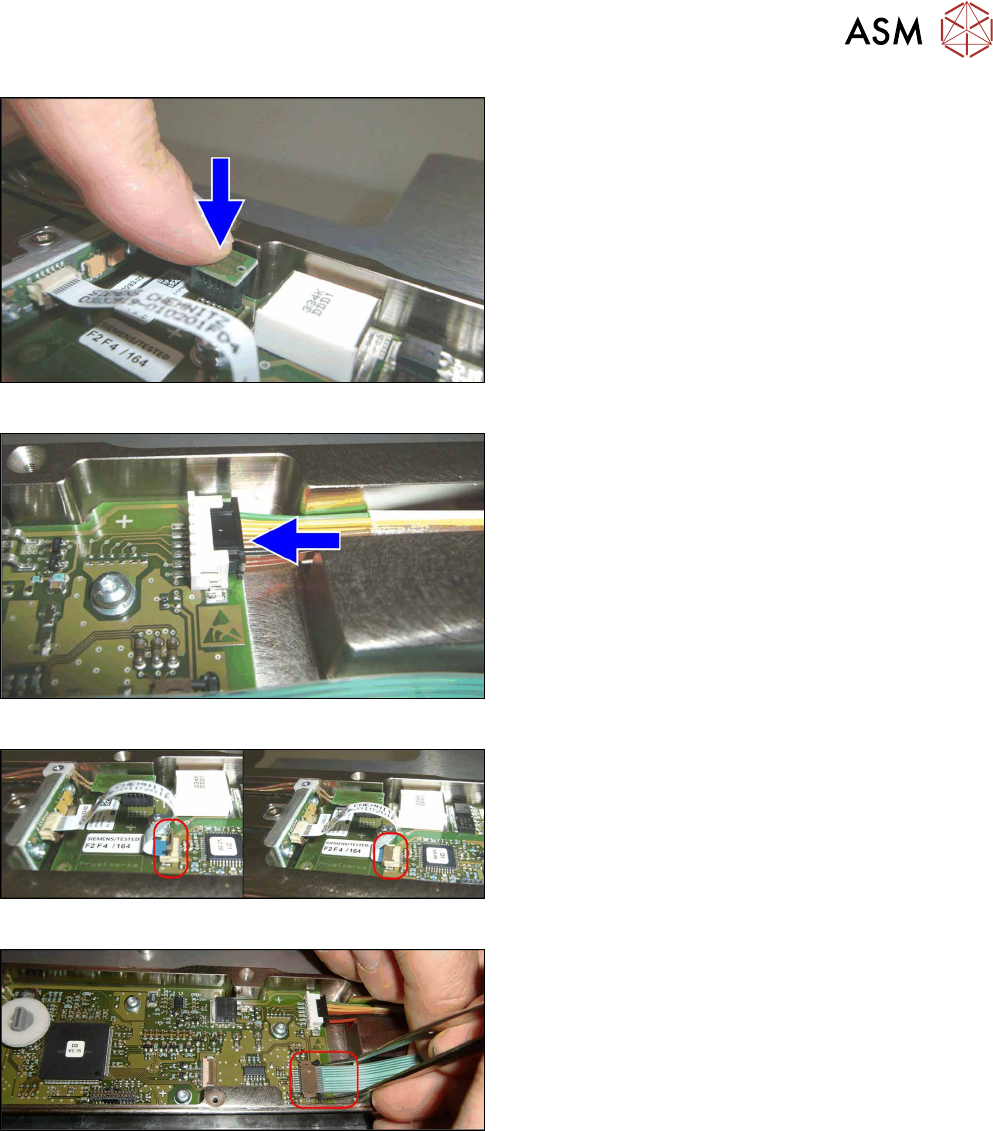

Fig.436: Connecting X1
► Connect X1.
Fig.437: Connecting the X4
► Connect X4.
Fig.438: Connecting the X3
► Connect X3:
Mount the flat ribbon cable into the X3 base.
Check that the connector is fully slipped in the X3
base and the cable runs parallel to the X3 base.
Close the interlock by folding it back.
► Check the correct connector locking by pulling
the flat ribbon cable gently.
Fig.439: Connecting the X17
► Connect X17:
Connect the flat ribbon cable to the X17 base.
Make sure that the cable is fully inserted into the
X17 base and that it runs parallel to the X17
base.
Close the interlock by pushing it back.
Use tweezers to push it.
► Check the correct connector locking by pulling
the flat ribbon cable gently.
14 JEDEC Tray Feeder
14.1 SIPLACE JTF-ML
304 Service Manual SIPLACE TX Series 06/2017

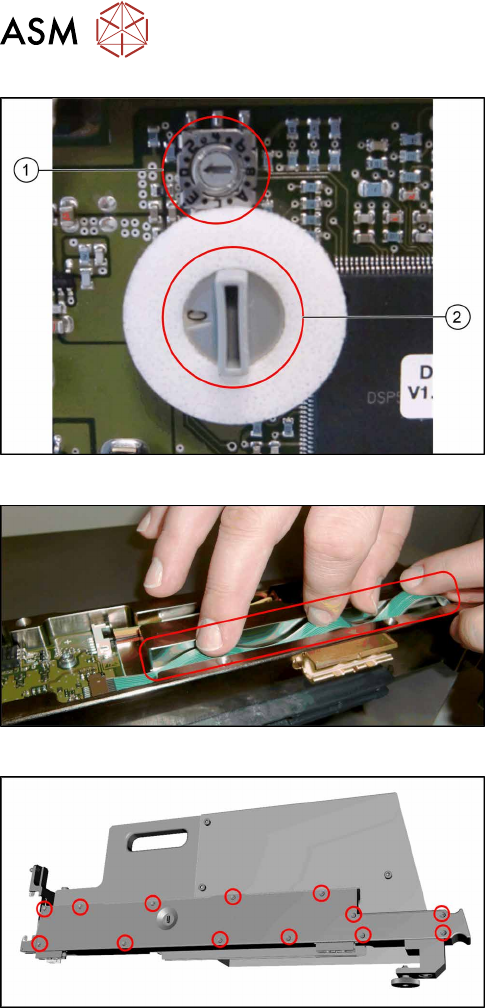

Fig.440: Checking the switches
► Check the switches for addressing and commu-
nication protocol:
1. The small switch must be set to "0".
2. The large switch must be set to "C".
Fig.441: Flat ribbon cable
► Take care not to fold the flat ribbon cable when
mounting the cover in the next step.
Fig.442: Fitting the cover
► Refit the cover.
14 JEDEC Tray Feeder
14.1 SIPLACE JTF-ML
Service Manual SIPLACE TX Series 06/2017 305
14.1.5 Replacing the EDIF [03013678-xx]
Parts, equipment and tools

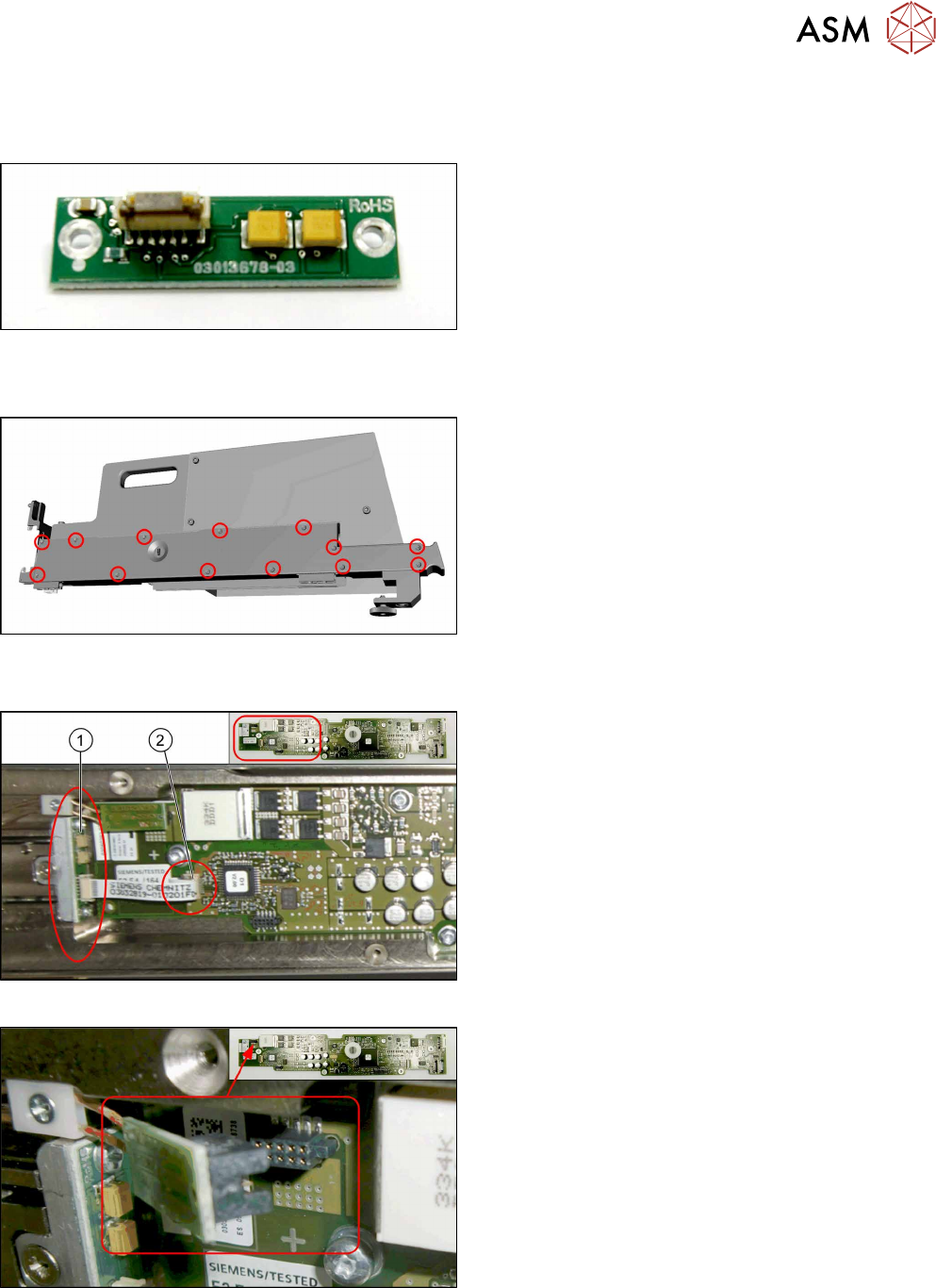

Fig.443: EDIF
●
FBG/EDIF secondary IrDA board
[03013678-xx]
Removal
Fig.444: Removing the cover
► Remove all cross-head screws marked in the pic-
ture.
► Remove the cover from the SIPLACE JTF-ML
Adapter.
Now you have access to the control board X adapter [03050293‑xx].
Fig.445: EDIF on control board X adapter
1. EDIF [03013678-xx]
2. Connector X3 for ribbon cable on control board X
adapter
Fig.446: Disconnecting X1
► Disconnect the X1 plug.
