14 JEDEC Tray Feeder 14.2 SIPLACE JTF-ML2 312 Service Manual SIPLACE TX Series 06/2017
14 JEDEC Tray Feeder
14.2 SIPLACE JTF-ML2
Service Manual SIPLACE TX Series 06/2017 311
14.2 SIPLACE JTF-ML2
► For more information about the SIPLACE JTF-ML2, read the following documents:
– User manual SIPLACE JTF-ML2 [EN:00198365‑xx]
– Service manual SIPLACE JTF-ML2 [EN:00198377‑xx]
14.2.1 SIPLACE JTF-ML2 - Overview

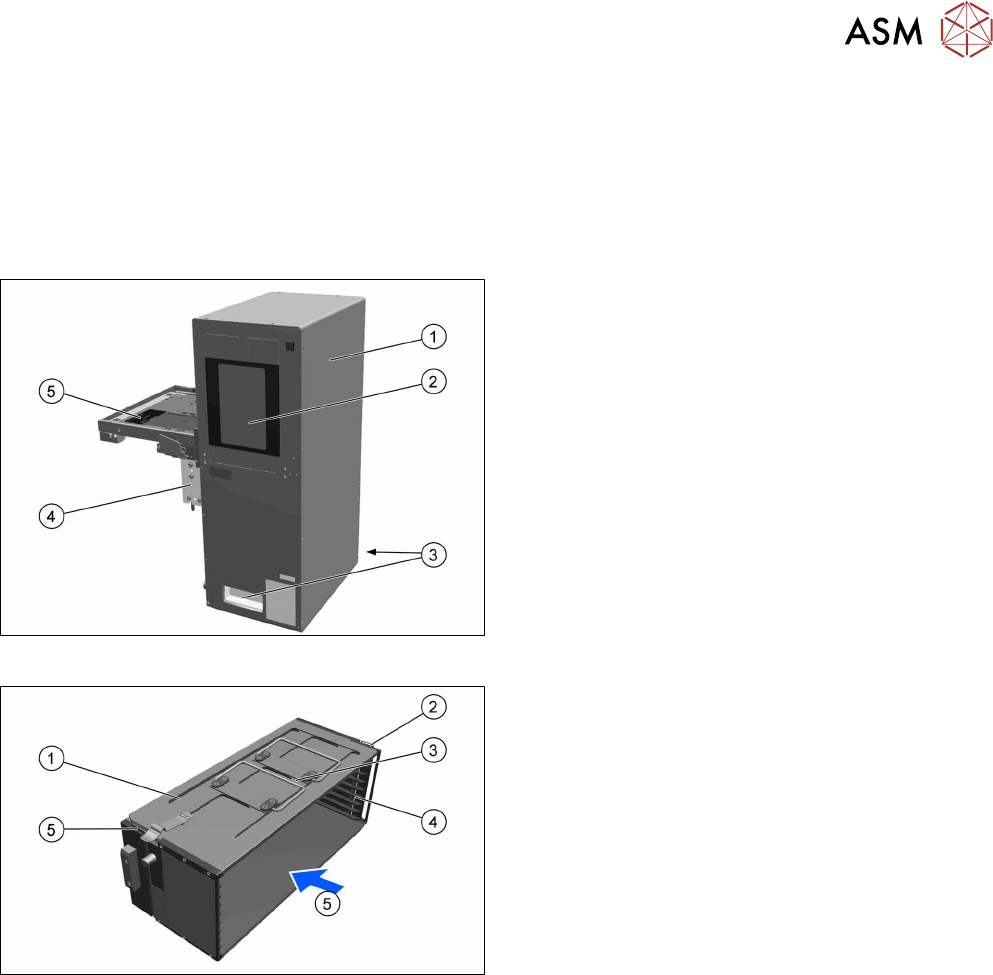

Fig.463: SIPLACE JTF-ML2
1. SIPLACE JTF-ML2
2. Door
3. Handles
4. SIPLACE JTF-ML2 adapter
5. Pick position
Fig.464: Cassette for SIPLACE JTF-ML2
1. Cassette for SIPLACE JTF-ML2
2. Transportation locks (2x)
3. Handles
4. Guides for JEDEC trays
5. Loading direction
14 JEDEC Tray Feeder
14.2 SIPLACE JTF-ML2
312 Service Manual SIPLACE TX Series 06/2017
15 Vacuum Pump
14.2 SIPLACE JTF-ML2
Service Manual SIPLACE TX Series 06/2017 313
15 Vacuum Pump
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
Removal / installation
► Read the assembly instructions.
– Assembly instructions "Option Vacuum Pump SIPLACE TX Series" [DE+EN: 00198147‑xx]
