5 Pneumatic System 5.5 Replacing the Proportional Controller (Location 2) [03065425-xx] 82 Service Manual SIPLACE TX Series 06/2017
5 Pneumatic System
5.5 Replacing the Proportional Controller (Location 2) [03065425-xx]
Service Manual SIPLACE TX Series 06/2017 81

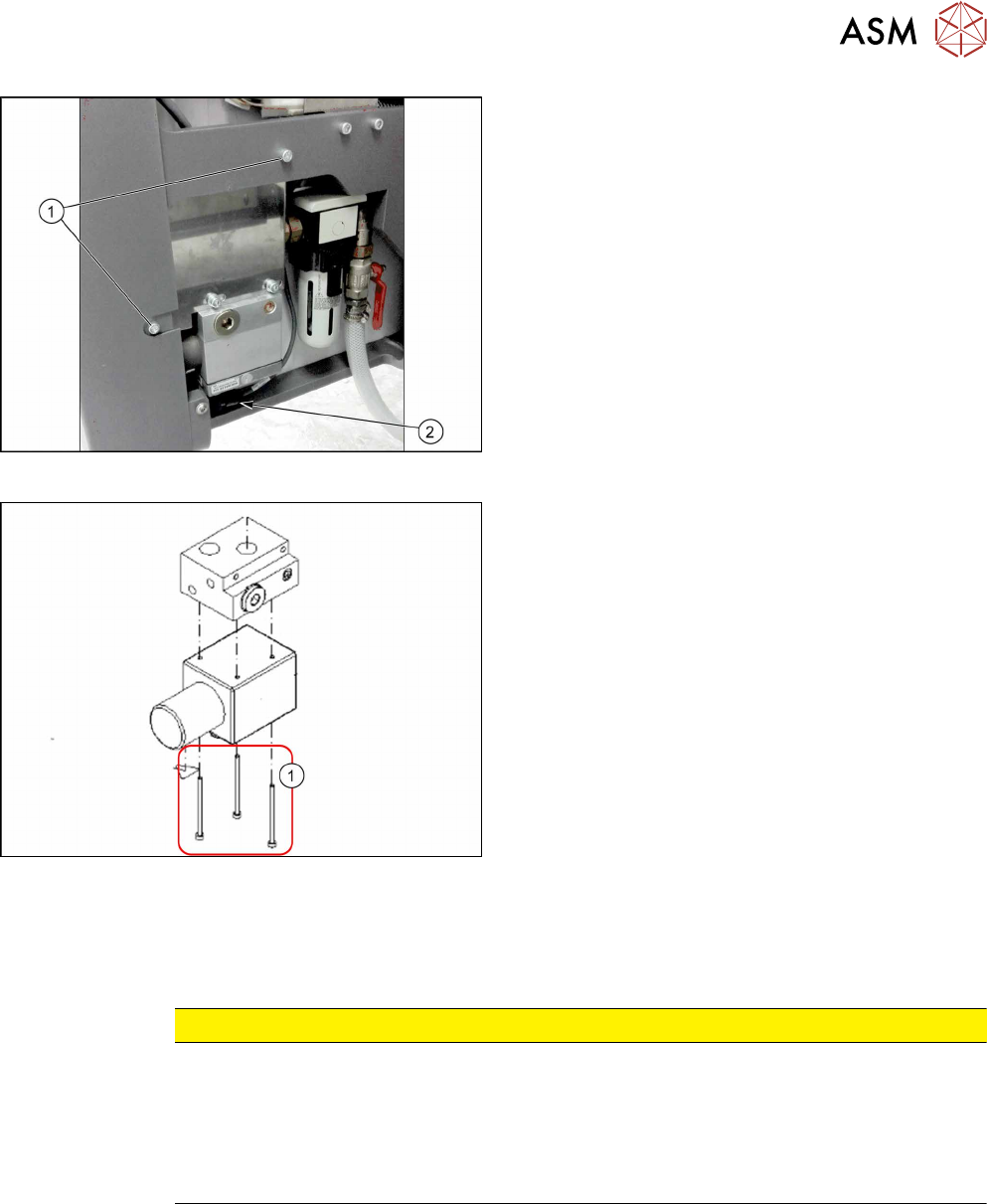

Fig.90: Proportional controller
All parts are mounted on a plate.
► Remove the two screws(1) fastening the plate.
ð Now you can move the plate for better access
to all parts.
► Unplug the electrical connections(2) to the pro-
portional controller.
Fig.91: Screws
► Remove the three screws(1) fastening the pro-
portional controller and then remove the propor-
tional controller.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
CAUTION
Installation instructions
► Clean the sealing rings and the adapter plate and insert these again. Observe the in-
structions in section 5.2 "Sealing the Pneumatic Screwed Connections" [}76] in con-
nection with this.
► Tighten the screws fastening the proportional controller with a torque of 2.0 to 2.5
Nm.
5 Pneumatic System
5.5 Replacing the Proportional Controller (Location 2) [03065425-xx]
82 Service Manual SIPLACE TX Series 06/2017
6 Gantries
6.1 Gantries - Overview
Service Manual SIPLACE TX Series 06/2017 83
6 Gantries
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
CAUTION
Use the correct blanking plugs
► Only use blanking plugs in the machine which match the manufacturer's compressed
air connection. A tight fit cannot be guaranteed for other blanking plugs.
► We recommend the use of blanking plugs made by Festo.
6.1 Gantries - Overview

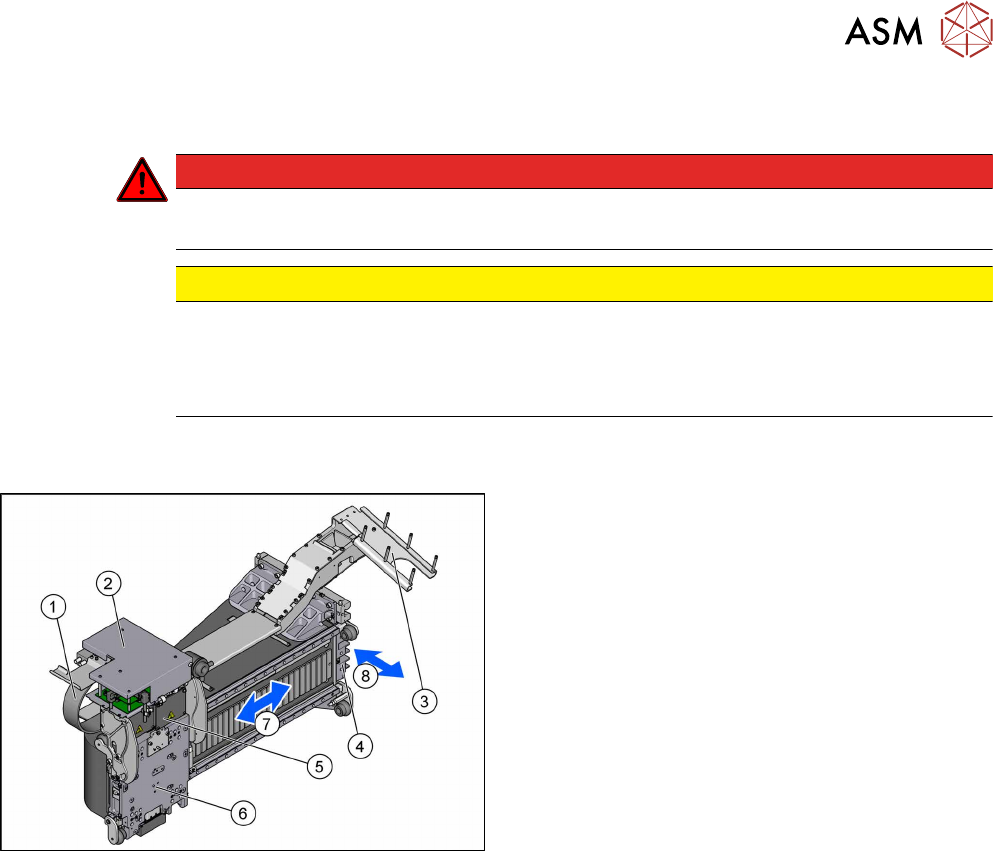

Fig.92: Gantry
1. Gantry trailing cables split for X axis
6.3 "Trailing Cable and Printed Circuit
Boards" [}96]
2. Head boards complete (under the cover)
6.4 "MHCU, Boards and Camera" [}113]
3. Y axis trailing cable
6.3 "Trailing Cable and Printed Circuit
Boards" [}96]
4. Y drive (primary)
5. MHCU
6.4 "MHCU, Boards and Camera" [}113]
6. Head plate with X drive/primary drive
7. X axis
6.2 "X and Y Axis" [}84]
8. Y-Axis
6.2 "X and Y Axis" [}84]
