Contents
KW1-0607

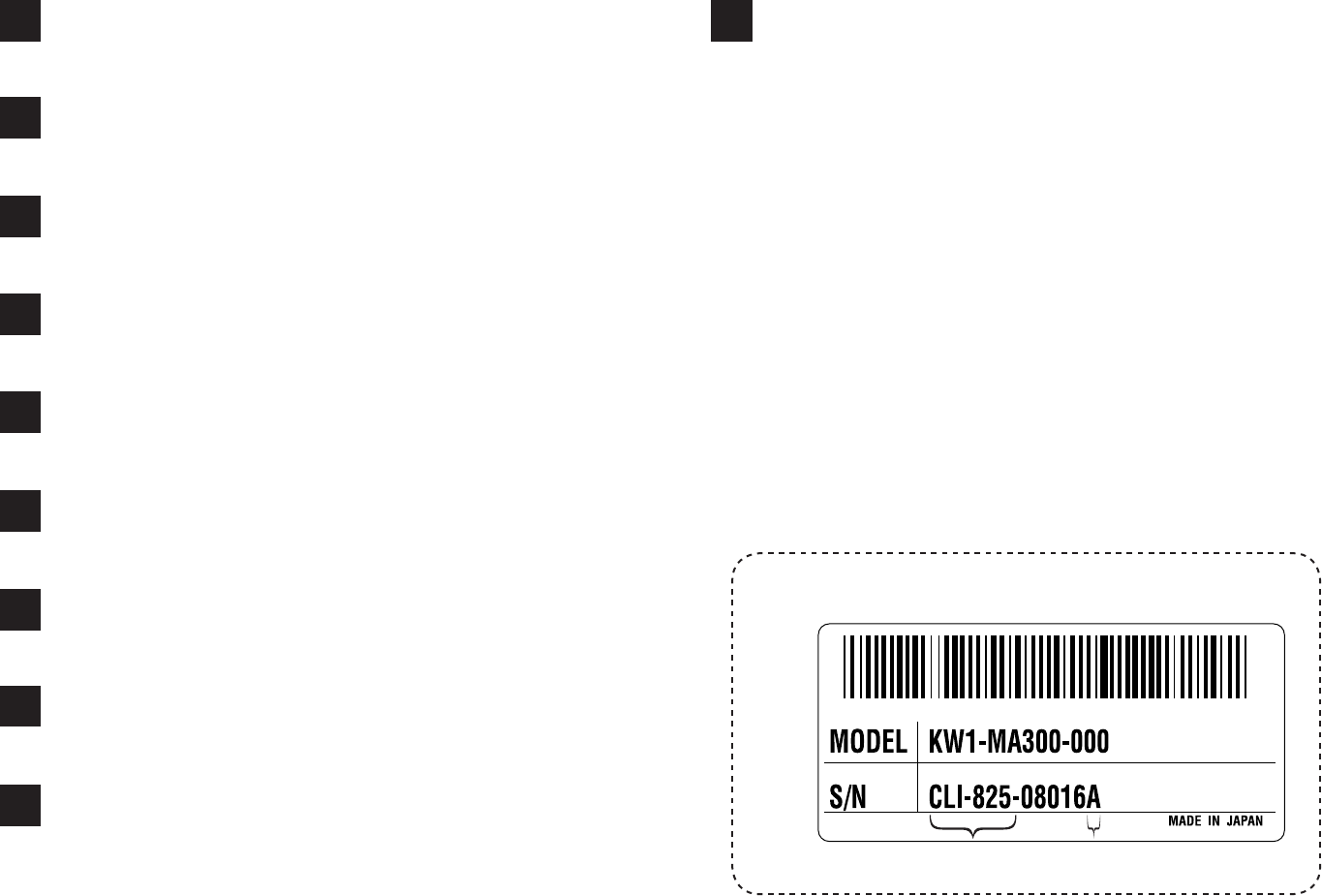

NOTE:Serial No.Seal
Kind of Feeder
Type
10 7inch Reel Bracket Kit
................ 10-1
(Option)
1 CLI-822-A
................................ 1-1~1-6
(IT 0402 15in KW1-MA200-00)
2 CLI-823-A
................................ 2-1~2-6
(IT 0603 15in KW1-MA300-01)
3 CLI-825-A
................................ 3-1~3-6
(IT 1005 15in KW1-MA500-01)
4 CLI-82E-A
................................ 4-1~4-6
(IT 2mm-pich emboss 15in KW1-MA600-01)
5 CLI-84-A
.................................. 5-1~5-6
(IT 4mm-pich 15in KW1-MA100-01)
6 CLI-84E-A
................................ 6-1~6-6
(IT 4mm-pich emboss 15in KW1-MA400-01)
7 CLI-12
...................................... 7-1~7-6
(KW1-MAA00-01)
8 CLI-16
...................................... 8-1~8-6
(KW1-MAB00-02)
9 CLI-IT Option
................................ 9-1
KW1-MA310-000
Continued on
Page 1-4,1-5
KW1-M112A-000
KW1-M1320-000
K87-M112L-100
No. Part No. Part Name Q'ty Remarks Change Compati.
KW1-MA310-000
Body Assy
1
K87-M112L-100 Sprocket Axis Assy
1
KW1-M112A-000 Racking Lever Assy 1
KW1-M1320-000 Sprocket Assy 1
1
2 KW1-M1112-000 Knock Pin (Front) 1 *Attention
3 KW1-M1113-000 Knock Pin (Rear) 1 *Attention
4
5
6
7
8 KW1-M131E-000 Spring 1
9
10
11 K87-M111H-200 Back Stopper 1
12 KW1-M111A-000 Spring 1
13 K87-M111B-000 Back Stopper Axis 1
14 K87-M111C-000 Plane Washer 1
15
16
17
18
19 K87-M112D-100 Coil Spring 1
20
21
22 K87-M111D-000 Push Pin 1
23 K87-M111F-100 Stopper Pin 1
24 K87-M111G-100 Push Pin 1
25 K87-M111P-000 Screw,Flat Head+ 1
26 K87-M111X-000 Screw,Set 1
27 K87-M111R-000 Screw,Set 5
28
29 KW1-M154V-000 Plate 1
30 K87-M11BA-000 Screw , Flat Head+ 1
31
KW1-MA1C2-000
Bracket 1
32
KW1-MA2CX-000 RFID Chip & Serial No. Sticker
1
33 K87-M1115-000 Circular Rivet 2 *Attention
KW1-1201
1
1
BODY & RACHET Unit
CLI-822
CLI-823 (A type) 8mm-2P(0603)
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M1540-001
KW1-M114A-000
KW1-M194G-000
No. Part No. Part Name Q'ty Remarks
KW1-M194G-000 Magnet Kit Assy 1
KW1-M1540-001 Tape Guide Assy 1
KW1-M114A-000 Hand Lever Assy 1
1 KW1-M1177-000 Main Arm 1
2
3
4
5 KW1-M114N-000 Guide Axis 1
6
7
8 KW1-M116K-000 Lever Axis 1
9
10
11
12
13 K87-M111C-000 Plane Washer 2
14 K87-M1181-000 Rod Connect 1
15 K87-M1546-000 Adjust Plate 1
16
17 K87-M1184-000 Connect Pin 1
18 KW1-M1185-001 Multi Cylinder 1
19 KW1-M111L-001 Barb Connector 2
20 K87-M111M-000 Gasket 2
21 KW1-M11B1-000 Air Hose (70mm) 1
22 K87-M11BF-000 Screw,Flat Head+IB 2
23 K87-M1547-000 Screw,Truss Head 2
24 K87-M1548-000 Plane Washer 2
25 KW1-M11B6-000 Bolt,Socket Head SW 2
26 K87-M11B9-000 Circlip E 1
27
28
29
30 KW1-M194U-000 Screw 1
KW1-0911
1
2
TAPE GUIDE & AIR CYLINDER Assy CLI-822
CL-822(D type) 8mm-2P (0402)
