SM482_TRM(Ver6.9_CS17.04) - 第102页
Page HANWHA TECHWIN 98 SM482(L) Electric Device Ass’y(3/4) CAN FEEDER BOARD 6 7 CAN CON VEYOR BOAR D 18 25 19 20 23 21 22 11 12 1 2 4 3 26 27 9 8 5 10 13 17 24 Option
Page
HANWHA TECHWIN
97
SM482(L)
Electric Device Ass’y(2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003542A CABLE ASSY INLINE_IN_OUT 1
2 EP07-900027 MAIN CIRCUIT BREAKER[GV2-ME20] 1
3 EP21-900008 PANEL_GV2_AF 1
4 J70521076B POWER_PANEL_R J70521076B 1
5 AM03-003573A CABLE ASSY-LAN_EXT 1
6 FC30-002551A GROUND TERMINAL [J7152027A] 1 J7152027A
7 CD04-900026 MINI_KEYBOARD 5510UH 2
8 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2
9 CD04-900012 OPTICAL_MOUSE 2
10 J90601023B TEACHING_BOX 1
11 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900126
Page
HANWHA TECHWIN
98
SM482(L)

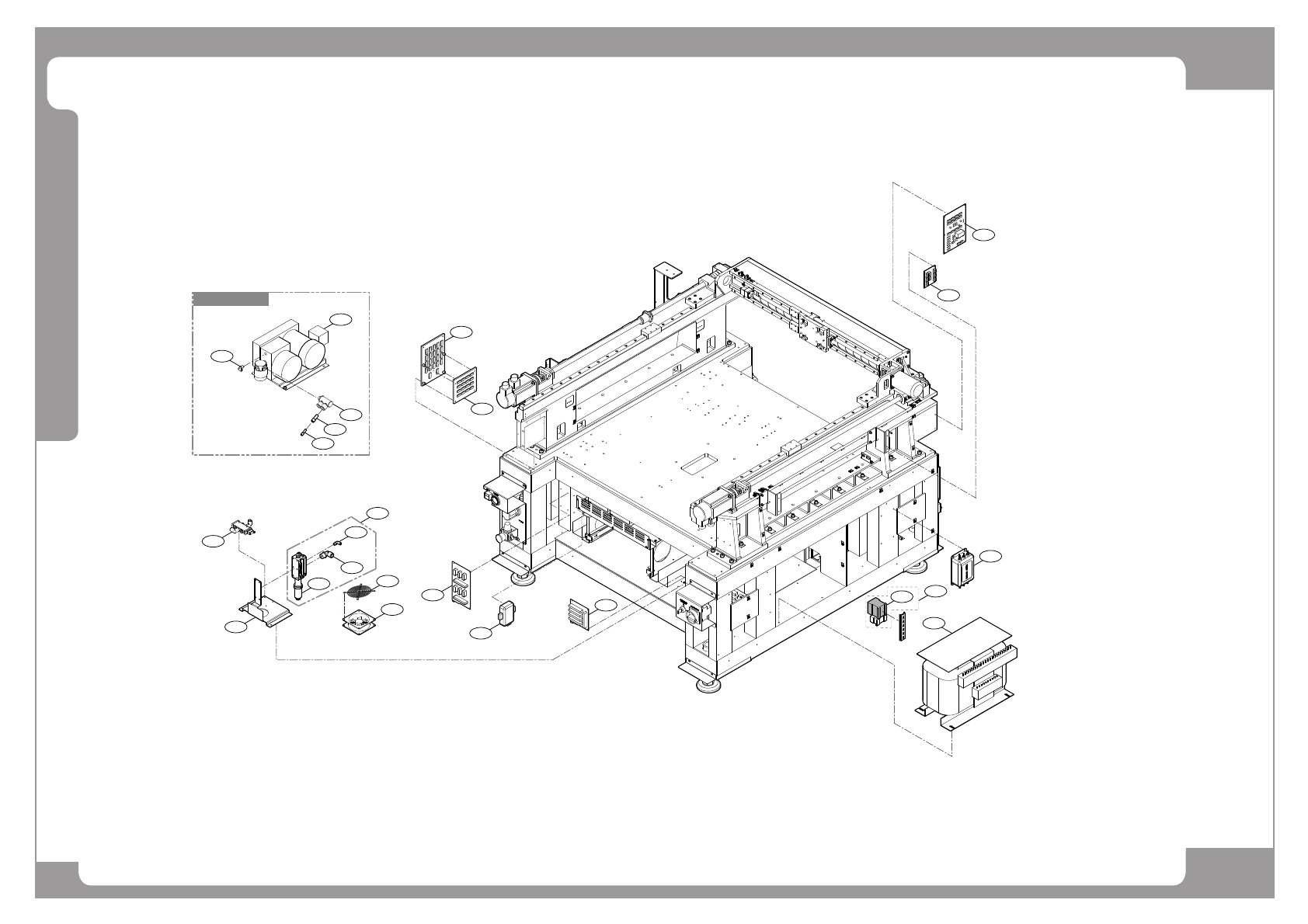

Electric Device Ass’y(3/4)
CAN FEEDER BOARD
6
7
CAN CON
VEYOR
BOAR
D
18
25
19
20
23
21
22
11
12
1
2
4
3
26
27
9
8
5
10
13
17
24
Option
Page
HANWHA TECHWIN
99
SM482(L)
Electric Device Ass’y(3/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015154B ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 AM03-000900A
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 EP07-002062 FILTER,ELECTRIC-NOISE_TNS-5020;3P,20A 1 EP07-901542 / J91671267A / AM03-019057A
4 EP23-000028A TRANSFORMER-3PHASE, 3.5KVA 1 EP23-000012A
5 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1
6 EP06-901169 MONITOR_DISTRIBUTOR NM-V21 1
7 AM06-000359A ASSY,PCB SMD-SM400_VISION_IF_BD 1
8 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
9 AM03-000819C ASSY,BOARD-FEEDER IO BOARD ASSY 1 AM03-000819B
10 FC09-002234B BRACKET-VAC_GEN_BKT;SPCC,t2 1 FC09-002234A
11 HP11-000074 INJECTOR-P5010.00.AJ.01. (Pi48-3) 1
12 HP06-900041 JOINT KQ2L04-01S 1
13 HP14-000978 SOL-VAVLEVUVG_L18_M52 1
17 HP06-000277 FITTING-KQ2L12-04S;FITTING,R1/2, Rc1/2 1 OPTION
18 HP04-900011 FINGER_GUARD 109-019E 1 OPTION
19 HP11-001019 VACUUM_PUMP KHA400A-301-G1 1 HP11-000059 OPTION
20 HP06-900104 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1 FC28-000105 OPTION
21 HP06-900046 JOINT KQ2R04-08 1 OPTION
22 HP06-001070 FITTING-FITTING KQ2VT12-03S;ELBOW 1 HP06-000250 OPTION
23 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1 OPTION
24 EP07-901508 COOLING FAN[4715MS-22T-B50] 1 OPTION
25 AM03-007648A ASSY,AIR-PUMP_SUB_ASSY 1
26 EP07-901338 SD-Q11 DC24V1b 1
27 EP07-901339 MSOD-Q11CX(KP)0.4kw(2.1A)200V DC24V 1
