SM482_TRM(Ver6.9_CS17.04) - 第104页
Page HANWHA TECHWIN 100 SM482(L) Electric Device Ass’y(4/4) 1 5 7 8 6 2 4 3 9 10 11
Page
HANWHA TECHWIN
99
SM482(L)
Electric Device Ass’y(3/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015154B ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 AM03-000900A
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 EP07-002062 FILTER,ELECTRIC-NOISE_TNS-5020;3P,20A 1 EP07-901542 / J91671267A / AM03-019057A
4 EP23-000028A TRANSFORMER-3PHASE, 3.5KVA 1 EP23-000012A
5 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1
6 EP06-901169 MONITOR_DISTRIBUTOR NM-V21 1
7 AM06-000359A ASSY,PCB SMD-SM400_VISION_IF_BD 1
8 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
9 AM03-000819C ASSY,BOARD-FEEDER IO BOARD ASSY 1 AM03-000819B
10 FC09-002234B BRACKET-VAC_GEN_BKT;SPCC,t2 1 FC09-002234A
11 HP11-000074 INJECTOR-P5010.00.AJ.01. (Pi48-3) 1
12 HP06-900041 JOINT KQ2L04-01S 1
13 HP14-000978 SOL-VAVLEVUVG_L18_M52 1
17 HP06-000277 FITTING-KQ2L12-04S;FITTING,R1/2, Rc1/2 1 OPTION
18 HP04-900011 FINGER_GUARD 109-019E 1 OPTION
19 HP11-001019 VACUUM_PUMP KHA400A-301-G1 1 HP11-000059 OPTION
20 HP06-900104 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1 FC28-000105 OPTION
21 HP06-900046 JOINT KQ2R04-08 1 OPTION
22 HP06-001070 FITTING-FITTING KQ2VT12-03S;ELBOW 1 HP06-000250 OPTION
23 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1 OPTION
24 EP07-901508 COOLING FAN[4715MS-22T-B50] 1 OPTION
25 AM03-007648A ASSY,AIR-PUMP_SUB_ASSY 1
26 EP07-901338 SD-Q11 DC24V1b 1
27 EP07-901339 MSOD-Q11CX(KP)0.4kw(2.1A)200V DC24V 1
Page
HANWHA TECHWIN
100
SM482(L)

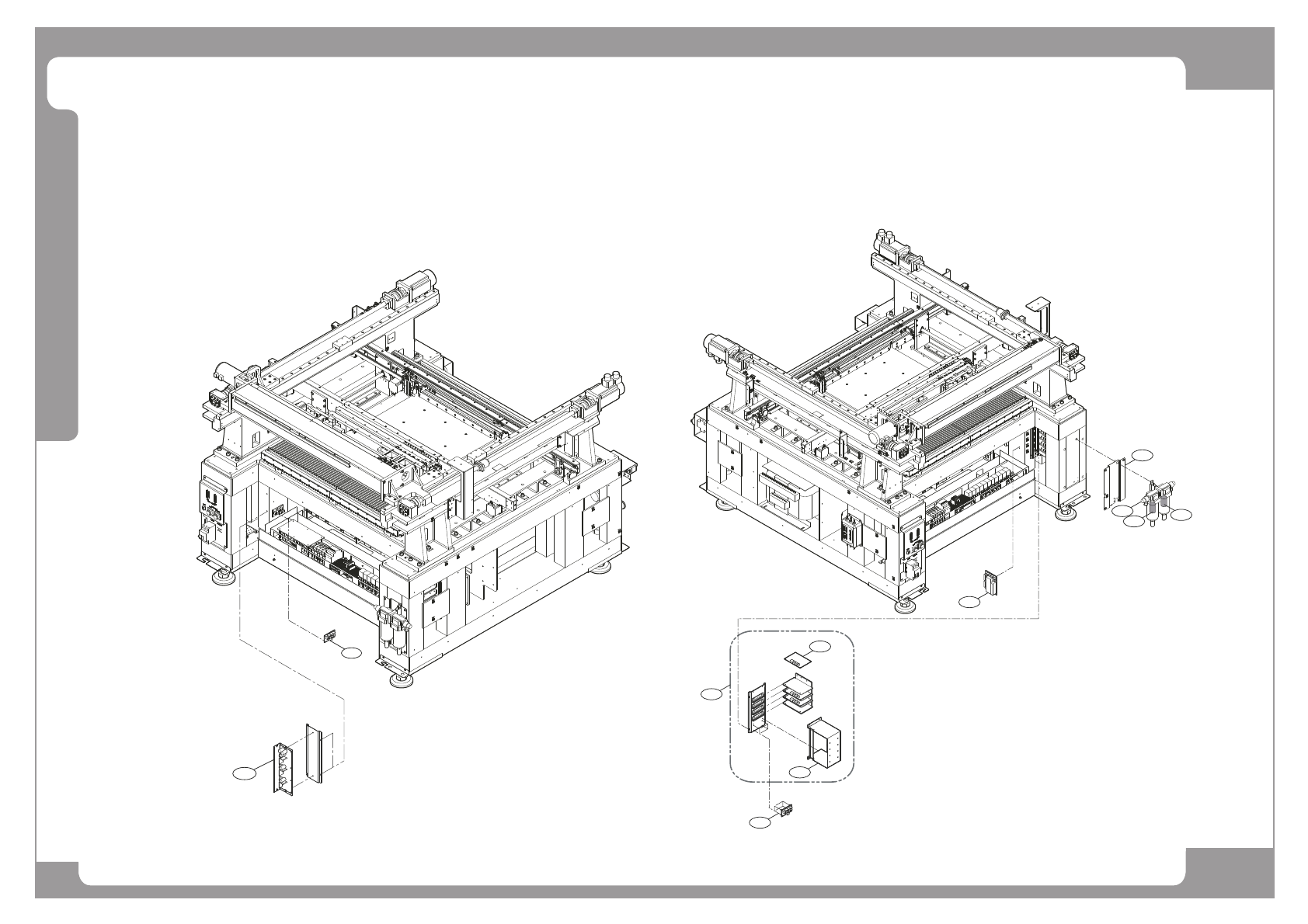

Electric Device Ass’y(4/4)
1
5
7
8
6
2
4
3
9
10
11
Page
HANWHA TECHWIN
101
SM482(L)
Electric Device Ass’y(4/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006356A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1
2 EP06-000219 SERVO CONTROL-DRIVE-STEP_MOTOR_DRIVER_4A 2 EP06-000219
3 J91741023A SM411_CONVEYOR_PWR_BOARD 1
4 J70521023B MIST_PANEL 1
5 AM03-014556A MIST_SEPARATOR_ASSY 1 J90581007B
6 1
7 1
8 1
9 HP04-900020 FILTER ELEMENT[AF40P-060S] 1
10 HP04-900031 FILTER_ELEMENT AFM40P-060AS 1
11 J90511022A HEAD_R_MOTOR_DRIVER_ASSY 1
